Amtrol

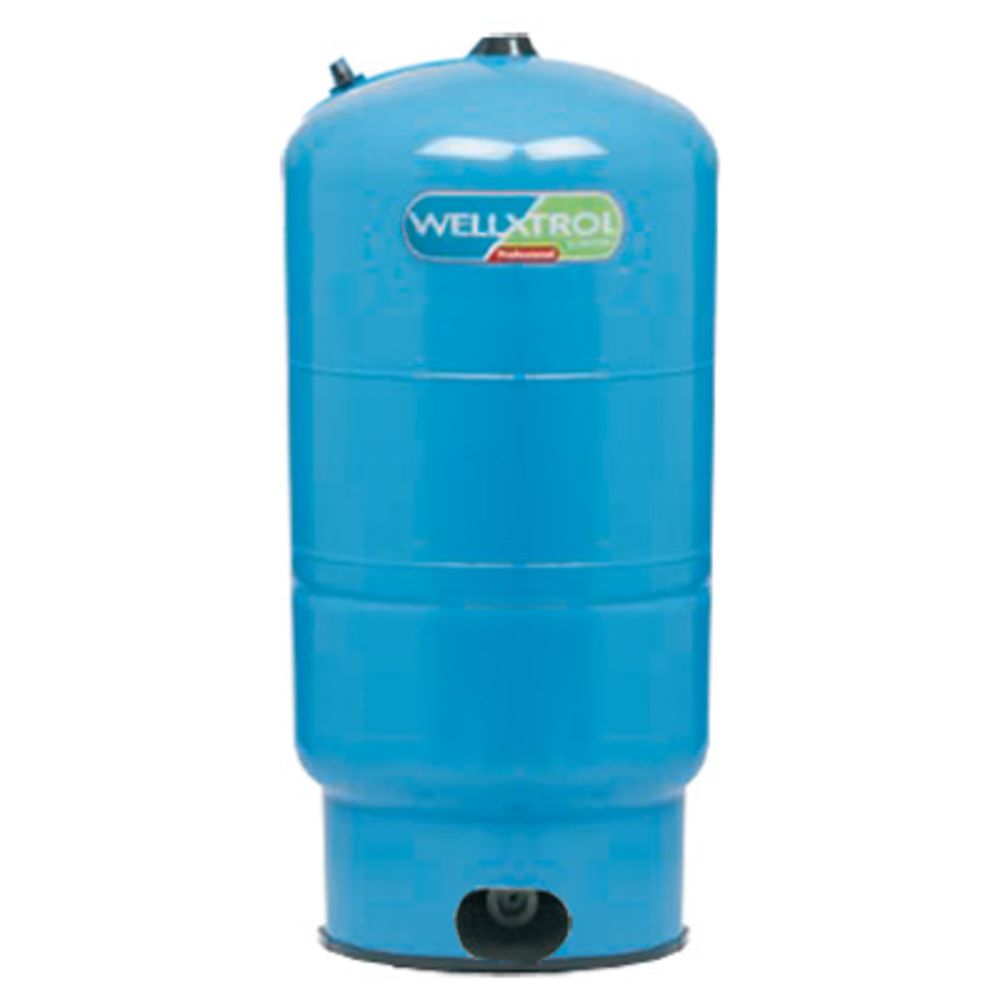

Amtrol Well-X-Trol WX-251 Well Pressure Tank 62 gal

Part Number: WX-251

Alt. Part Number: 145S10

In Stock

out of stock

In Stock

$781.21


The Well-X-Trol WX-251 well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-251 now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Features:
  • Heavy duty butyl diaphragm
  • Stainless steel system connection
  • Stainless steel air stem
  • Virgin polypropylene liner
  • 100% Helium tested
  • Drawdown 20/40 Setting: 24.9 gallons
  • Drawdown 30/50 Setting: 21.1 gallons
  • Drawdown 40/60 Setting: 18.2 gallons
  • 7 year warranty
  • NSF Standard 61 listed


Weight & Dimensions

Approx Weight

92 Lbs

Height W/ Stand

46-3/4 Inches

Details

Drawdown Volume

24.9 Gallons @ 20/40 Setting, 21.1 Gallons @ 30/50 Setting, 18.2 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

22 Inches

Diaphragm Materials

Butyl Rubber

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

62 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 years


Amtrol

Amtrol





The Well-X-Trol WX-251 well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-251 now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Features:
  • Heavy duty butyl diaphragm
  • Stainless steel system connection
  • Stainless steel air stem
  • Virgin polypropylene liner
  • 100% Helium tested
  • Drawdown 20/40 Setting: 24.9 gallons
  • Drawdown 30/50 Setting: 21.1 gallons
  • Drawdown 40/60 Setting: 18.2 gallons
  • 7 year warranty
  • NSF Standard 61 listed

Weight & Dimensions

Approx Weight

92 Lbs

Height W/ Stand

46-3/4 Inches

Details

Drawdown Volume

24.9 Gallons @ 20/40 Setting, 21.1 Gallons @ 30/50 Setting, 18.2 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

22 Inches

Diaphragm Materials

Butyl Rubber

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

62 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 years
