Features:
- Heavy duty butyl diaphragm
- Includes DuraBase Composite Stand
- DuraBase Stand is UV resistant, rugged and will never corrode
- Stainless steel system connection
- Stainless steel air stem
- Virgin polypropylene liner
- 100% Helium tested
- Drawdown 20/40 Setting: 17.7 gallons
- Drawdown 30/50 Setting: 15 gallons
- Drawdown 40/60 Setting: 12.9 gallons
- 7 year warranty
- NSF Standard 61 listed
Weight & Dimensions
Height W/ Stand | 36" |
Weight (lbs) | 69 |
Details
Air Valve Stem Location | Top |
Application | Pressure Pump Tank |
Diaphragm Materials | Butyl Rubber |
Drawdown Volume | 17.7 Gallons @ 20/40 Setting, 15 Gallons @ 30/50 Setting, 12.9 Gallons @ 40/60 Setting |
Inlet/Outlet Connection | 1-1/4" FPT |
Inlet/Outlet Location | Bottom |
Material Of Construction | Stainless Steel |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Size | 1-1/4" |
Tank Pre-Charge | 38 PSI |
Volume | 44 Gallons |
Connection Type | Female (FPT) |
Diameter | 22" |
Origin | USA |
Warranty & Certifications
Certifications | NSF Certified to Standard 61 |
Warranty | 7 years |
Product Videos

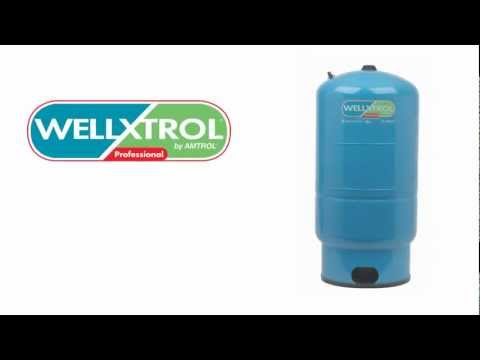

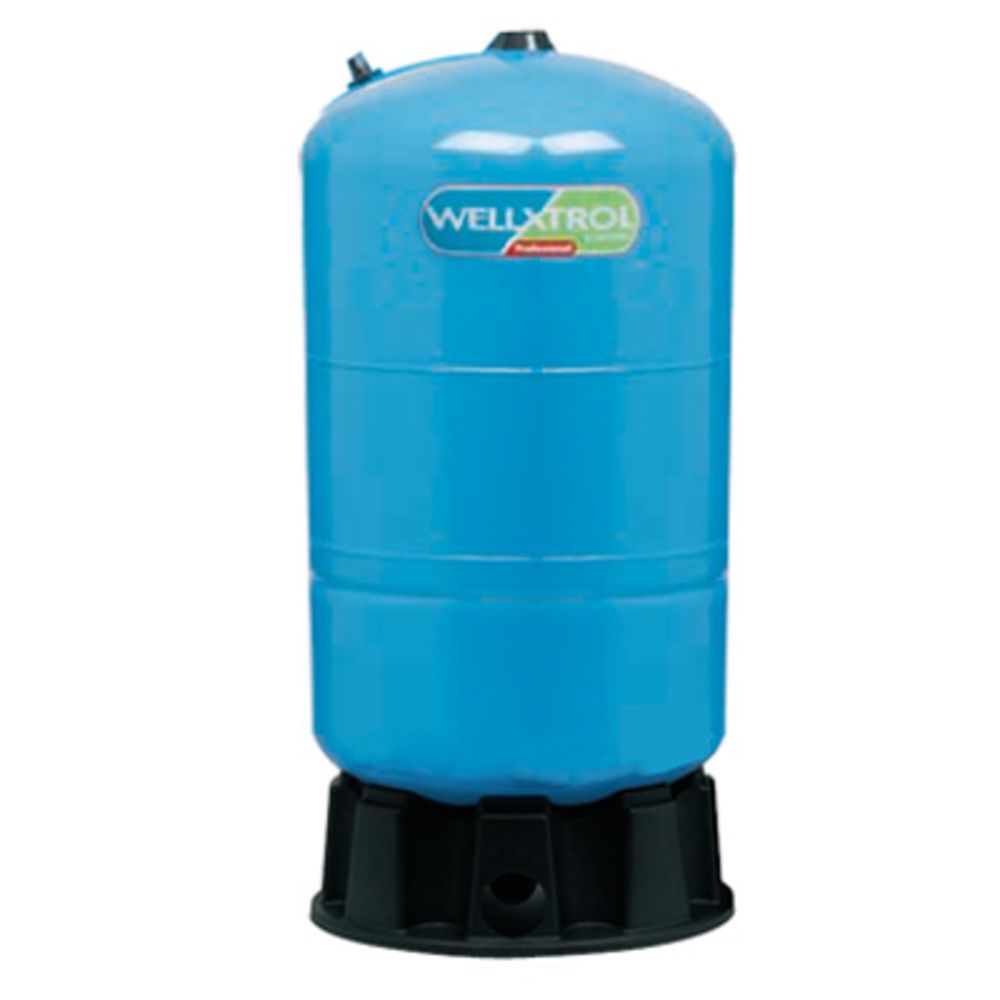

The Well-X-Trol WX-250D well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-250D now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.
Features:
- Heavy duty butyl diaphragm
- Includes DuraBase Composite Stand
- DuraBase Stand is UV resistant, rugged and will never corrode
- Stainless steel system connection
- Stainless steel air stem
- Virgin polypropylene liner
- 100% Helium tested
- Drawdown 20/40 Setting: 17.7 gallons
- Drawdown 30/50 Setting: 15 gallons
- Drawdown 40/60 Setting: 12.9 gallons
- 7 year warranty
- NSF Standard 61 listed
Weight & Dimensions
Height W/ Stand | 36" |
Weight (lbs) | 69 |
Details
Air Valve Stem Location | Top |
Application | Pressure Pump Tank |
Diaphragm Materials | Butyl Rubber |
Drawdown Volume | 17.7 Gallons @ 20/40 Setting, 15 Gallons @ 30/50 Setting, 12.9 Gallons @ 40/60 Setting |
Inlet/Outlet Connection | 1-1/4" FPT |
Inlet/Outlet Location | Bottom |
Material Of Construction | Stainless Steel |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Size | 1-1/4" |
Tank Pre-Charge | 38 PSI |
Volume | 44 Gallons |
Connection Type | Female (FPT) |
Diameter | 22" |
Origin | USA |
Warranty & Certifications
Certifications | NSF Certified to Standard 61 |
Warranty | 7 years |
