Amtrol

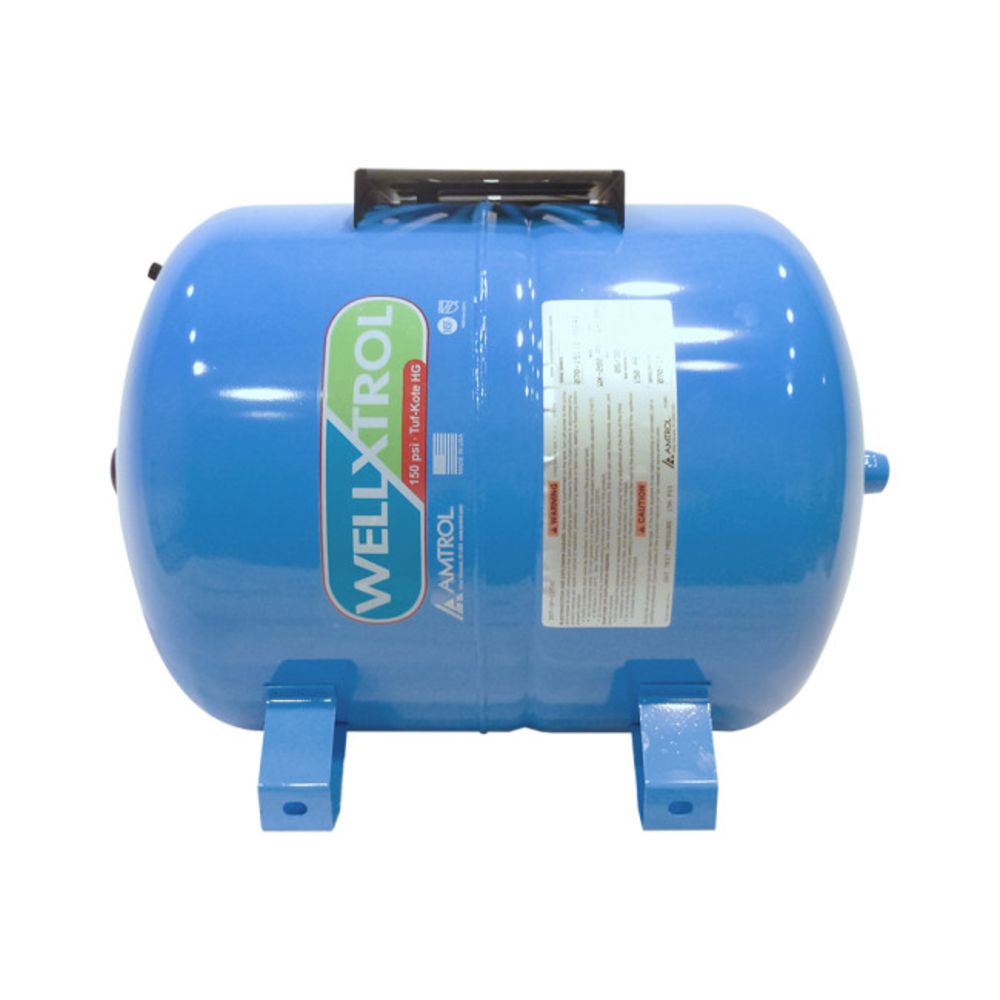

Amtrol Well-X-Trol WX-200-PS Well Pressure Tank 14 gal w/ Jet Pump Stand

Part Number: WX-200-PS

In Stock

out of stock

In Stock

$378.57


The Well-X-Trol WX-200-PS well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-200-PS now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service. Features:
  • Designed for jet pump applications
  • Universal deck kit included
  • Heavy duty butyl diaphragm
  • Stainless steel airstem
  • Virgin polypropylene liner
  • Drawdown 20/40 Setting: 5.6 gallons
  • Drawdown 30/50 Setting: 4.8 gallons
  • Drawdown 40/60 Setting: 4.1 gallons
  • 7 Year Warranty
  • NSF Standard 61 listed


Weight & Dimensions

Approx Weight

29 Lbs

Height W/ Stand

15-3/8 Inches

Details

Drawdown Volume

5.6 Gallons @ 20/40 Setting; 4.8 Gallons @ 30/50 Setting; 4.1 Gallons @ 40/60 Setting

Diameter

15-3/8 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

1" NPTM Stainless Steel

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Side

Inlet/Outlet Location

Side

Tank Pre Charge

38 PSI

Volume

14 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 years


Amtrol

Amtrol





The Well-X-Trol WX-200-PS well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-200-PS now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service. Features:
  • Designed for jet pump applications
  • Universal deck kit included
  • Heavy duty butyl diaphragm
  • Stainless steel airstem
  • Virgin polypropylene liner
  • Drawdown 20/40 Setting: 5.6 gallons
  • Drawdown 30/50 Setting: 4.8 gallons
  • Drawdown 40/60 Setting: 4.1 gallons
  • 7 Year Warranty
  • NSF Standard 61 listed

Weight & Dimensions

Approx Weight

29 Lbs

Height W/ Stand

15-3/8 Inches

Details

Drawdown Volume

5.6 Gallons @ 20/40 Setting; 4.8 Gallons @ 30/50 Setting; 4.1 Gallons @ 40/60 Setting

Diameter

15-3/8 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

1" NPTM Stainless Steel

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Side

Inlet/Outlet Location

Side

Tank Pre Charge

38 PSI

Volume

14 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 years
