Amtrol

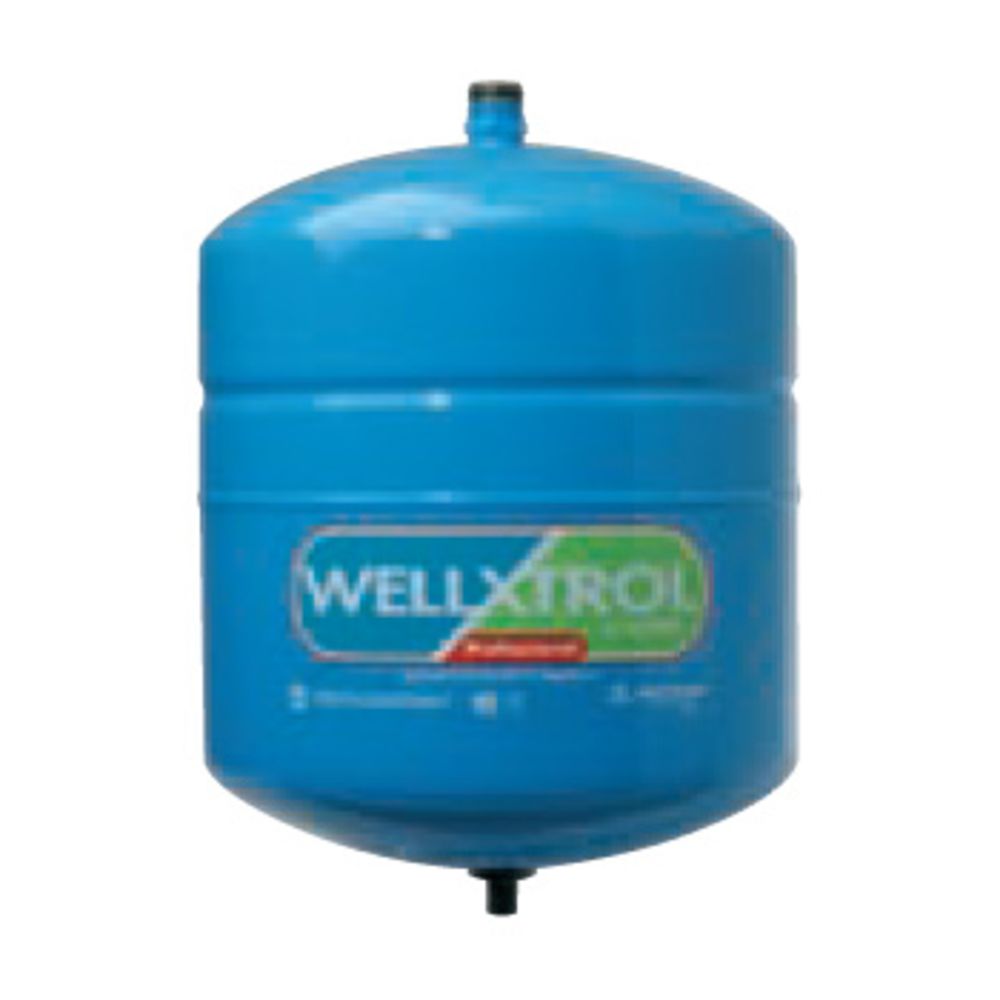

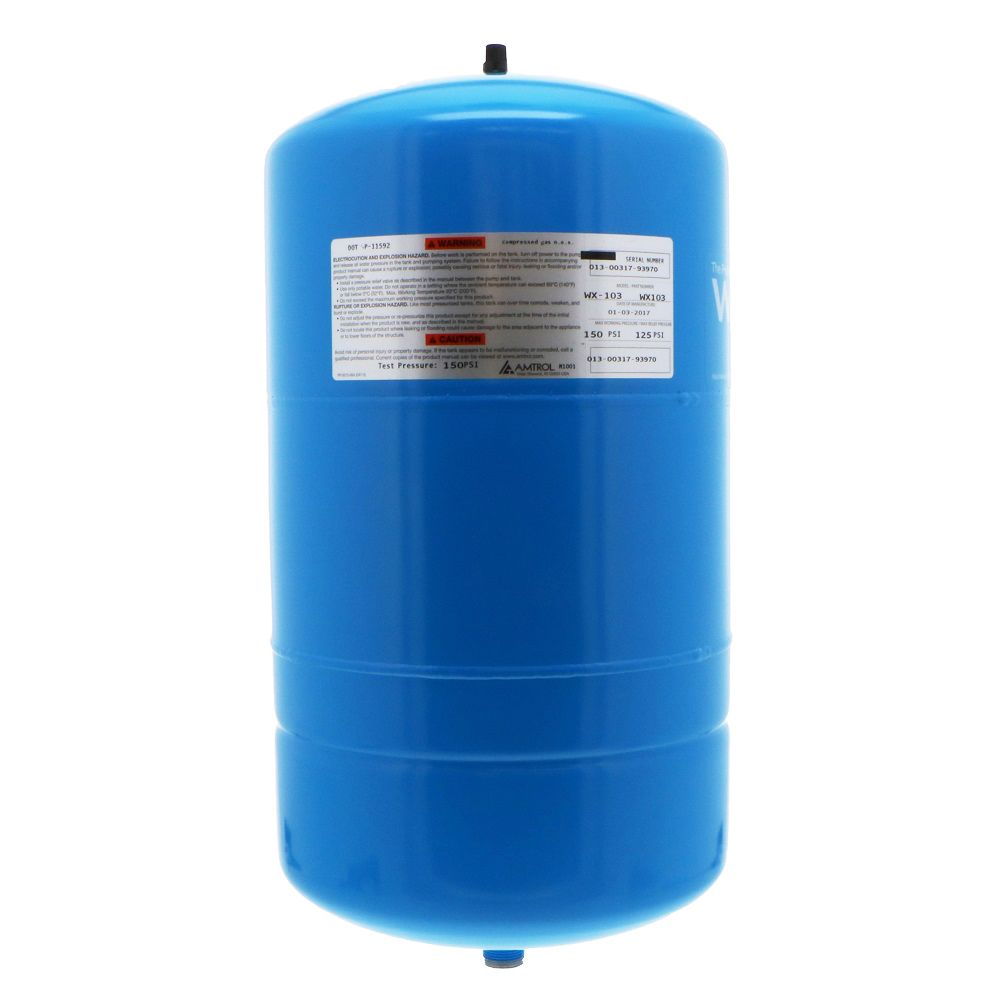

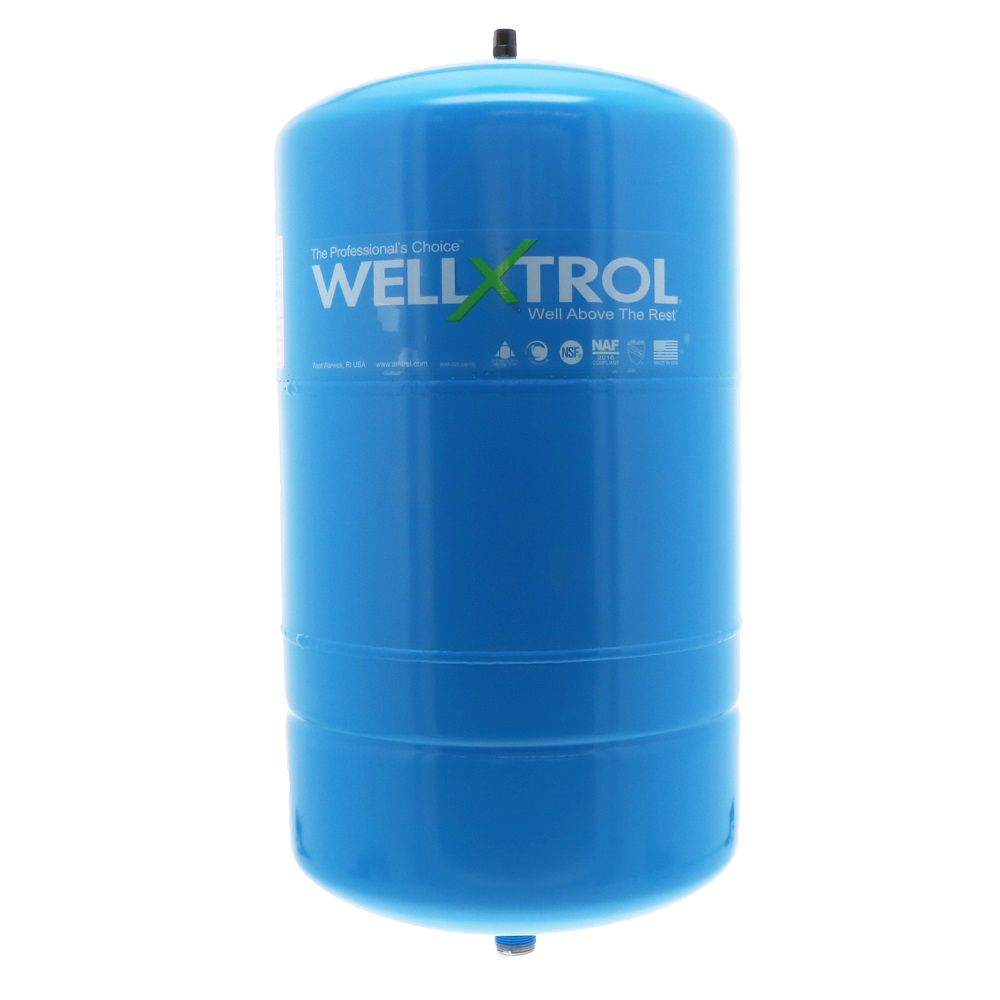

Amtrol Well-X-Trol WX-103 In-Line Well Pressure Tank 7.6 gal

Part Number: WX-103

In Stock

out of stock

In Stock

$169.43


The Well-X-Trol WX-103 in-line well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-103 now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Specifications:
  • In-Line design
  • Heavy duty butyl diaphragm
  • Stainless steel airstem
  • Virgin polypropylene liner
  • Drawdown 20/40 Setting: 3.1 gallons
  • Drawdown 30/50 Setting: 2.6 gallons
  • Drawdown 40/60 Setting: 2.2 gallons
  • 7 Year Warranty
  • NSF Standard 61 listed


Weight & Dimensions

Approx Weight

15 Lbs

Height W/O Stand

22-1/4 Inches

Details

Drawdown Volume

3.1 Gallons @ 20/40 Setting; 2.6 Gallons @ 30/50 Setting; 2.2 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

11 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

3/4" NPTM Stainless Steel

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

7.6 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 years


Amtrol

Amtrol





The Well-X-Trol WX-103 in-line well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-103 now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Specifications:
  • In-Line design
  • Heavy duty butyl diaphragm
  • Stainless steel airstem
  • Virgin polypropylene liner
  • Drawdown 20/40 Setting: 3.1 gallons
  • Drawdown 30/50 Setting: 2.6 gallons
  • Drawdown 40/60 Setting: 2.2 gallons
  • 7 Year Warranty
  • NSF Standard 61 listed

Weight & Dimensions

Approx Weight

15 Lbs

Height W/O Stand

22-1/4 Inches

Details

Drawdown Volume

3.1 Gallons @ 20/40 Setting; 2.6 Gallons @ 30/50 Setting; 2.2 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

11 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

3/4" NPTM Stainless Steel

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

7.6 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 years
