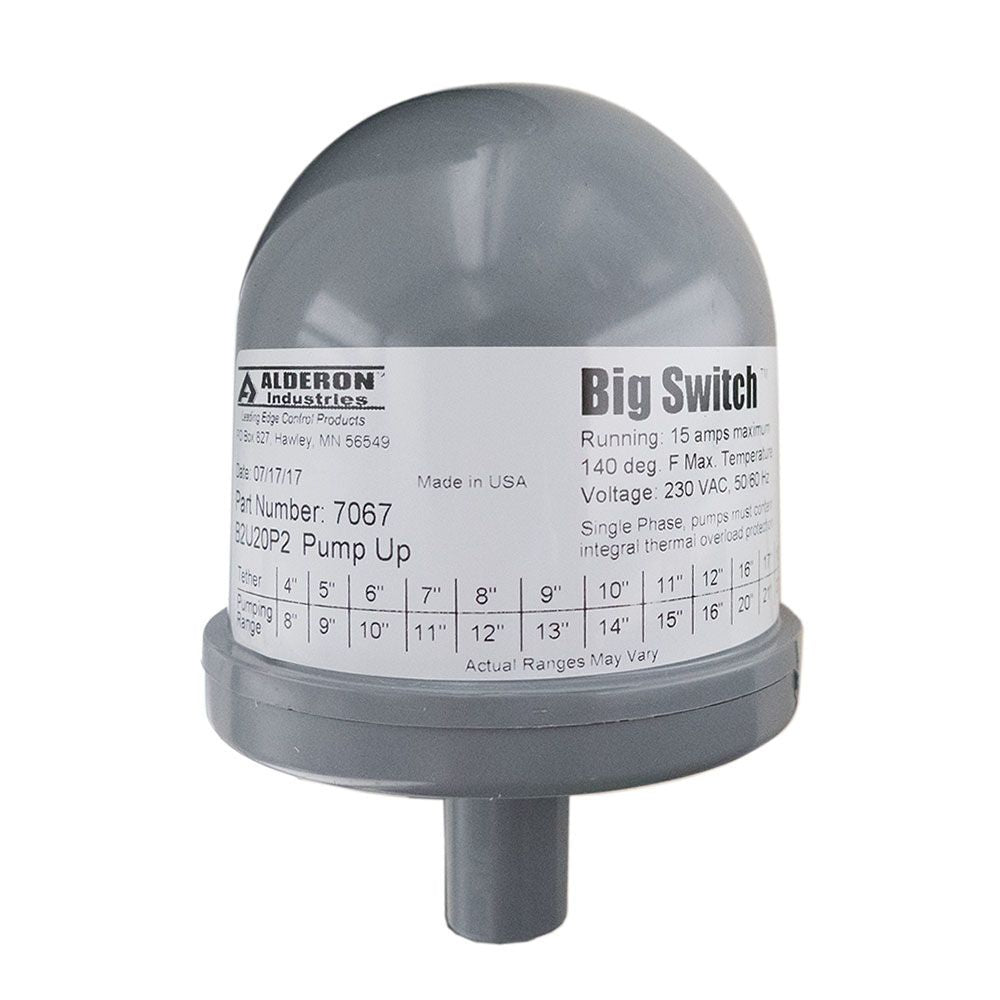

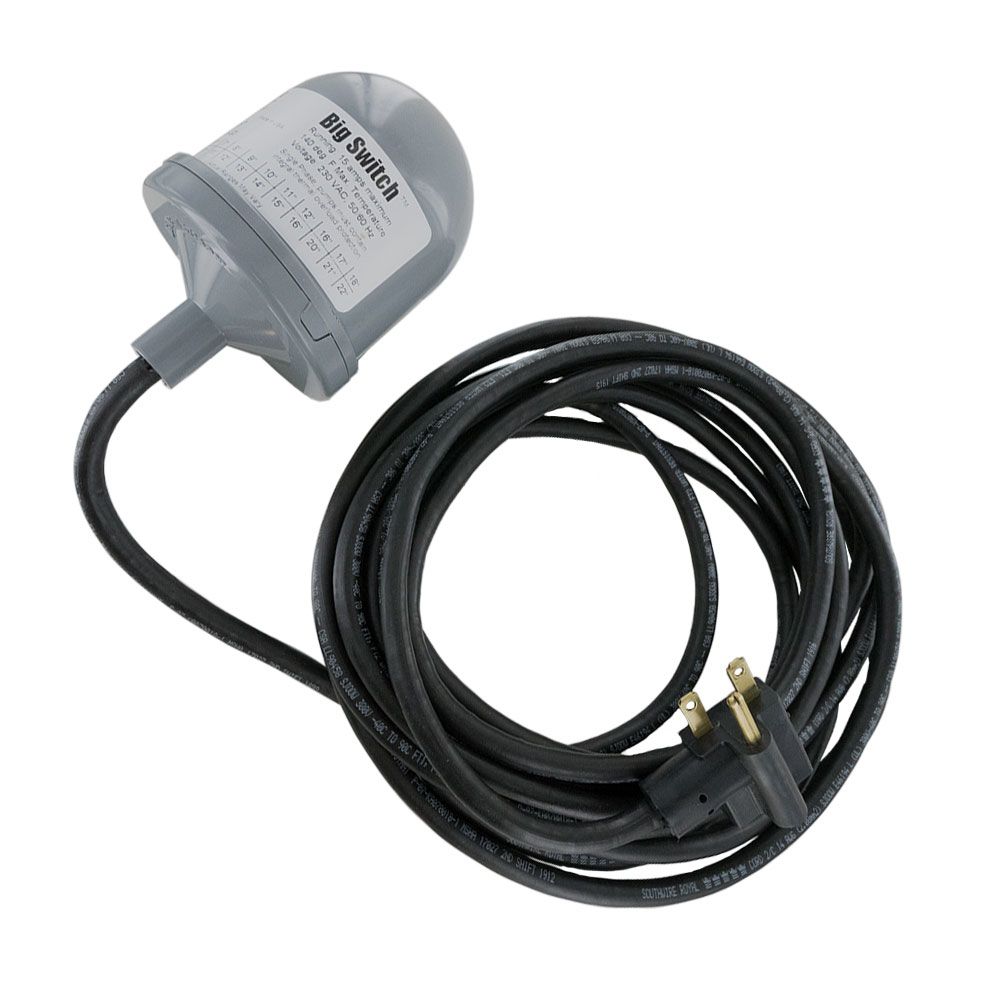

Alderon 200919 Pump Up Series Float Switches

Part Number: 200919

In Stock

out of stock

In Stock

$84.99

Intended Use:
Big Switch Float Switches are rated at 15 amps, which allows the switches to be used on both small and large horsepower pumps.  Normally Closed (Pump Up) Switch turns on (closes) when the float is 45 degrees below horiztonal, turning on the pump, and turns off (opens) when the float drops 45 degrees above horizontal, turning off the pump.

Features:
  • Amperage: 15 amps @ 220V
  • Operating Temperature - 0 to 140 °F
  • Float housing: 3.25" x 4.50''
  • Housing: High Impact PVC
  • Switching Differential: 90 degress Pump Range 8-22 inches
  • Cable Length: 20 ft
  • Certifications: UL Listed
  • Warranty: 3 Years
  • Patented Mechanical Design
  • PVC Float Housing
  • Heavy Duty Cable
  • Omni-Directional


Weight & Dimensions

Approx Length (Inches)

4.5"

Cord Length

20'

Approx Depth

3.25"

Details

Amps

15 A

Housing Material

PVC

Operating Temperature Range

0-140°F

Voltage

220 V

Warranty & Certifications

Certifications

UL Listed

Warranty

3 Year
