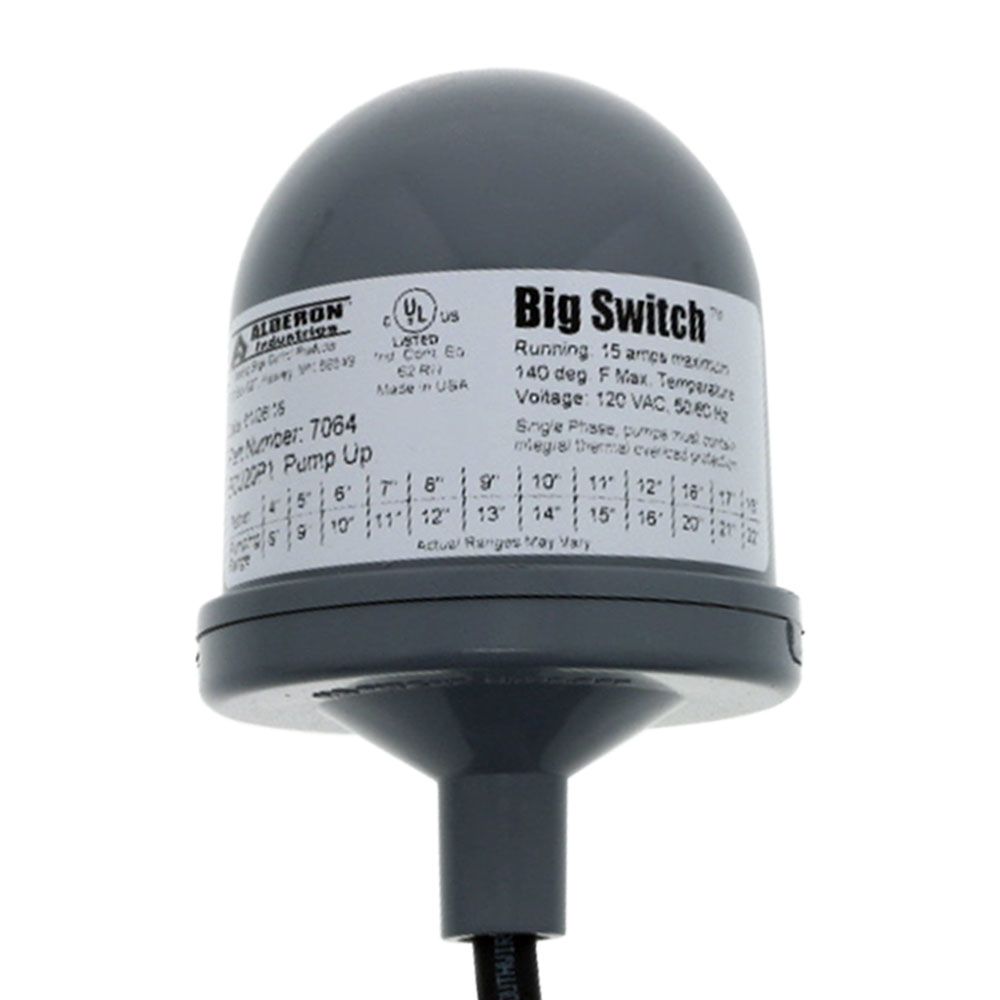

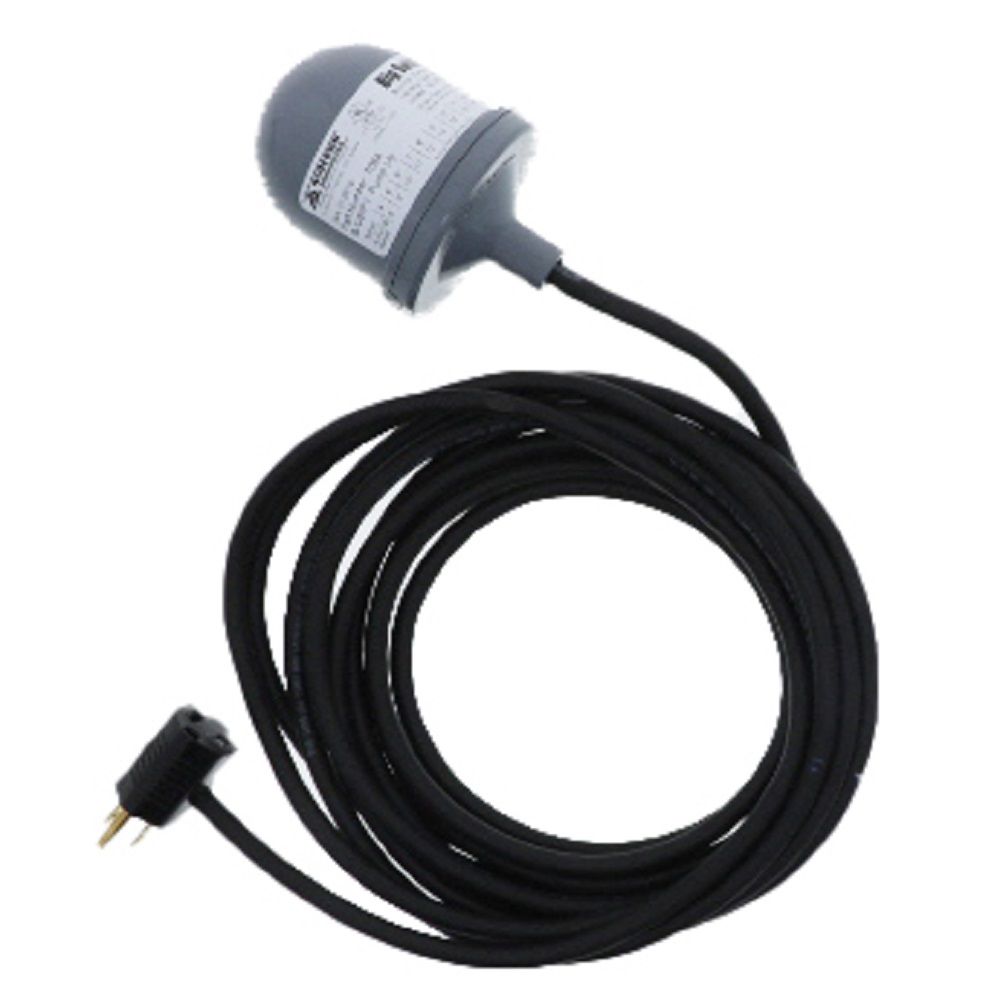

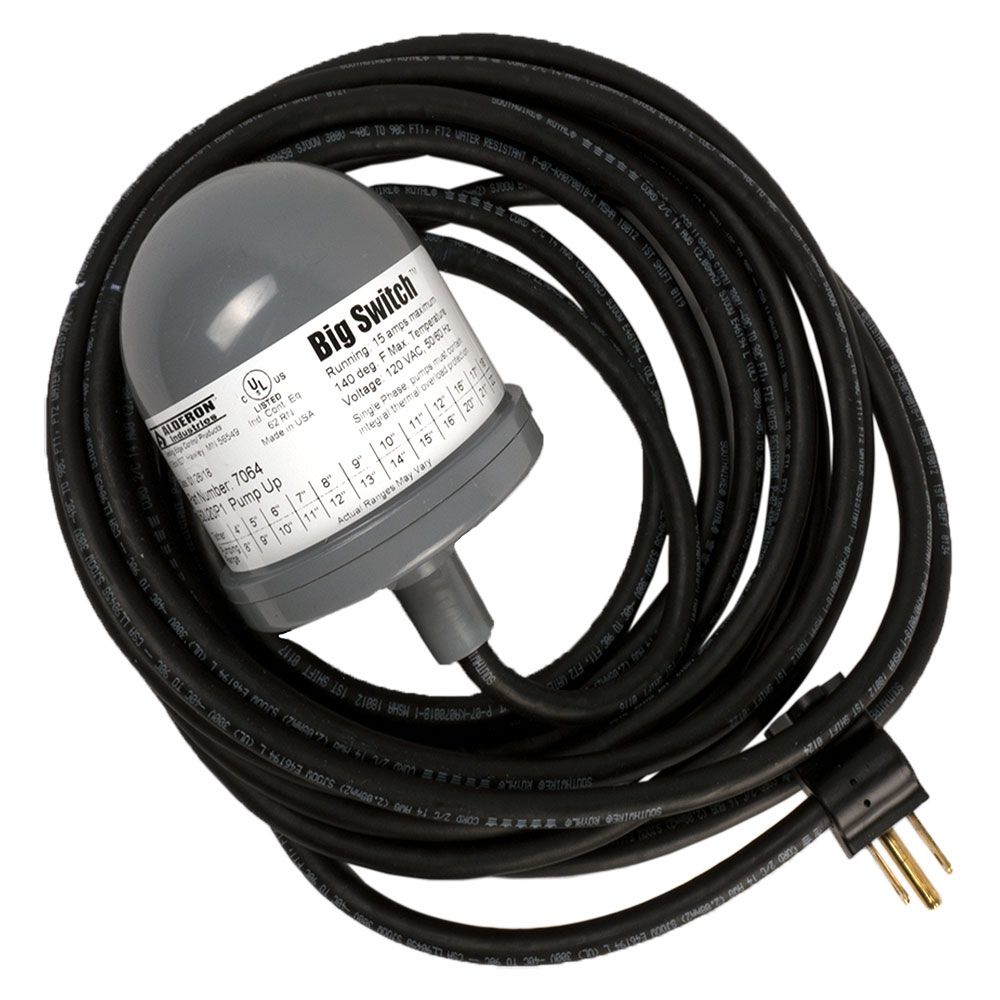

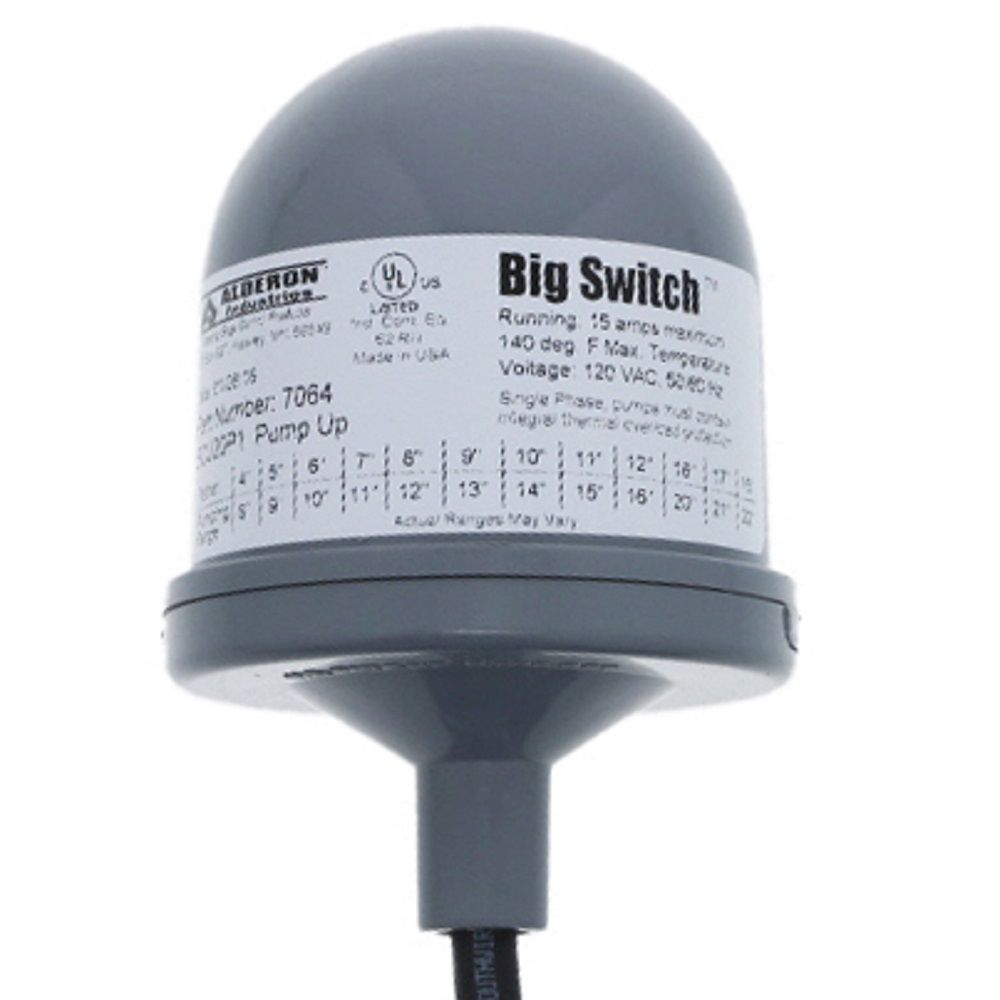

The Alderon 200918 Big Switch Float Switches are rated at 15 amps, which allows the switches to be used on both small and large horsepower pumps.NormallyClosed(Pump Up) Switch turns on (closes) when the float is 45 degrees below horizontal, turning on the pump, and turns off (opens) when the float rises 45 degrees above horizontal, turning off the pump.
Features:
Features:
- Amperage: 15 amps @ 110V
- Operating Temperature - 0 to 140 °F
- Plug: Piggy Black
- Float Housing: 3.25" x 4.50''
- Housing: High Impact PVC
- Switching Differential: 90 degrees Pump Range 8-22 inches
- Cable Length: 20 ft
- Certifications: UL Listed
- Warranty: 3 Years
- Patented Mechanical Design
- PVC Float Housing
- Heavy Duty Cable
- Omni-Directional
Weight & Dimensions
Approx Depth | 3-1/4" |
Approx Length (Inches) | 4-1/2" |
Box Quantity | 1 |
Cord Length | 20' |
Weight (lbs) | 1.13 |
Details
Amps | 15 Amps |
Housing Material | PVC |
Max Temp (°F) | 140 |
Min Temp (°F) | 0 |
Color / Finish | Black |
Voltage | 110V |
Warranty & Certifications
Certifications | UL Listed |
Warranty | 3 Year |
The Alderon 200918 Big Switch Float Switches are rated at 15 amps, which allows the switches to be used on both small and large horsepower pumps.NormallyClosed(Pump Up) Switch turns on (closes) when the float is 45 degrees below horizontal, turning on the pump, and turns off (opens) when the float rises 45 degrees above horizontal, turning off the pump.
Features:
- Amperage: 15 amps @ 110V
- Operating Temperature - 0 to 140 °F
- Plug: Piggy Black
- Float Housing: 3.25" x 4.50''
- Housing: High Impact PVC
- Switching Differential: 90 degrees Pump Range 8-22 inches
- Cable Length: 20 ft
- Certifications: UL Listed
- Warranty: 3 Years
- Patented Mechanical Design
- PVC Float Housing
- Heavy Duty Cable
- Omni-Directional
Weight & Dimensions
Approx Depth | 3-1/4" |
Approx Length (Inches) | 4-1/2" |
Box Quantity | 1 |
Cord Length | 20' |
Weight (lbs) | 1.13 |
Details
Amps | 15 Amps |
Housing Material | PVC |
Max Temp (°F) | 140 |
Min Temp (°F) | 0 |
Color / Finish | Black |
Voltage | 110V |
Warranty & Certifications
Certifications | UL Listed |
Warranty | 3 Year |
