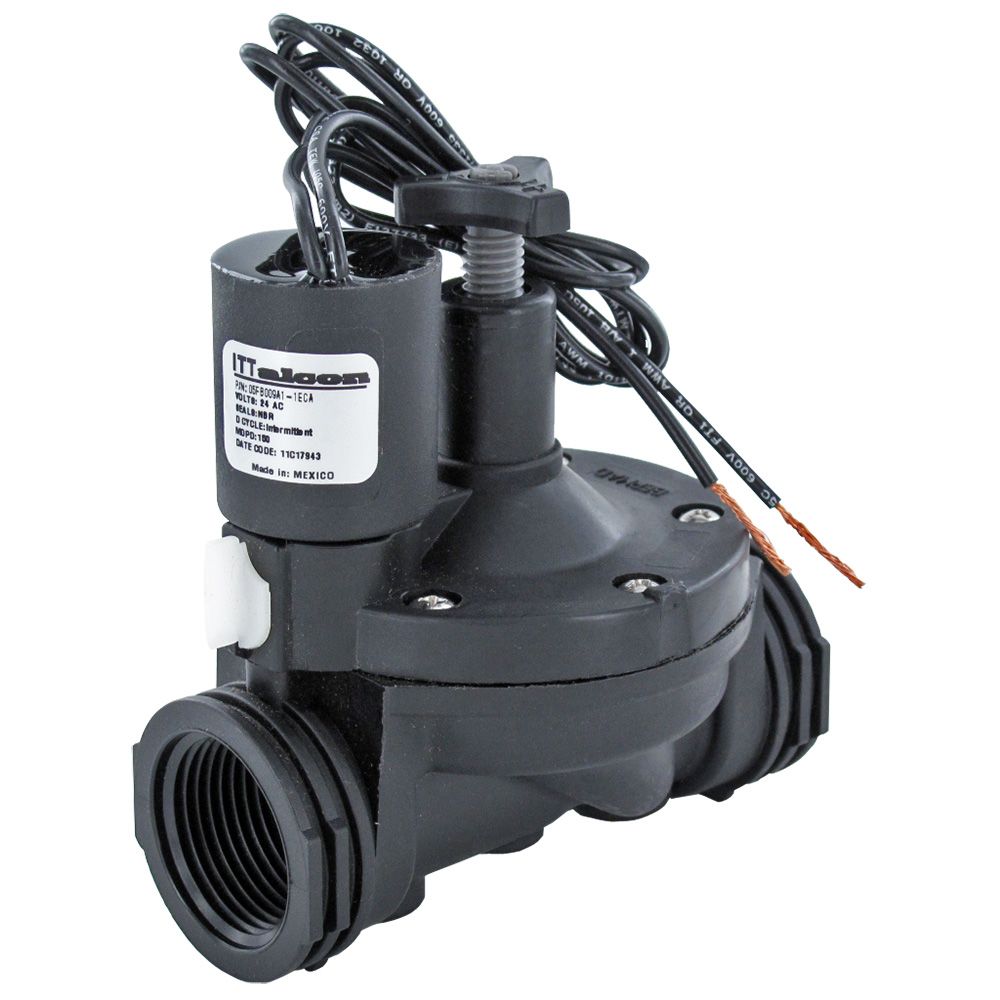

Alcon 05FB009A1-1ECA Solenoid Valve N.C. With Flow Control 1" FPT 24V

Part Number: 05FB009A1-1ECA

Alt. Part Number: 954B-1249, C9-212N6252-G0-MF-24VAC

In Stock

out of stock



The Alcon 05FB009A1-1ECA is a Normally Closed 1" port solenoid valve which is designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of glass reinforced nylon and the diaphragm and seals are Nitrile (Buna-N).


Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC

Specifications:
  • Ports: 1" NPT Female
  • Body Material: Glass Reinforced Nylon
  • Internal Components: Stainless Steel
  • Seals: NBR (Buna-N)
  • Voltage: 24V AC
  • Duty Cycle: Intermittent
  • Connection Type: 18 AWG Lead Wires
  • Has adjustable flow control
  • Certified to NSF/ANSI Standard 61

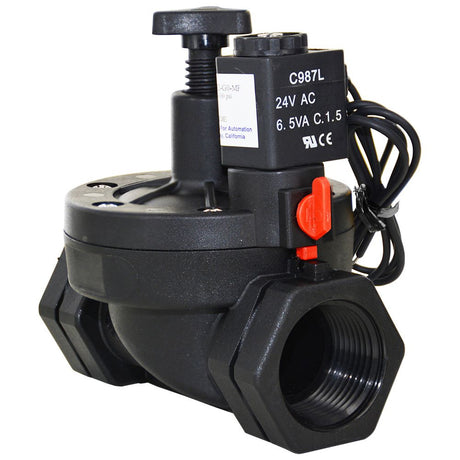

NOTE: This item is discontinued. We recommend the CFA C9 Series Solenoid Valve w/ Manual Override & Flow Control Normally Closed 1" FPT 24VAC as a substitute.

Weight & Dimensions

Weight (lbs)

1.5

Details

Max Temp (°F)

120

Max Pressure (Psi)

150

Min Pressure (Psi)

10

Origin

Mexico

Power

5 W

Voltage

24V AC

Wetted Materials

Glass Reinforced Nylon

Port Size

1" FPT"
