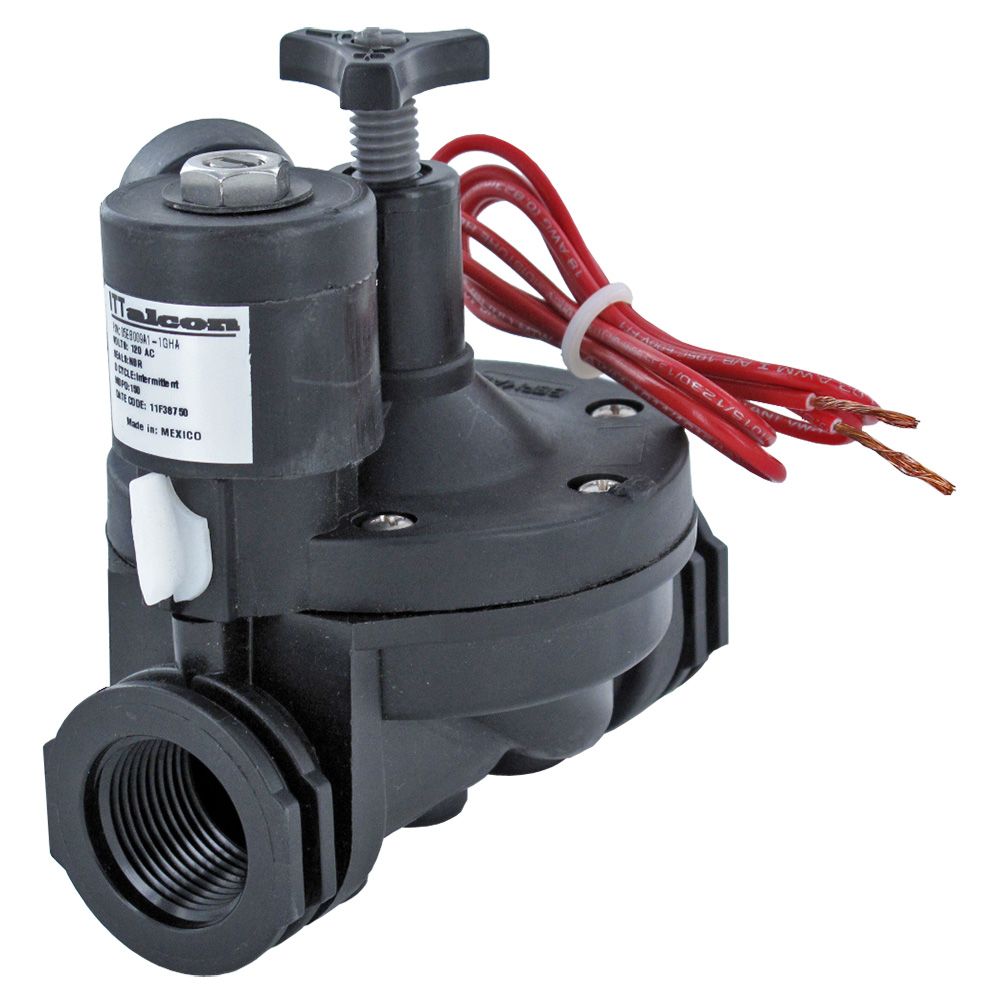

Alcon 05EB009A1-1GHA Solenoid Valve N.C. w/ Flow Control 3/4 FPT 120V

Part Number: 05EB009A1-1GHA

Alt. Part Number: 953B-305

In Stock

out of stock

In Stock

This item is discontinued. We recommend the CFA C9 Series Solenoid Valve Normally Open with Flow Control 3/4" FPT 120 VAC...


Alcon 05EB009A1-1GHA Normally Closed 3/4" port solenoid valves are designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of glass reinforced nylon and the diaphragms and seals are Nitrile (Buna-N).

Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC

Specifications:
  • Ports: 3/4" NPT Female
  • Body Material: Glass Reinforced Nylon
  • Internal Components: Stainless Steel
  • Seals: NBR (Buna-N)
  • Voltage: 120V AC
  • Duty Cycle: Intermittent
  • Connection Type: 18 AWG Lead Wires (1/2" Female Conduit)
  • Has adjustable flow control
  • Certified to NSF/ANSI Standard 61





Weight & Dimensions

Weight (lbs)

1.5

Details

Max Temp (°F)

120

Max Pressure (Psi)

150

Min Pressure (Psi)

10

Origin

Mexico

Power

5 W

Voltage

120V AC

Wetted Materials

Glass Reinforced Nylon

Port Size

3/4" FPT"


Alcon





Alcon 05EB009A1-1GHA Normally Closed 3/4" port solenoid valves are designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of glass reinforced nylon and the diaphragms and seals are Nitrile (Buna-N).

Applications:
  • Car Wash
  • General Industrial
  • Process Applications
  • Water Industries
  • HVAC

Specifications:
  • Ports: 3/4" NPT Female
  • Body Material: Glass Reinforced Nylon
  • Internal Components: Stainless Steel
  • Seals: NBR (Buna-N)
  • Voltage: 120V AC
  • Duty Cycle: Intermittent
  • Connection Type: 18 AWG Lead Wires (1/2" Female Conduit)
  • Has adjustable flow control
  • Certified to NSF/ANSI Standard 61




NOTE: This item is discontinued. We recommend the CFA C9 Series Solenoid Valve Normally Open with Flow Control 3/4" FPT 120 VAC as a substitute.

Weight & Dimensions

Weight (lbs)

1.5

Details

Max Temp (°F)

120

Max Pressure (Psi)

150

Min Pressure (Psi)

10

Origin

Mexico

Power

5 W

Voltage

120V AC

Wetted Materials

Glass Reinforced Nylon

Port Size

3/4" FPT"
