905 Value Series Air Gap Drinking Water Faucet

Part Number: FCT-905AG-CH

Alt. Part Number: FCT-501AG

In Stock

out of stock

In Stock

$49.49

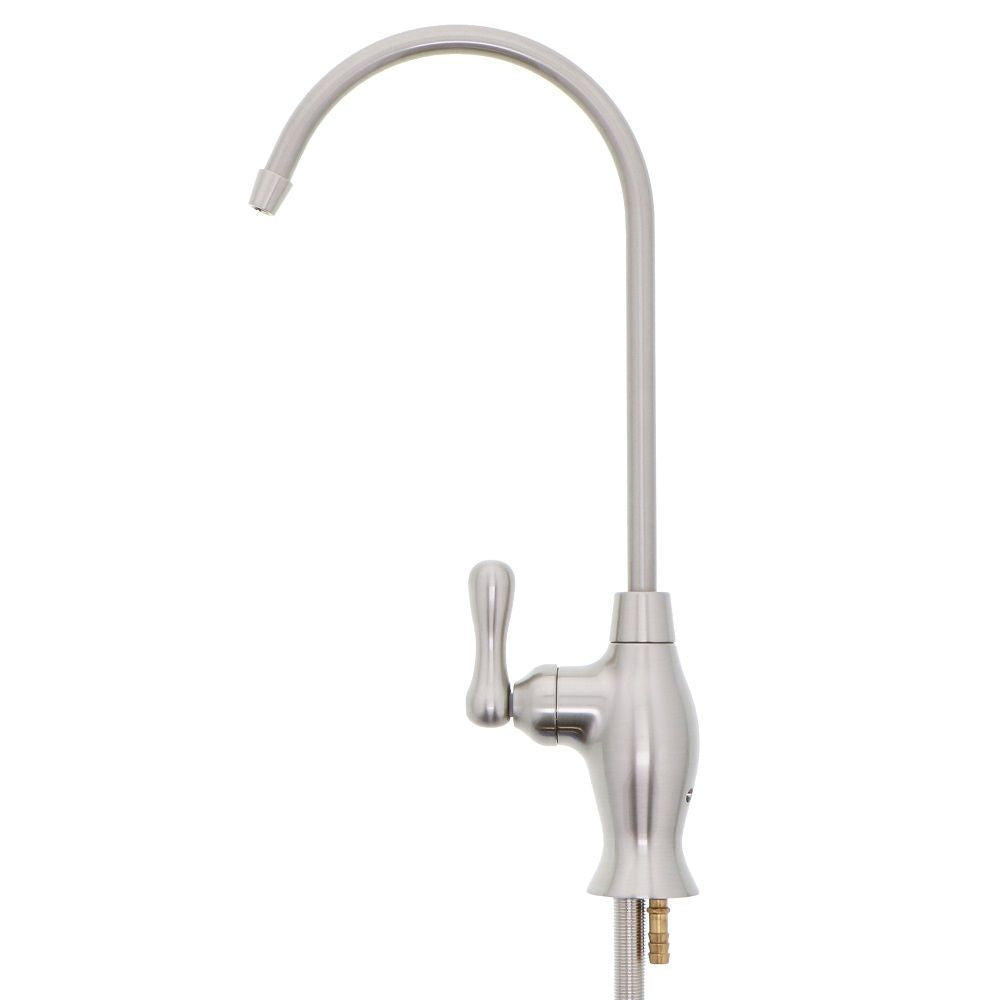

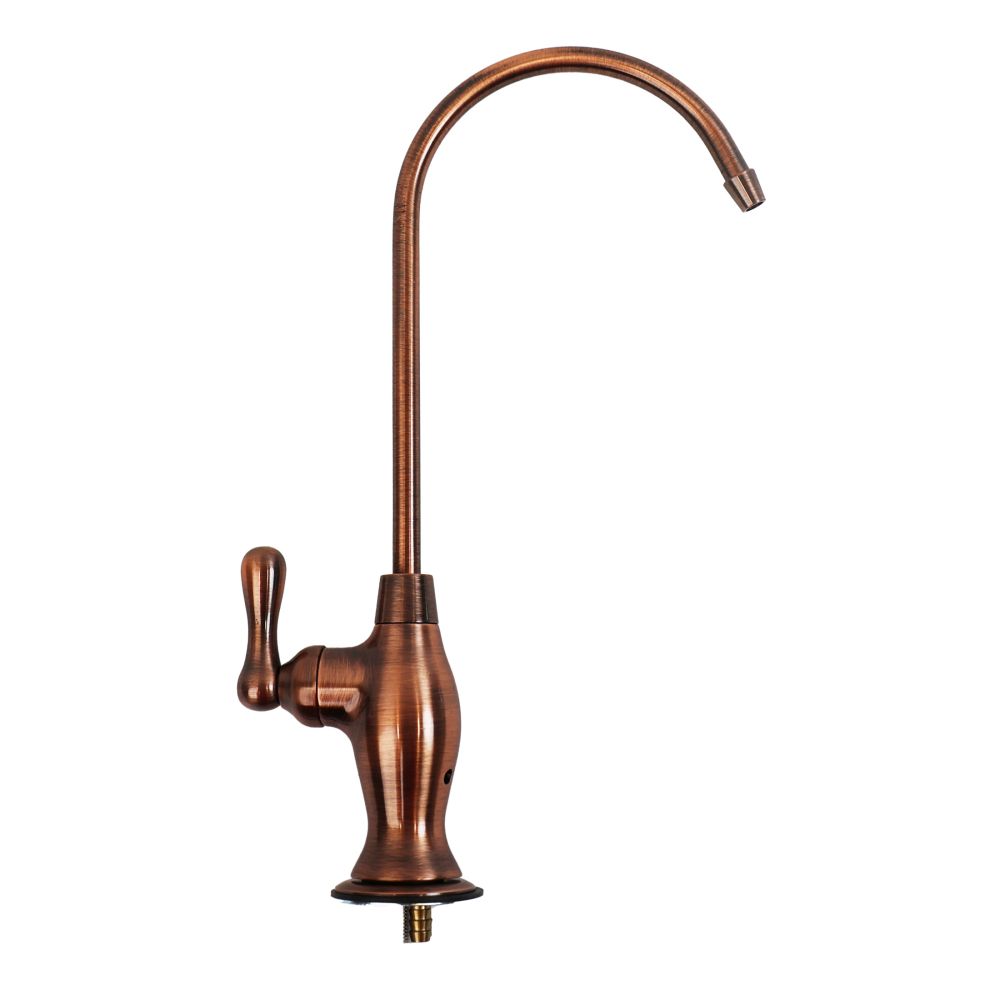

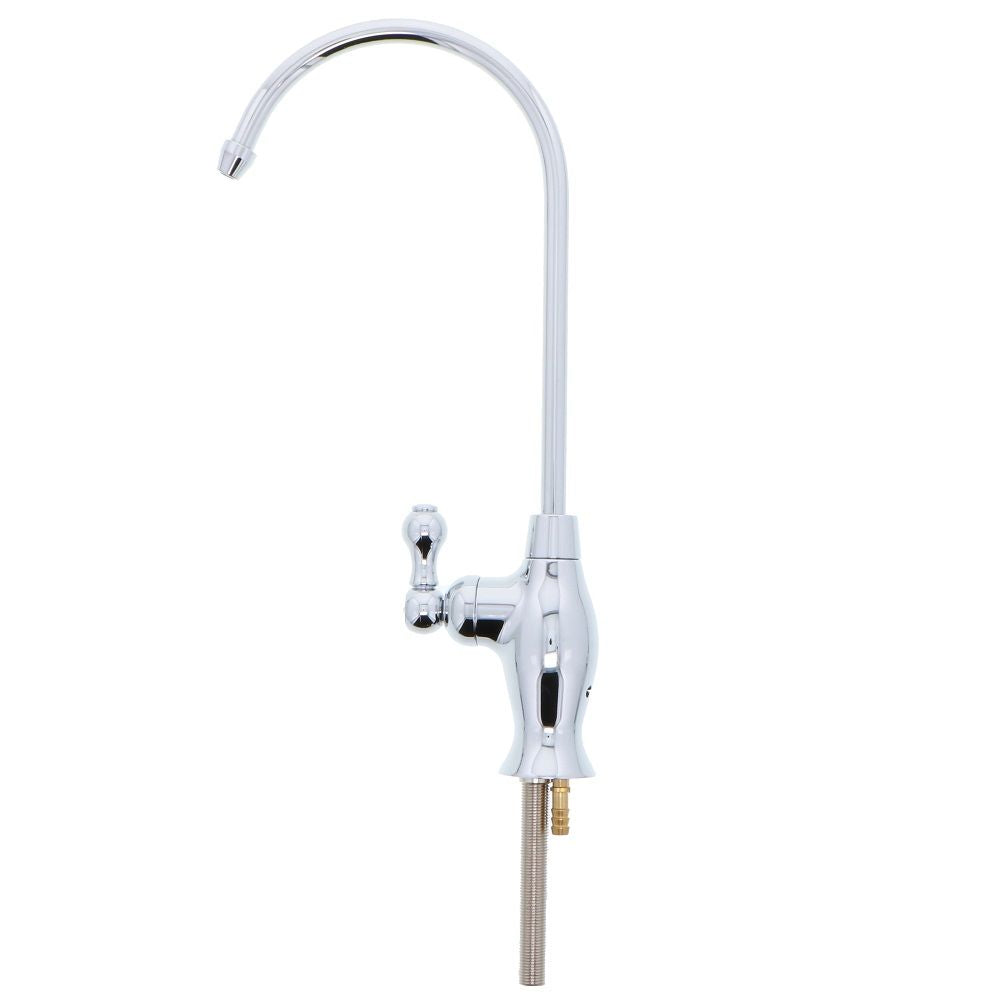

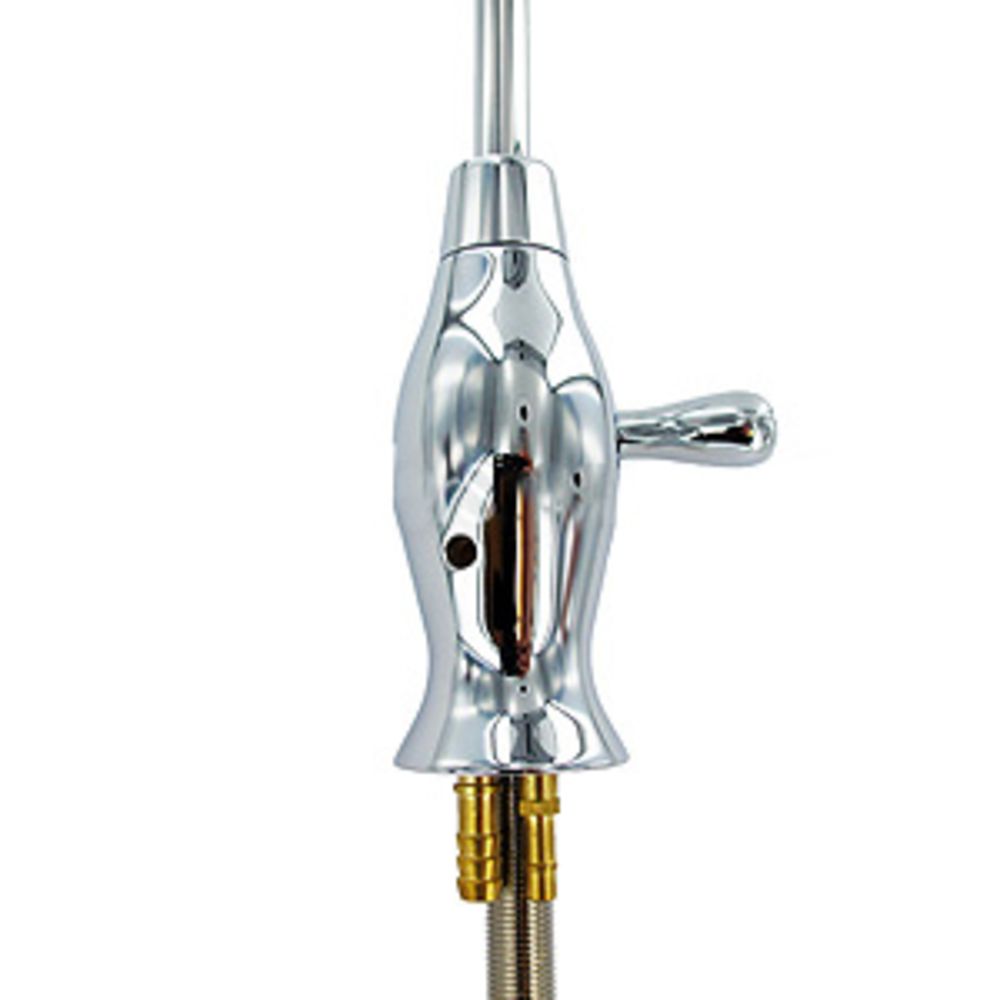

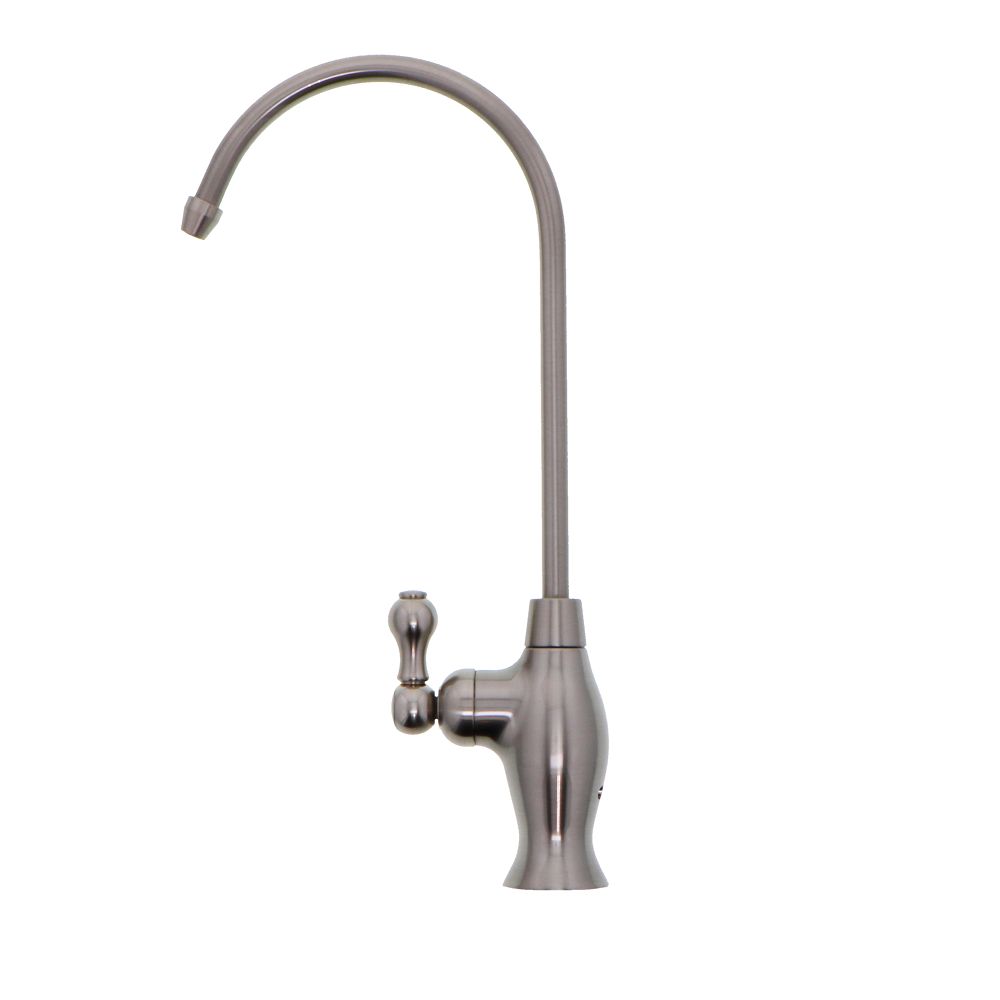

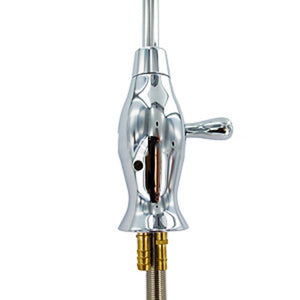

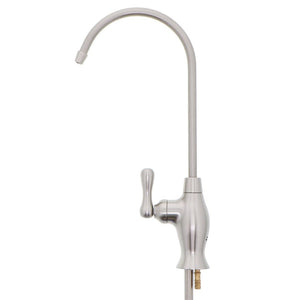

The FCT-905AG air gap drinking water faucet is an inexpensive faucet that boasts of beautiful style. The 905 Series Air Gap Faucets are lead-free and have 3 desirable finishes. This beautiful design allows the goose-neck to swivel 360 degrees. The FCT-905AG Series air gap drinking water faucets are NSF approved for potable and lead-free water.

Features:
  • Lead-Free Brass. The 905 Series Air Gap Faucets assure regulatory compliance to California Prop 65 and AB1953.
  • NSF Certified. The 905 Series Air Gap Faucets are NSF approved to Standard 61. NSF/ANSI 61 sets health effects criteria for many water system components.
  • 360 Degree Swivel. The 905 Series Air Gaps feature a 360 degree swiveling goose-neck.

Specifications:
  • Spout Reach: 5-1/2"
  • Pressure Rating: 125 PSI
  • Flow Rate: 1.0 GPM at 35 PSI
  • Temperature Rating: 40° - 158° F

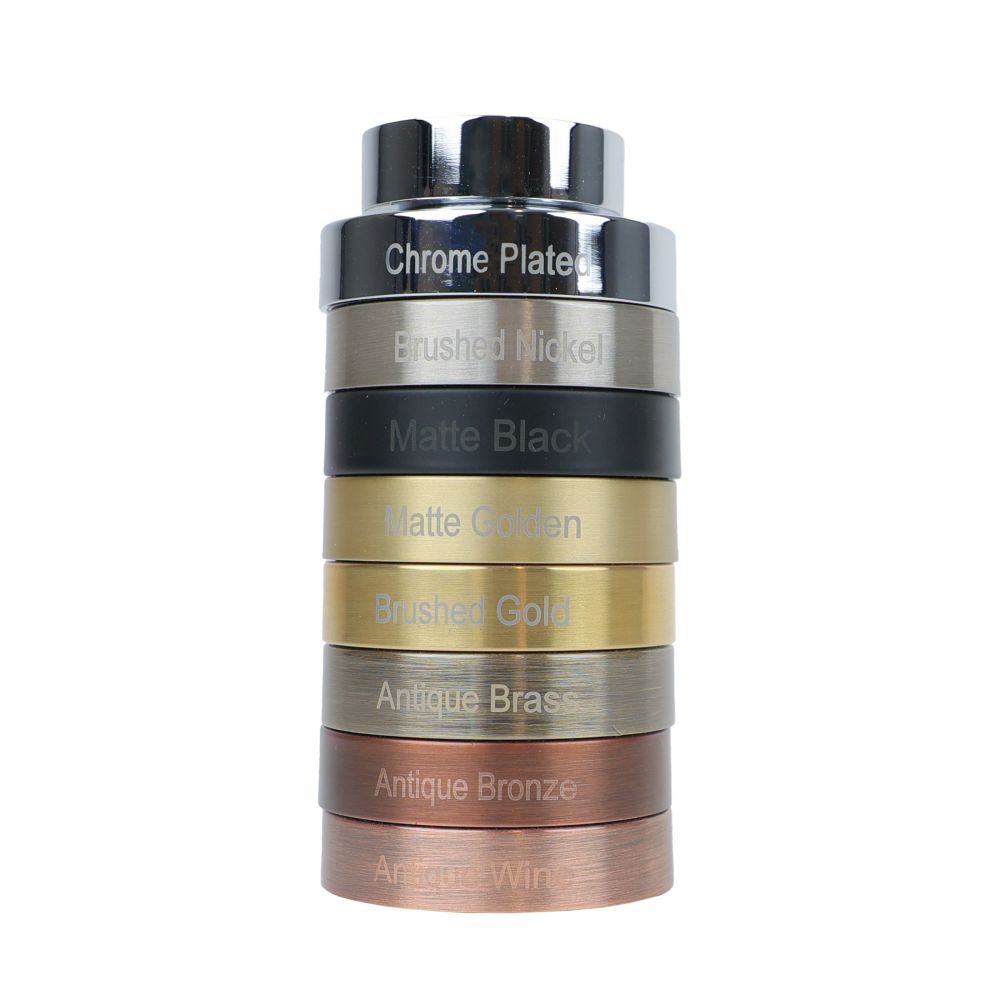

Finish Tomlinson Part # FWS Part #
Chrome 1022293 FCT-905AG-CH
Antique Bronze 1022297 FCT-905AG-ABZ
Brushed Nickel N/A FCT-905AG-BN
Satin Nickel 1022295 FCT-905AG-SN

Compatible with: Likuan | FCT-303AG-BN


Weight & Dimensions

Approx Height (Inches)

11 Inches

Details

Hole Size

7/8" to 1-1/2 Inches

Shank

3 Inches

Base Size

1.5 Inches

Color / Finish

Chrome, Oil Rubbed Bronze, Brushed Nickel

Faucet Type

Air Gap, Drinking Water

Handle Type

Lever Handle

Material Of Construction

Lead Free Brass

Max Flow Rate

1 Gallons Per Minute

Operating Temperature Range

40 - 158 Degrees Fahrenheit

Origin

China

Reach

5 Inches

Warranty & Certifications

Certifications

NSF/ANSI 61; California Prop. 65; AB1953 Compliant
