Liquatec

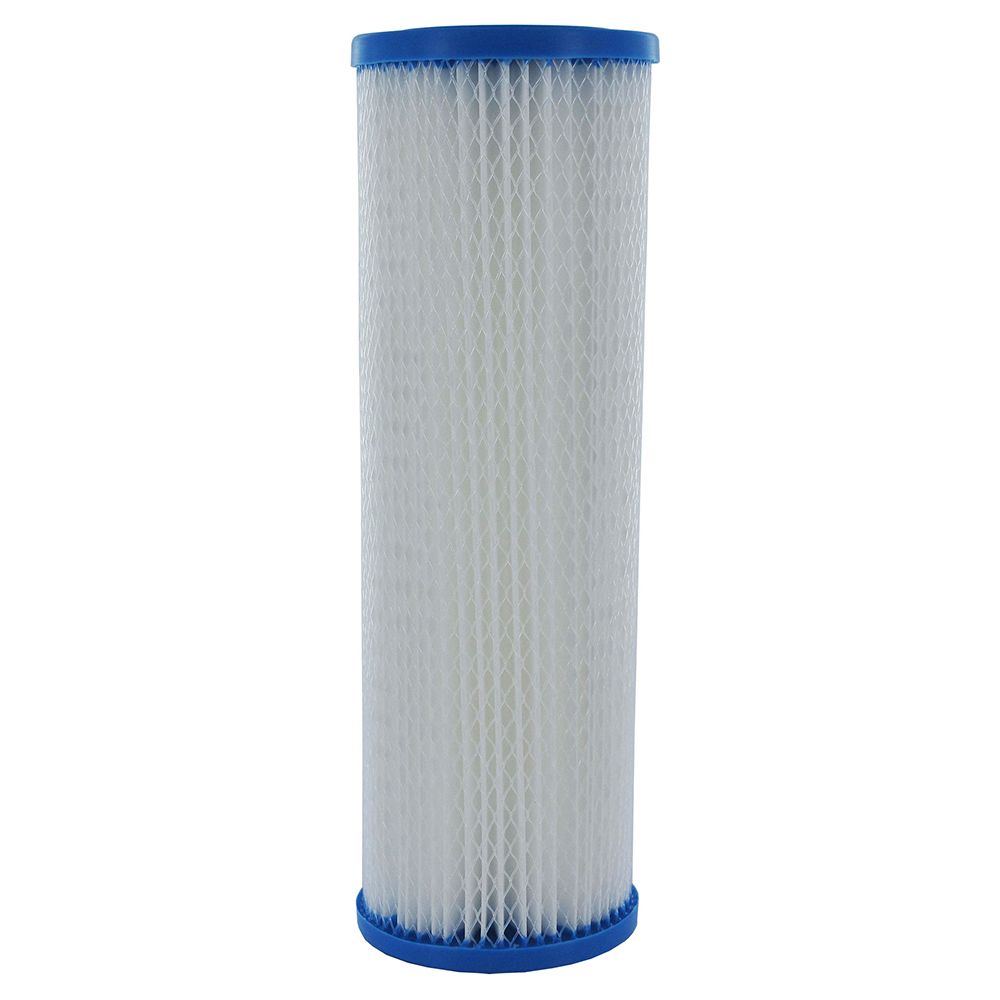

9-7/8" x 4-1/2" BB Liquatec SPF Pleated - 30 mic

Part Number: SPF-45-1030

Alt. Part Number: R30-BB

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Neo-Pure PS-45097-30 9-3/4" BB Standard Efficiency Pleated Filter 30 micron as a substitute.


The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other ”depth” type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable. Features:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
  • Greater dirt holding capacity
  • Lower pressure drop
  • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket




Weight & Dimensions

Weight (lbs)

2

Approx Length (Inches)

9-7/8"

Details

Max Temp (°F)

125

Min Temp (°F)

40

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

12

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 GPM

Initial Pressure Drop

1 PSI Differential

Media Type

Polyester

Micron Rating (Nominal)

30 µm

Outer Diameter

4-1/2"


9-7/8"





The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other ”depth” type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable. Features:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
  • Greater dirt holding capacity
  • Lower pressure drop
  • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket



NOTE: This item is discontinued. We recommend the Neo-Pure PS-45097-30 9-3/4" BB Standard Efficiency Pleated Filter 30 micron as a substitute.

Weight & Dimensions

Weight (lbs)

2

Approx Length (Inches)

9-7/8"

Details

Max Temp (°F)

125

Min Temp (°F)

40

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

12

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 GPM

Initial Pressure Drop

1 PSI Differential

Media Type

Polyester

Micron Rating (Nominal)

30 µm

Outer Diameter

4-1/2"

Documentation
9-7/8"
