Liquatec

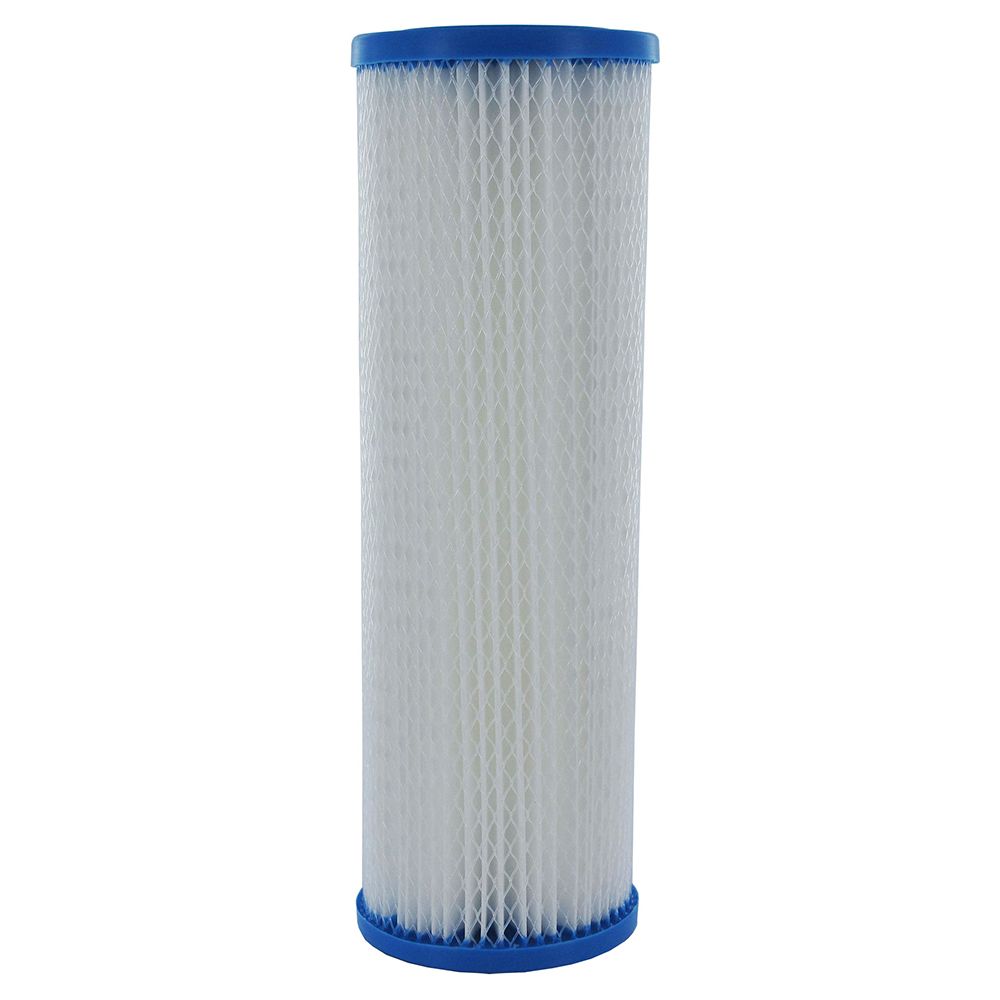

9-7/8" x 4-1/2" BB Liquatec SPF Pleated - 20 mic
This item is discontinued. We recommend the Neo-Pure PH-45097-20 9-3/4" BB High Efficiency Pleated Filter 20 micron as a substitute.
Features:
- Polyester media is chemical and bacteria resistant
- Cleanable (reusable) on cartridges 5 microns and up
- Pleated media has more surface area providing:
- Greater dirt holding capacity
- Lower pressure drop
- Extended filter life
- Pleated media has a polypropylene core for added strength
- Vinyl plastisol ends fuse components together into a unified end cap and gasket
Weight & Dimensions
Approx Length (Inches) | 9-7/8" |
Case Quantity | 12 |
Weight (lbs) | 1.05 |
Details
Capacity | As Needed |
Filter Application | Sediment/Dirt/Rust |
Initial Pressure Drop | 1 PSI Differential |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 20 µm |
Min Temp (°F) | 40 |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) |
Flow Rate | 10 GPM |
Media Type | Polyester |
Micron Rating | 20 µm |
Product Length | 9-7/8" |
The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity. The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.
Features:
- Polyester media is chemical and bacteria resistant
- Cleanable (reusable) on cartridges 5 microns and up
- Pleated media has more surface area providing:
- Greater dirt holding capacity
- Lower pressure drop
- Extended filter life
- Pleated media has a polypropylene core for added strength
- Vinyl plastisol ends fuse components together into a unified end cap and gasket
NOTE: This item is discontinued. We recommend the Neo-Pure PH-45097-20 9-3/4" BB High Efficiency Pleated Filter 20 micron as a substitute.
Weight & Dimensions
Approx Length (Inches) | 9-7/8" |
Case Quantity | 12 |
Weight (lbs) | 1.05 |
Details
Capacity | As Needed |
Filter Application | Sediment/Dirt/Rust |
Initial Pressure Drop | 1 PSI Differential |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 20 µm |
Min Temp (°F) | 40 |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) |
Flow Rate | 10 GPM |
Media Type | Polyester |
Micron Rating | 20 µm |
Product Length | 9-7/8" |
