Liquatec

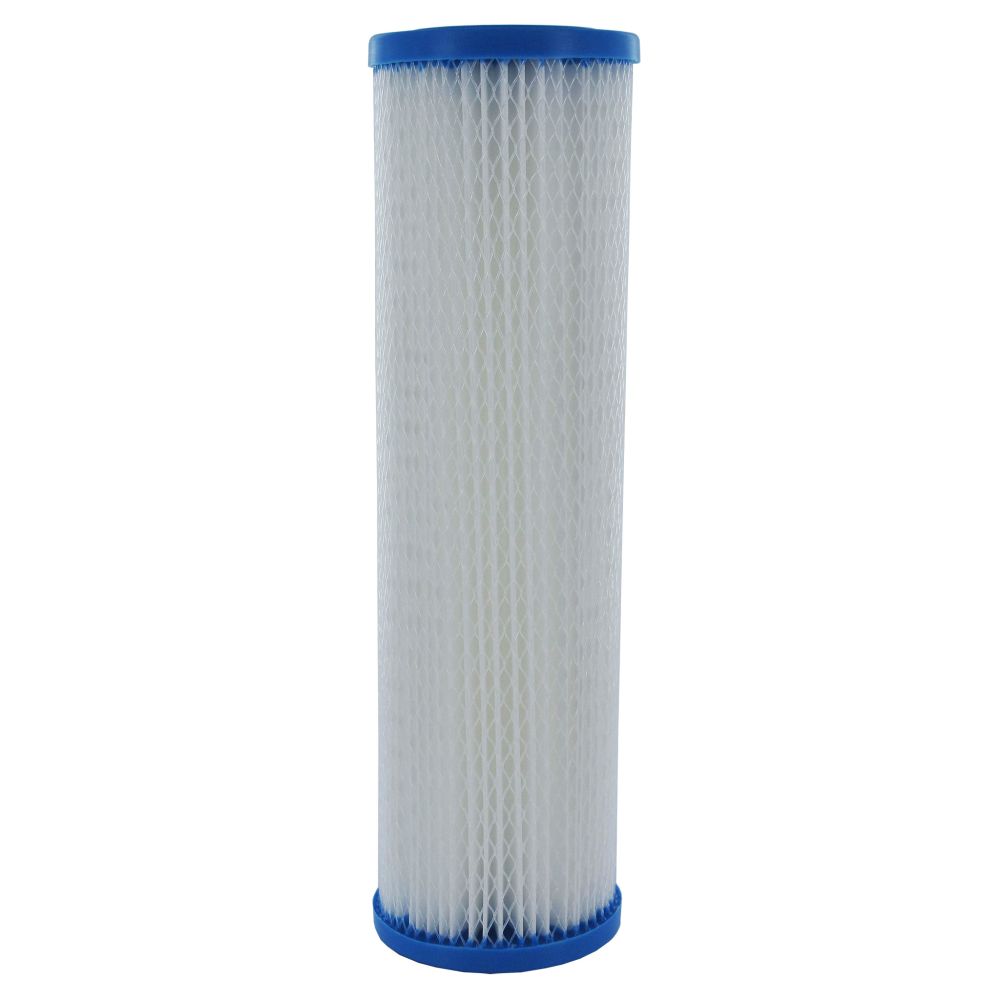

9-7/8" x 2-3/4" Liquatec SPF Pleated Filter - 10 mic

Part Number: SPF-25-1010

In Stock

out of stock

In Stock

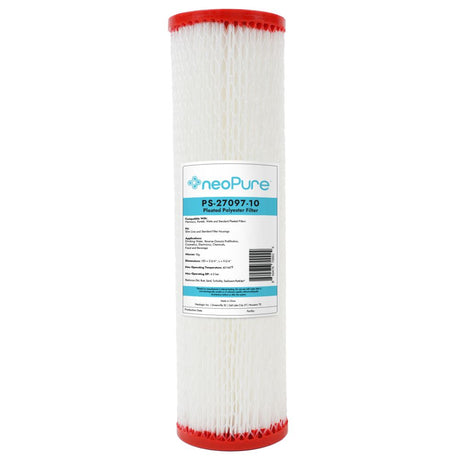

This item is discontinued. We recommend the Neo-Pure PH-27097-10 9-3/4" High Efficiency Pleated Filter 10 micron as a substitute.


The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other ”depth” type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.
Features:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
                      Greater dirt holding capacity                        Lower pressure drop                        Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket




Weight & Dimensions

Approx Length (Inches)

9-7/8"

Case Quantity

40

Weight (lbs)

0.55

Details

Capacity

As Needed

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-In

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 GPM

Initial Pressure Drop

1 PSI Differential

Inner/Outer Wraps

Polypropylene

Max Temp (°F)

125

Micron Rating

10 µm

Micron Rating (Nominal)

10 µm

Min Temp (°F)

40

Netting

Polypropylene

Outer Diameter

2-1/2"

Product Length

9-7/8"


9-7/8"





The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other ”depth” type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.
Features:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
                      Greater dirt holding capacity                        Lower pressure drop                        Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket



NOTE: This item is discontinued. We recommend the Neo-Pure PH-27097-10 9-3/4" High Efficiency Pleated Filter 10 micron as a substitute.

Weight & Dimensions

Approx Length (Inches)

9-7/8"

Case Quantity

40

Weight (lbs)

0.55

Details

Capacity

As Needed

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-In

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 GPM

Initial Pressure Drop

1 PSI Differential

Inner/Outer Wraps

Polypropylene

Max Temp (°F)

125

Micron Rating

10 µm

Micron Rating (Nominal)

10 µm

Min Temp (°F)

40

Netting

Polypropylene

Outer Diameter

2-1/2"

Product Length

9-7/8"
