Home / Filters & Cartridges / Sediment Filters / Pleated / 9-7/8" x 2-3/4" Liquatec SPF Pleated - 30 mic

Liquatec

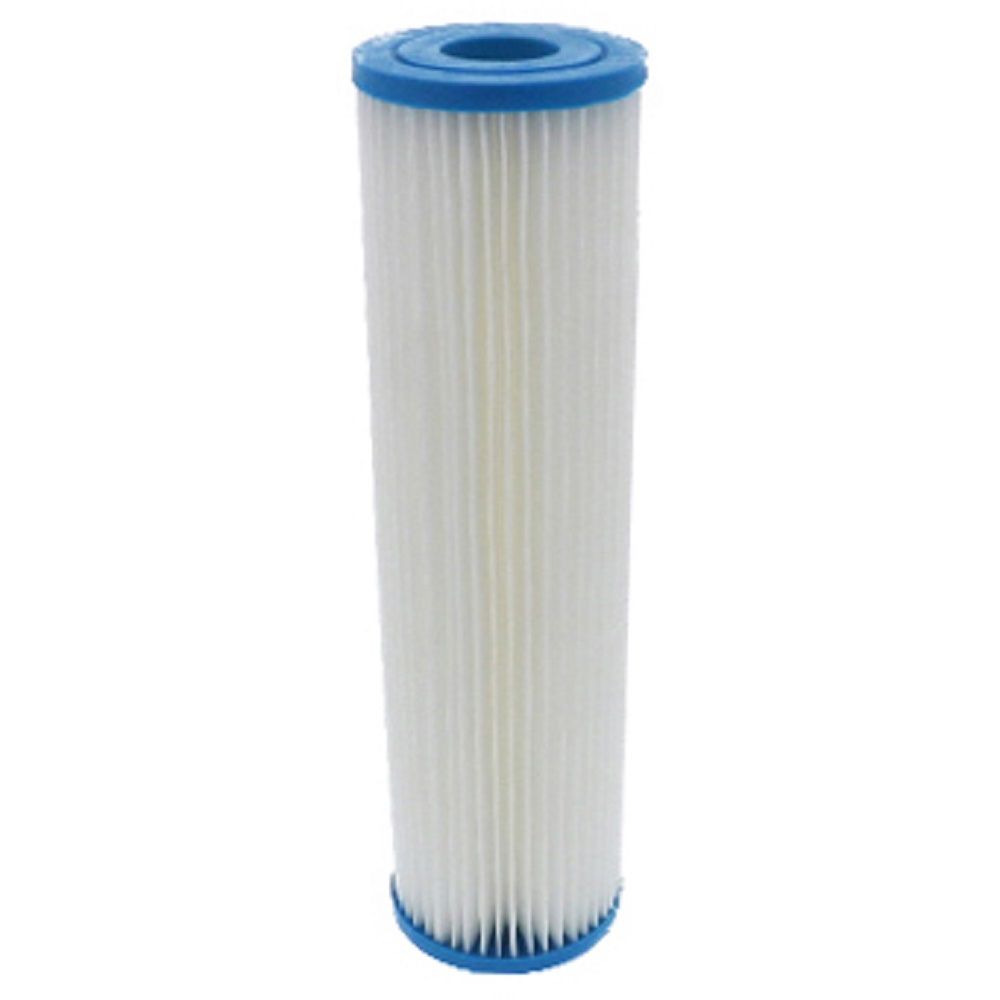

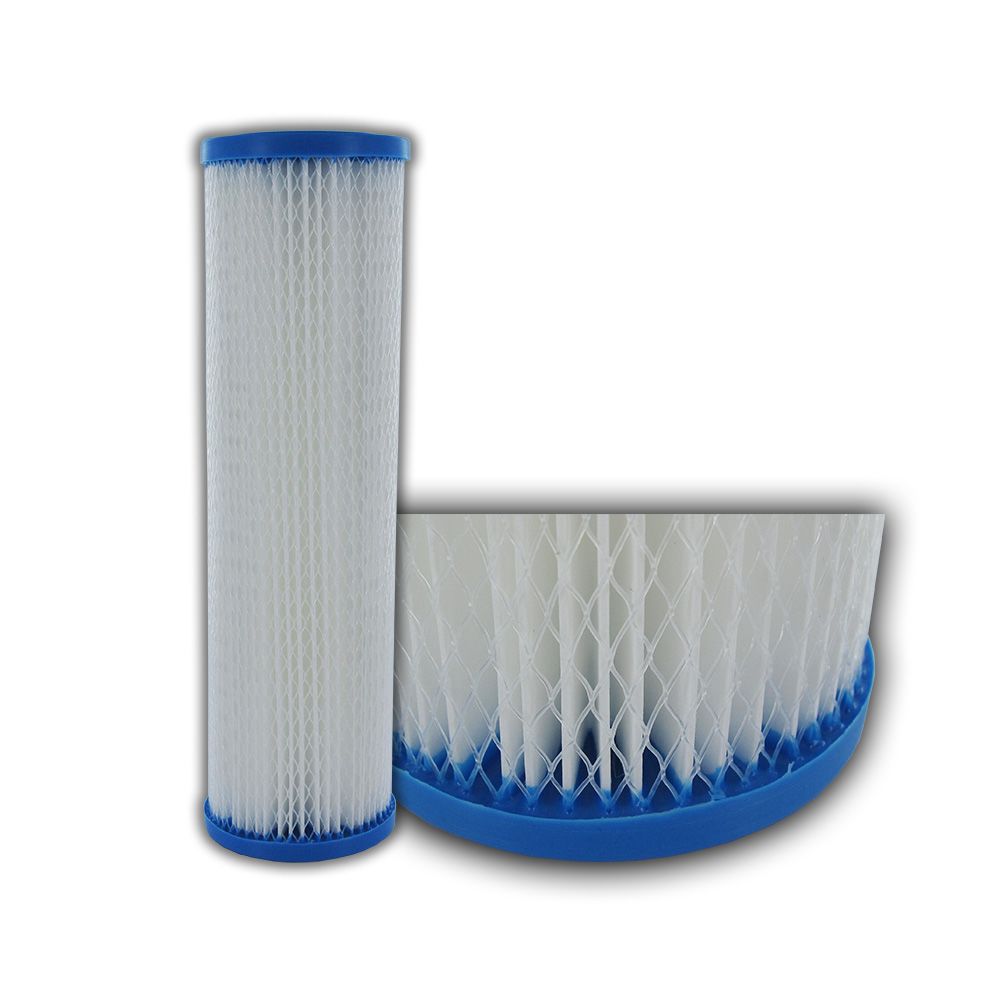

9-7/8" x 2-3/4" Liquatec SPF Pleated - 30 mic

Part Number: SPF-25-1030

Alt. Part Number: R30, 155017-43

Liquatec

9-7/8" x 2-3/4" Liquatec SPF Pleated - 30 mic

Part Number: SPF-25-1030

Alt. Part Number: R30, 155017-43

One-time purchase

Subscription

Subscription details

Quantity

The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity. The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.

Specifications:

Polyester media is chemical and bacteria resistant
Cleanable (reusable) on cartridges 5 microns and up
Pleated media has more surface area providing:
Greater dirt holding capacity
Lower pressure drop
Extended filter life
Pleated media has a polypropylene core for added strength
Vinyl plastisol ends fuse components together into a unified end cap and gasket

Polyester media is chemical and bacteria resistant
Cleanable (reusable) on cartridges 5 microns and up
Pleated media has more surface area providing:
Greater dirt holding capacity
Lower pressure drop
Extended filter life
Pleated media has a polypropylene core for added strength
Vinyl plastisol ends fuse components together into a unified end cap and gasket

Product Details
Core Material	Polypropylene
Initial Pressure Drop	1 PSI Differential
Inner/Outer Wraps	Polypropylene
Max Temp (°F)	125
Micron Rating (Nominal)	30 µm
Min Temp (°F)	40
Netting	Polypropylene
Psid@Flow Rate	1 psi @ 10 GPM
Recommended Flow Rate	10 GPM
Cap Material	Vinyl-Plastisol
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-3/4"
End Cap Type	Double Open Ended (DOE)
Filter Construction	Pleated
Filter Type	Pleated
Flow Rate	10 GPM
Media Type	Polyester
Micron Rating	30 µm
Product Weight & Dimensions
Product Length	9-7/8"
Product Weight (lbs)	0.6

Product Details
Core Material	Polypropylene
Initial Pressure Drop	1 PSI Differential
Inner/Outer Wraps	Polypropylene
Max Temp (°F)	125
Micron Rating (Nominal)	30 µm
Min Temp (°F)	40
Netting	Polypropylene
Psid@Flow Rate	1 psi @ 10 GPM
Recommended Flow Rate	10 GPM
Cap Material	Vinyl-Plastisol
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-3/4"
End Cap Type	Double Open Ended (DOE)
Filter Construction	Pleated
Filter Type	Pleated
Flow Rate	10 GPM
Media Type	Polyester
Micron Rating	30 µm
Product Weight & Dimensions
Product Length	9-7/8"
Product Weight (lbs)	0.6
