Liquatec

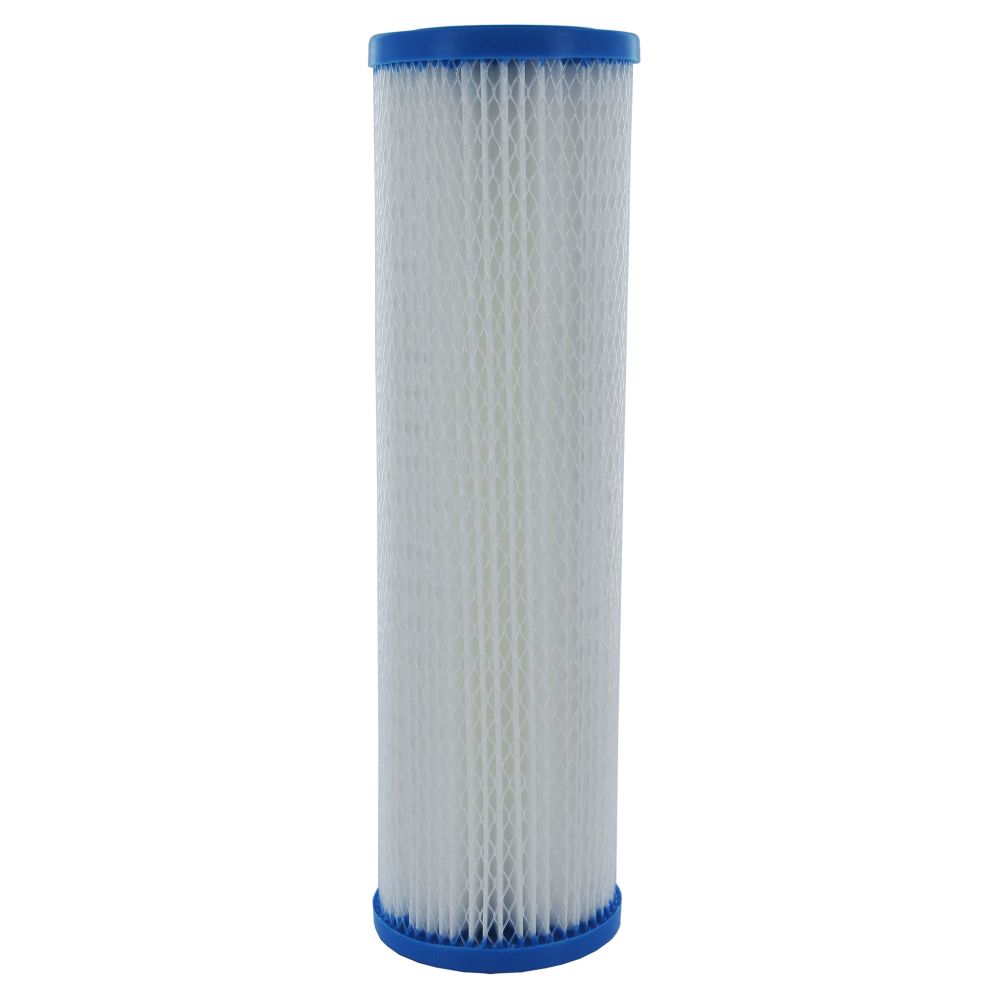

9-7/8" x 2-3/4" Liquatec SPF Pleated - 1 mic

Part Number: SPF-25-1001

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Neo-Pure PH-27097-01 9-3/4" High Efficiency Pleated Filter 1 micron as a substitute.

The Liquatec SPF Series Polyester Pleated filter cartridges out-perform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.
Specifications:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
  • Greater dirt holding capacity
  • Lower pressure drop
  • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket




Weight & Dimensions

Approx Length (Inches)

9-7/8"

Case Quantity

40

Weight (lbs)

0.6

Details

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

1 PSI Differential

Inner/Outer Wraps

Polypropylene

Max Temp (°F)

125

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Netting

Polypropylene

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Flow Rate

10 GPM

Media Type

Polyester

Micron Rating

1 µm

Product Length

9-7/8"


9-7/8"




The Liquatec SPF Series Polyester Pleated filter cartridges out-perform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.
Specifications:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
  • Greater dirt holding capacity
  • Lower pressure drop
  • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket



NOTE: This item is discontinued. We recommend the Neo-Pure PH-27097-01 9-3/4" High Efficiency Pleated Filter 1 micron as a substitute.

Weight & Dimensions

Approx Length (Inches)

9-7/8"

Case Quantity

40

Weight (lbs)

0.6

Details

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

1 PSI Differential

Inner/Outer Wraps

Polypropylene

Max Temp (°F)

125

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Netting

Polypropylene

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Flow Rate

10 GPM

Media Type

Polyester

Micron Rating

1 µm

Product Length

9-7/8"
