The polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.
Features:
- Thermally bonded polypropylene micro-fiber construction for higher filtration efficiency
- Provides superior chemical resistance and is not prone to bacterial attack
- Rigid polypropylene center core for increased collapse strength and durability
- Consistent flow rate and superior filtration performance
- Not brittle or prone to breakage problems like resin-bonded cartridges
- Will not impart taste, odor or color to the liquid being filtered, which makes it ideal for food and beverage applications
- Unique micro-grooves provide added surface area
- Ideal for a wide variety of industrial filtration
- Also know as the Pentair Industrial Versaflex Series VF-250PD Filter Cartridges
Compatible with:
| High Efficiency Meltblown Sediment Depth Filters | HMB-25098-20W |
Weight & Dimensions
Approx Length (Inches) | 9-7/8" (25.1 cm) |
Case Quantity | 24 |
Cube Measurement | 1.0725 |
Height (inches) | 10.4 |
Length (inches) | 16.2 |
Weight (lbs) | 11 |
Width (inches) | 11 |
Details
Capacity | As Needed |
Features | Micro Grooves |
Initial Pressure Drop | 2psi @ 2gpm PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 25 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | <2 psid @ 2 GPM |
Cap Material | Thermally Bonded Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown - Grooved |
Filter Type | Sediment Depth |
Media Type | Thermally Bonded Polypropylene |
Micron Rating | 25 µm |
Product Length | 9-7/8" |
Warranty & Certifications
Certifications | NSF/ANSI 42 |

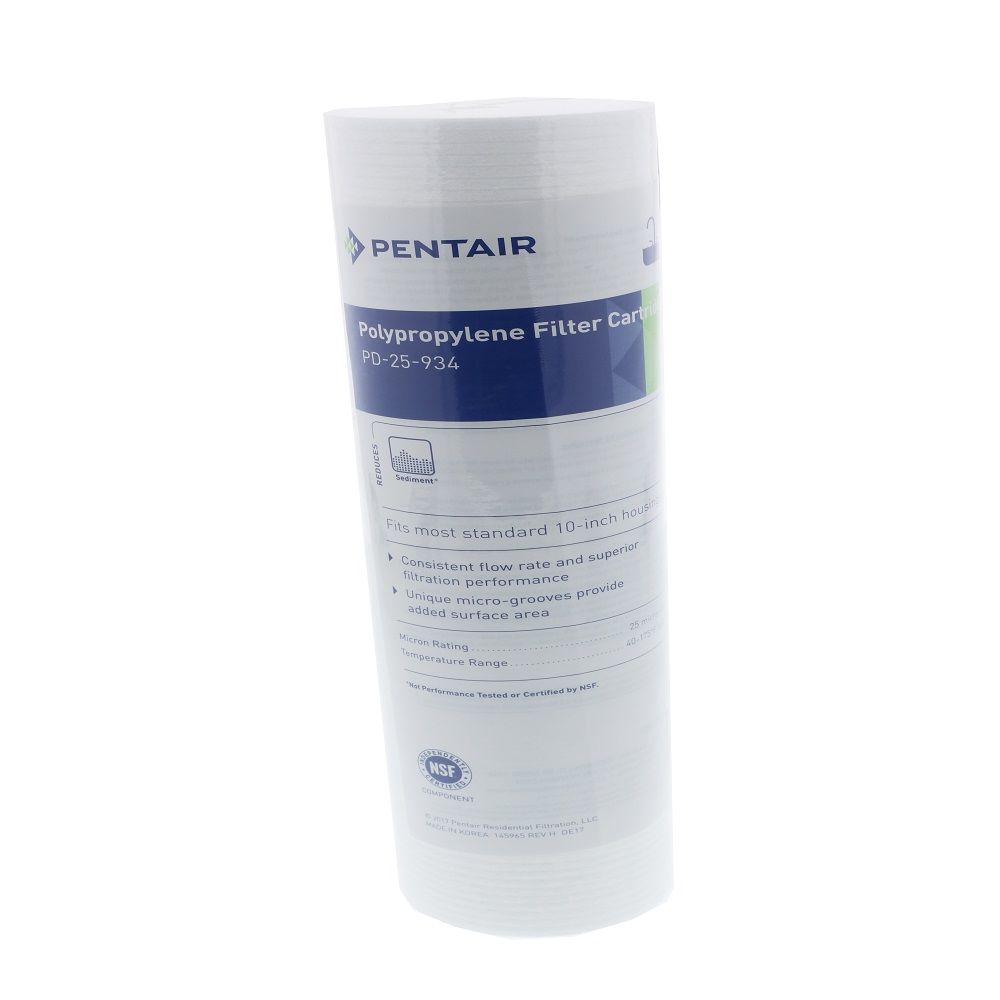

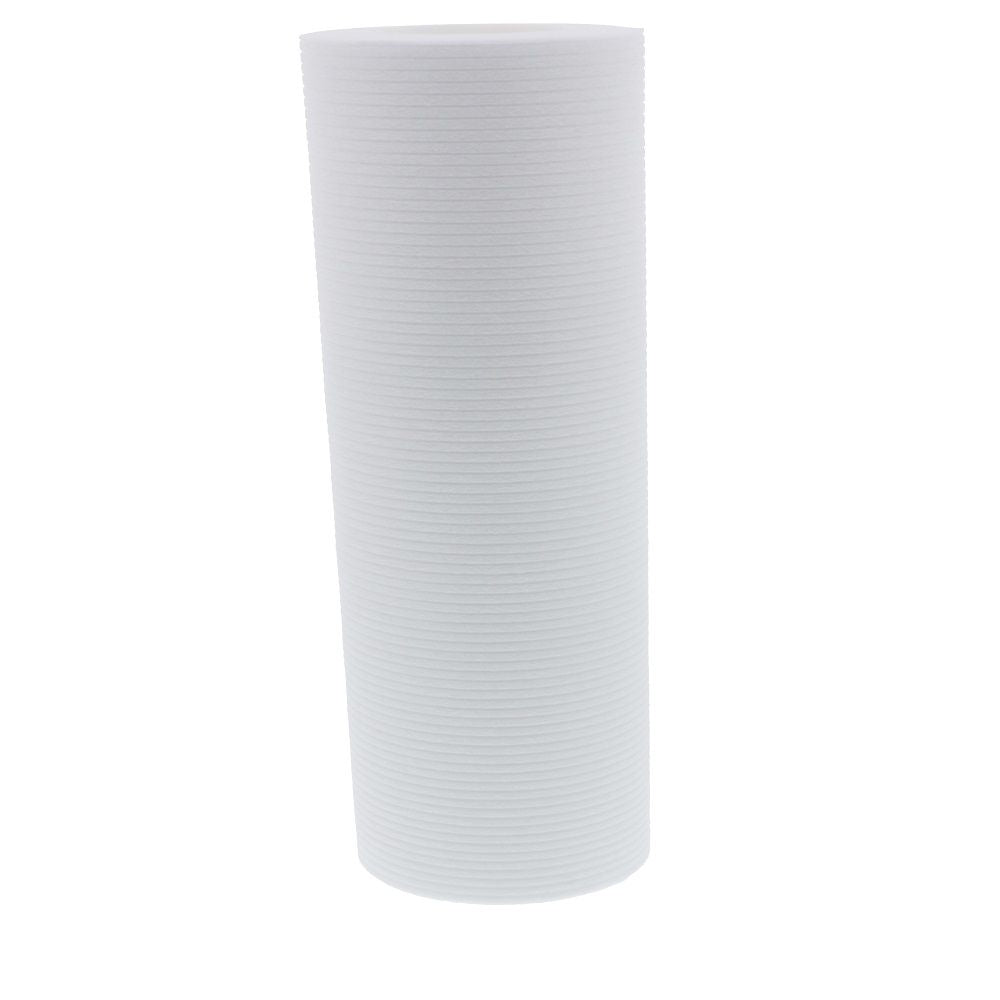

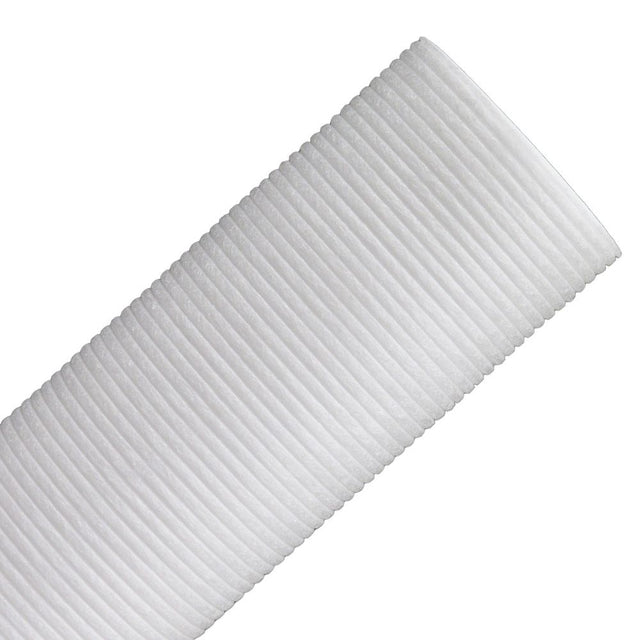

The POLYDEPTH® PD-25-934 filtration cartridge is constructed of thermally bonded polypropylene microfibers to ensure high efficiency. The filter incorporates a rigid polypropylene center core for increased collapse strength and durability. This thermal bonded micro-fiber construction has minimal fiber release, consistent flow rate and superior filtration performance. It also is not brittle or prone to breakage problems like resin-bonded cartridges.
The polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.
Features:
- Thermally bonded polypropylene micro-fiber construction for higher filtration efficiency
- Provides superior chemical resistance and is not prone to bacterial attack
- Rigid polypropylene center core for increased collapse strength and durability
- Consistent flow rate and superior filtration performance
- Not brittle or prone to breakage problems like resin-bonded cartridges
- Will not impart taste, odor or color to the liquid being filtered, which makes it ideal for food and beverage applications
- Unique micro-grooves provide added surface area
- Ideal for a wide variety of industrial filtration
- Also know as the Pentair Industrial Versaflex Series VF-250PD Filter Cartridges
Compatible with:

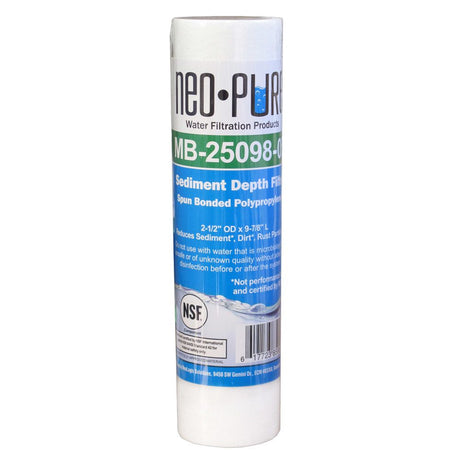

| High Efficiency Meltblown Sediment Depth Filters | HMB-25098-20W |
Weight & Dimensions
Approx Length (Inches) | 9-7/8" (25.1 cm) |
Case Quantity | 24 |
Cube Measurement | 1.0725 |
Height (inches) | 10.4 |
Length (inches) | 16.2 |
Weight (lbs) | 11 |
Width (inches) | 11 |
Details
Capacity | As Needed |
Features | Micro Grooves |
Initial Pressure Drop | 2psi @ 2gpm PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 25 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | <2 psid @ 2 GPM |
Cap Material | Thermally Bonded Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown - Grooved |
Filter Type | Sediment Depth |
Media Type | Thermally Bonded Polypropylene |
Micron Rating | 25 µm |
Product Length | 9-7/8" |
Warranty & Certifications
Certifications | NSF/ANSI 42 |
