Colder Products

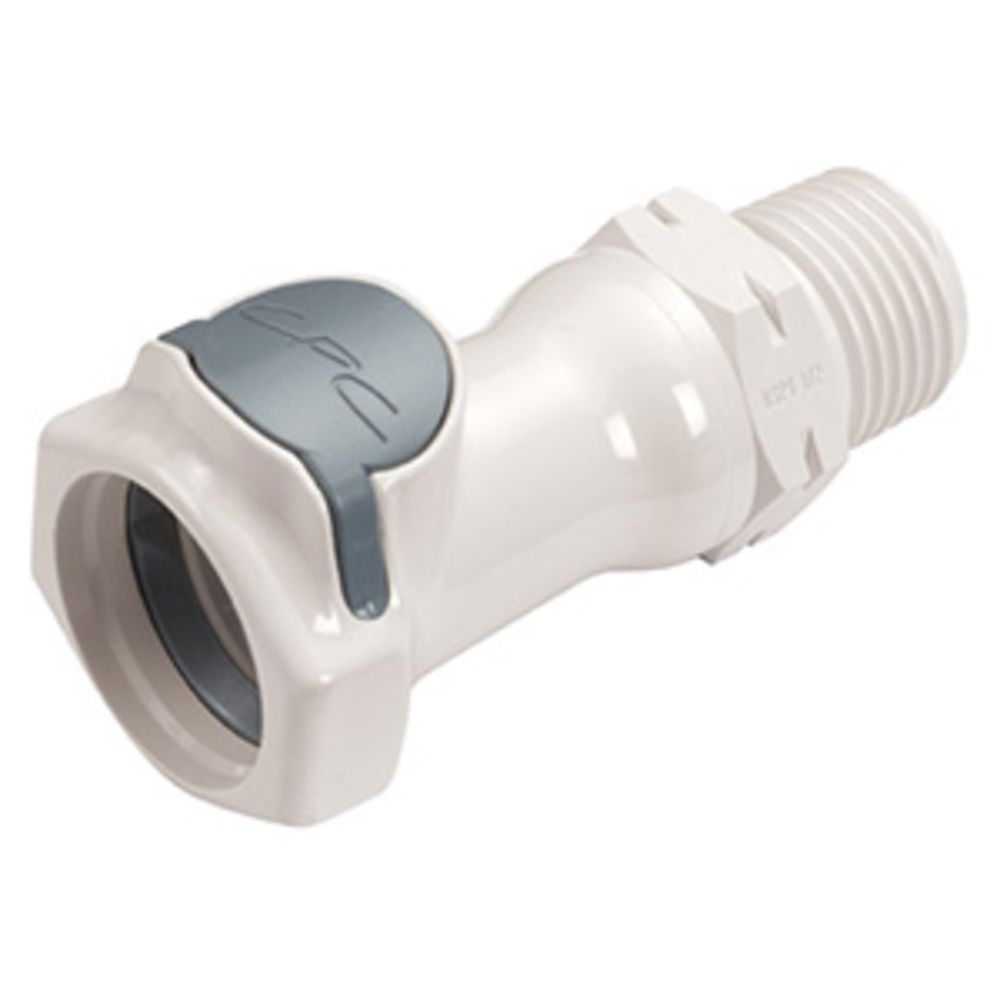

87100 NSF Valved Polypropylene Coupling Body 3/4 BSPT

Part Number: 87100

Alt. Part Number: HFCD101235BSPT (Non-NSF)

In Stock

out of stock

In Stock

$17.01


Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are sutiable for use in water and beverage lines or food and condiment dispensing.
Specifications:
  • Material: Polysulfone
  • Material Finish: Molded White
  • Color: Gray
  • Valve Option: Valved
  • Mounting Option: Thread
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Temperature Range: -40°F to 280°F
  • Seal Options: FDA EPDM
  • Valve Spring: 316 Stainless Steel


Details

Series

HFC35

Thread Connection

3/4" | BSP

Bag Quantity

50 Units

Body Material

Polysulfone

Color / Finish

Gray, Molded White

Mounting Options

Thread

Operating Pressure Range

Vacuum to 125 psi, 8.6 bar PSI

Operating Temperature Range

-40-280 Degrees Fahrenheit

Seal Material

FDA EPDM

Spring

316 Stainless Steel

Valve Type

Valved


87100
