Colder Products

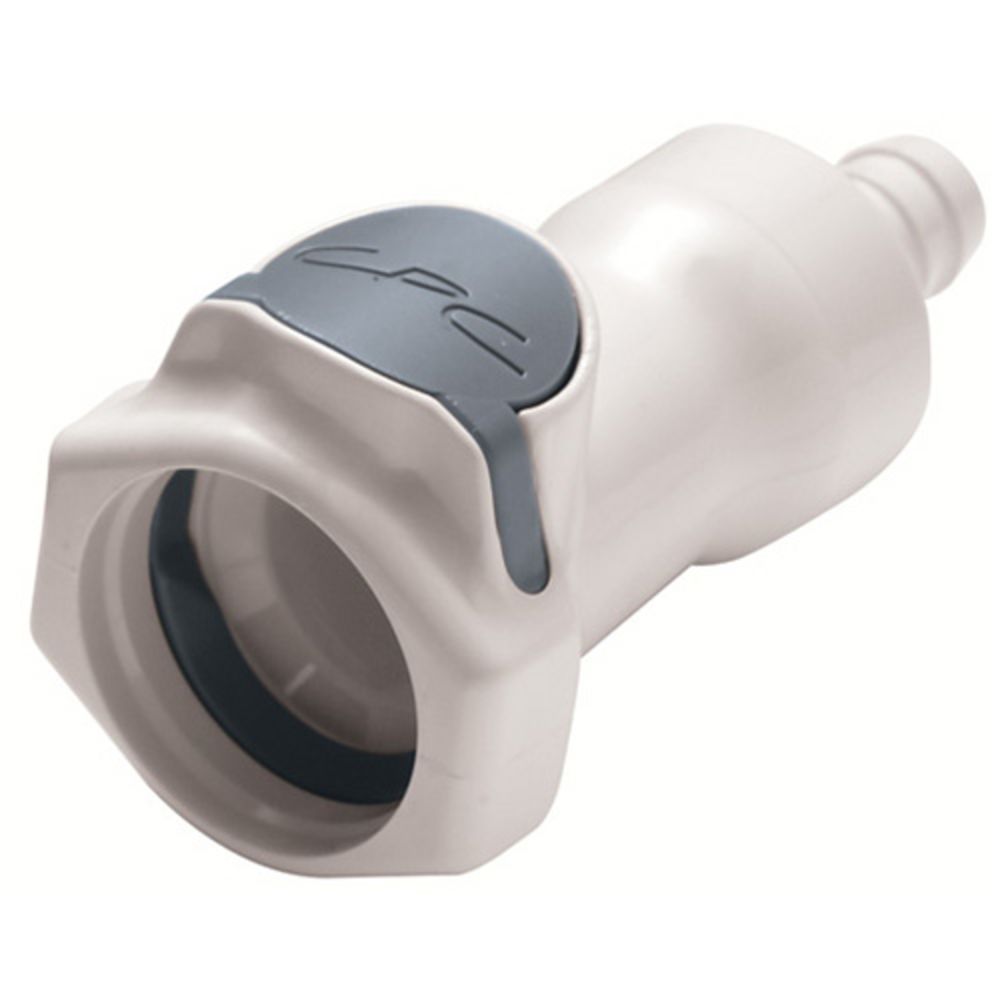

85600 NSF Valved In-Line Hose Barb Coupling Body 3/8 ID Barb

Part Number: 85600

Alt. Part Number: HFCD17635 (Non-NSF)

In Stock

out of stock

In Stock

$15.85

Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are sutiable for use in water and beverage lines or food and condiment dispensing.

Specifications:
  • Material: Polysulfone
  • Material Finish: Molded White
  • Color: Gray
  • Valve Option: Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Temperature Range: -40°F to 280°F
  • Seal Options: FDA EPDM
  • Valve Spring: 316 Stainless Steel


Details

Series

HFC35

Barb Size

3/8" ID

Bag Quantity

10

Body Material

Polysulfone

Color / Finish

Grey

Max Operating Pressure

Vacuum to 125 PSI, 8.6 bar

Operating Temperature Range

-40-280 °F

Seal Material

FDA EPDM

Spring

316 Stainless Steel

Valve Type

Valved


85600




Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are sutiable for use in water and beverage lines or food and condiment dispensing.

Specifications:
  • Material: Polysulfone
  • Material Finish: Molded White
  • Color: Gray
  • Valve Option: Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Temperature Range: -40°F to 280°F
  • Seal Options: FDA EPDM
  • Valve Spring: 316 Stainless Steel

Details

Series

HFC35

Barb Size

3/8" ID

Bag Quantity

10

Body Material

Polysulfone

Color / Finish

Grey

Max Operating Pressure

Vacuum to 125 PSI, 8.6 bar

Operating Temperature Range

-40-280 °F

Seal Material

FDA EPDM

Spring

316 Stainless Steel

Valve Type

Valved
