Colder Products

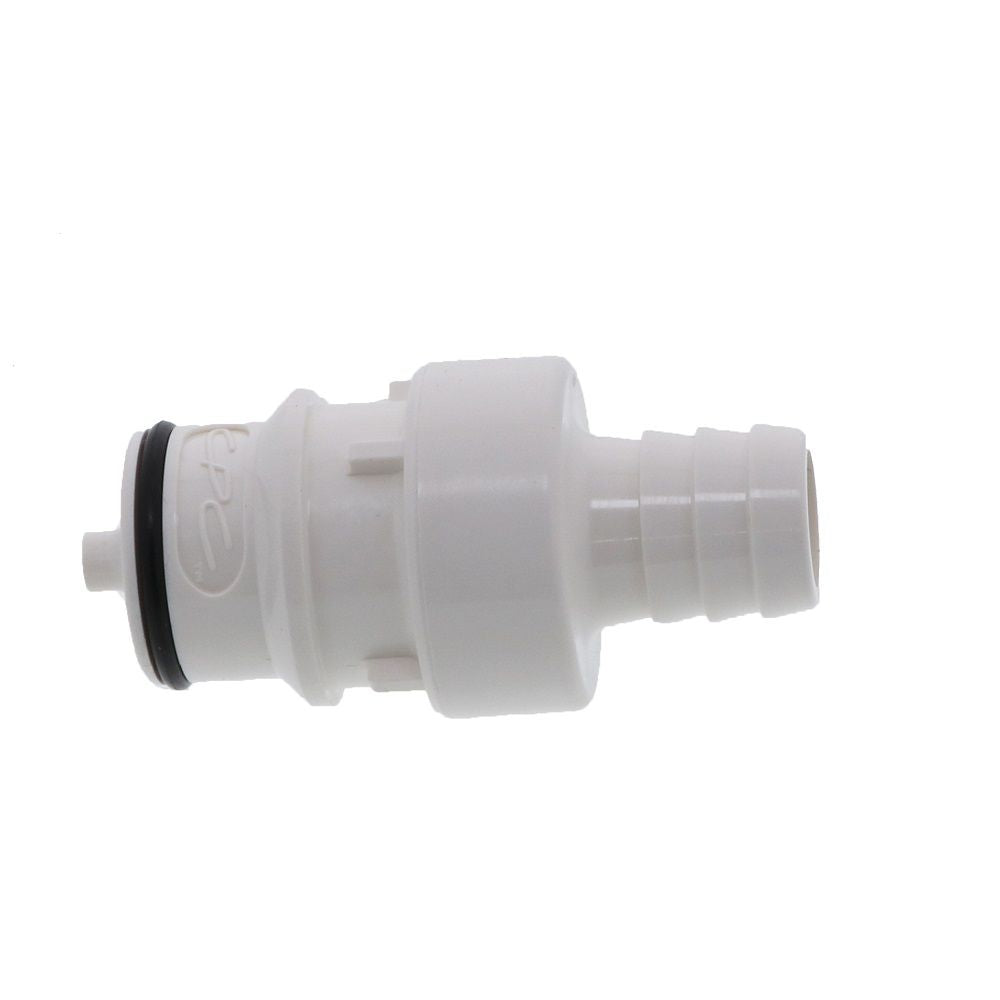

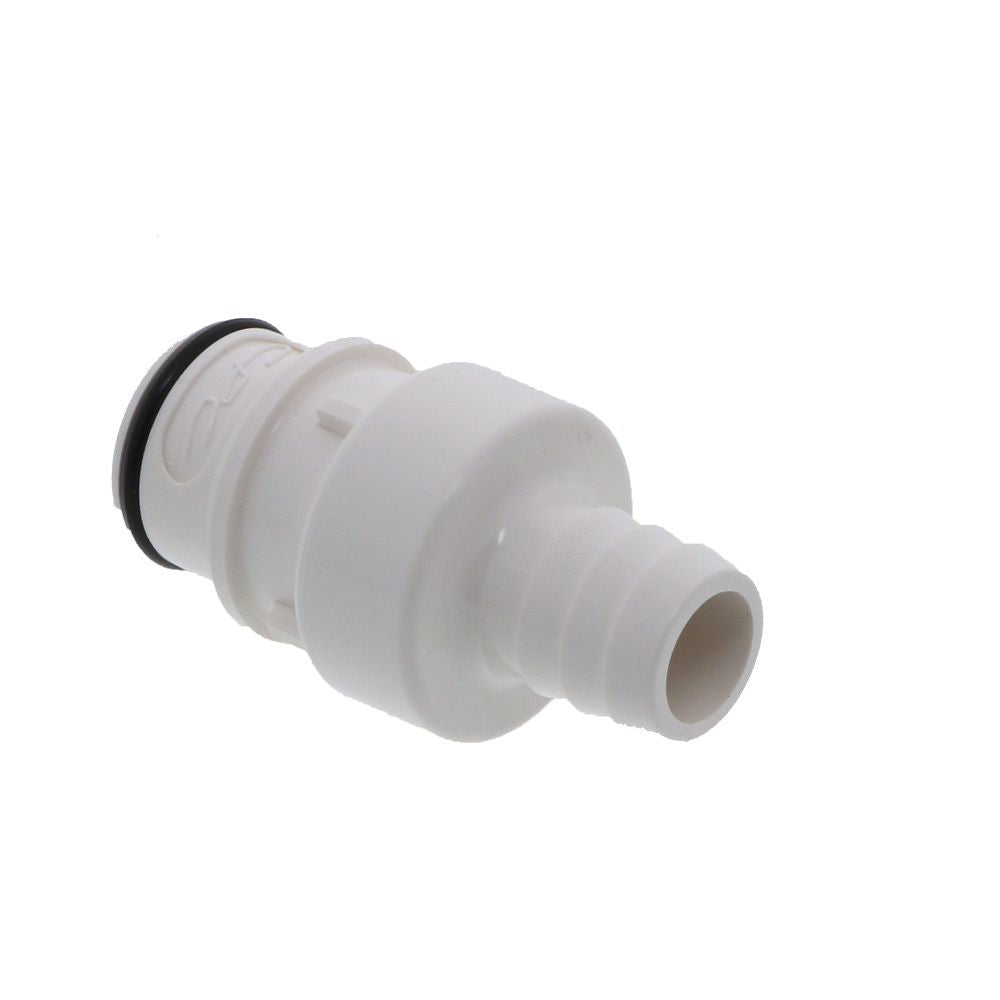

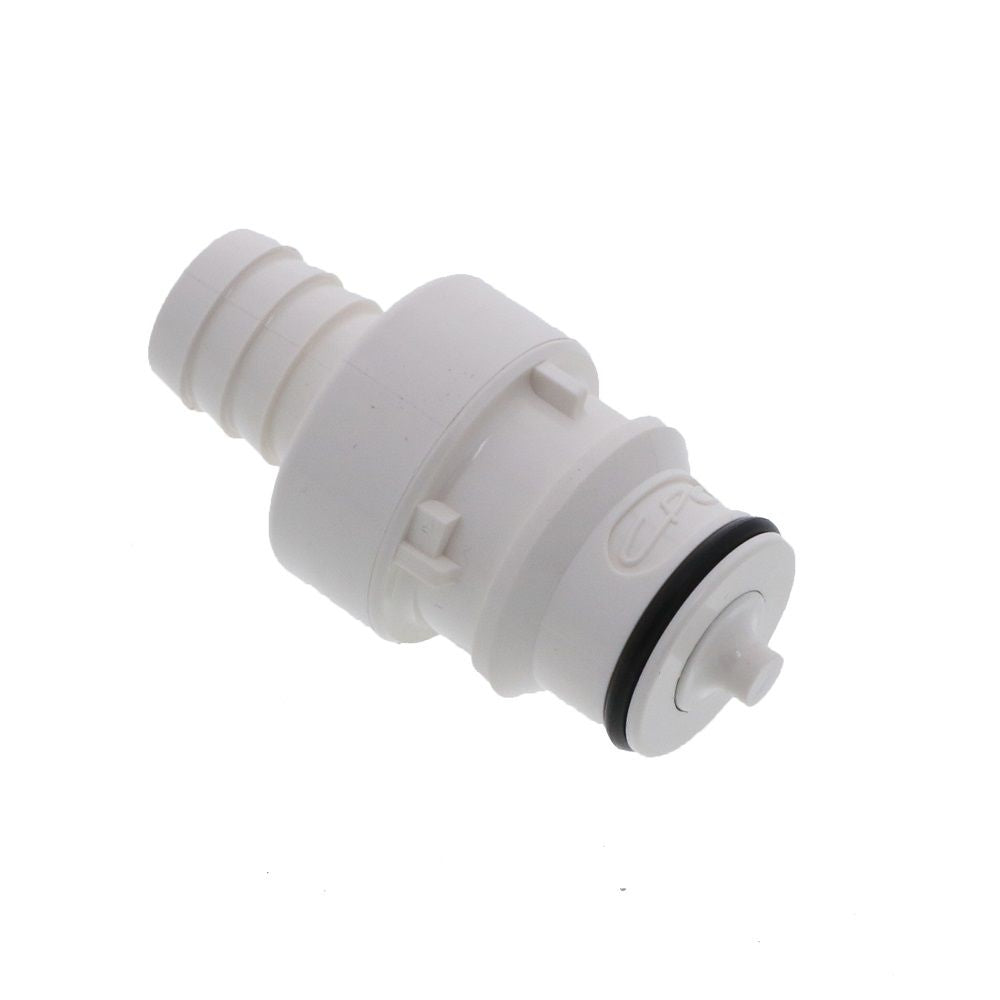

81000 NSF Valved In-Line Hose Barb Coupling Insert 1/2 ID Barb

Part Number: 81000

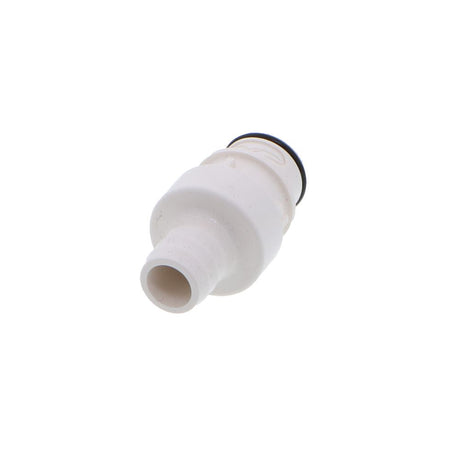

Alt. Part Number: HFCD22835 (Non-NSF)

In Stock

out of stock

In Stock

$11.46


Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are sutiable for use in water and beverage lines or food and condiment dispensing.

Specifications:
  • Material: Polysulfone
  • Material Finish: Molded White
  • Color: Gray
  • Valve Option: Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Temperature Range: -40°F to 280°F
  • Seal Options: FDA EPDM
  • Valve Spring: 316 Stainless Steel


Details

Series

HFC35

Barb Size

1/2"

Bag Quantity

10

Body Material

Polysulfone

Box Quantity

100

Color / Finish

Gray, Molded White

O Rings

EPDM

Operating Pressure Range

Vacuum to 125 psi, 8.6 bar PSI

Operating Temperature Range

-40 to 280 Degrees Fahrenheit

Seal Material

FDA EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 Stainless Steel

Thumb Latch

Polysulfone


81000





Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are sutiable for use in water and beverage lines or food and condiment dispensing.

Specifications:
  • Material: Polysulfone
  • Material Finish: Molded White
  • Color: Gray
  • Valve Option: Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Temperature Range: -40°F to 280°F
  • Seal Options: FDA EPDM
  • Valve Spring: 316 Stainless Steel

Details

Series

HFC35

Barb Size

1/2"

Bag Quantity

10

Body Material

Polysulfone

Box Quantity

100

Color / Finish

Gray, Molded White

O Rings

EPDM

Operating Pressure Range

Vacuum to 125 psi, 8.6 bar PSI

Operating Temperature Range

-40 to 280 Degrees Fahrenheit

Seal Material

FDA EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 Stainless Steel

Thumb Latch

Polysulfone

Documentation
81000

Reviews
