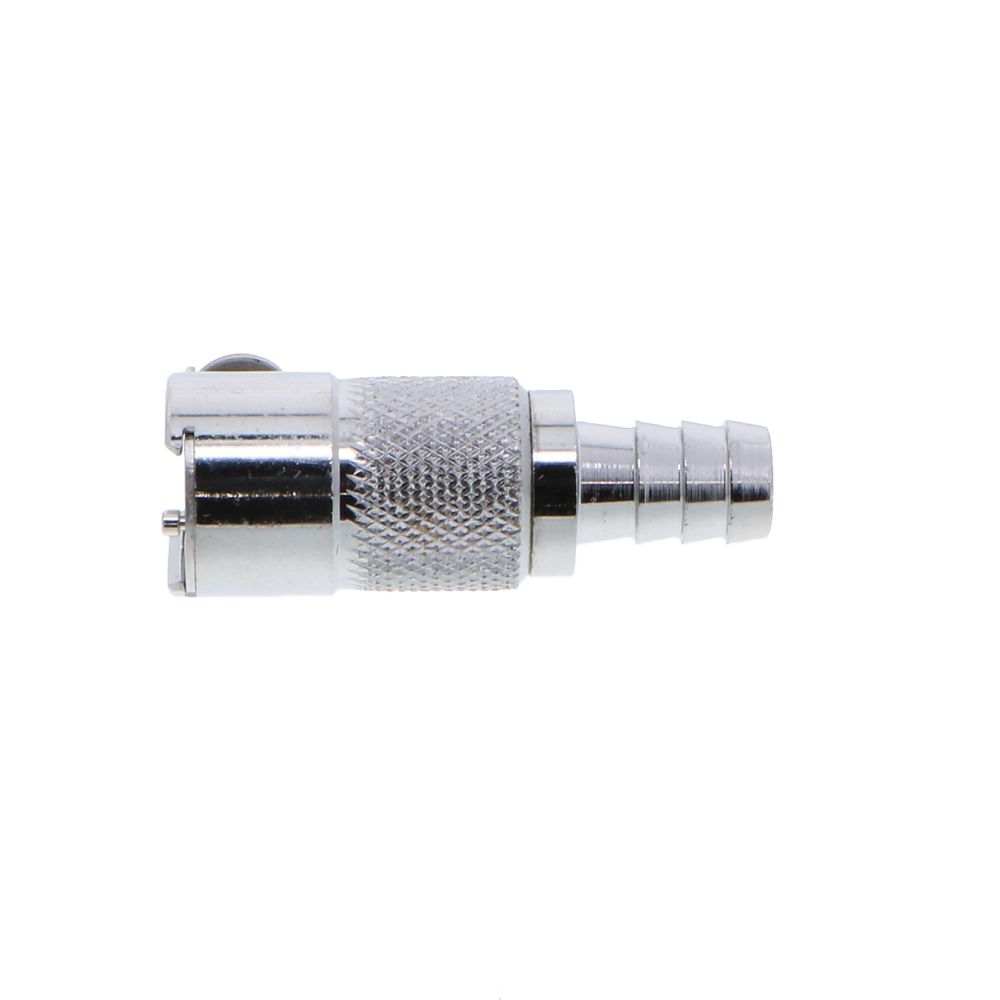

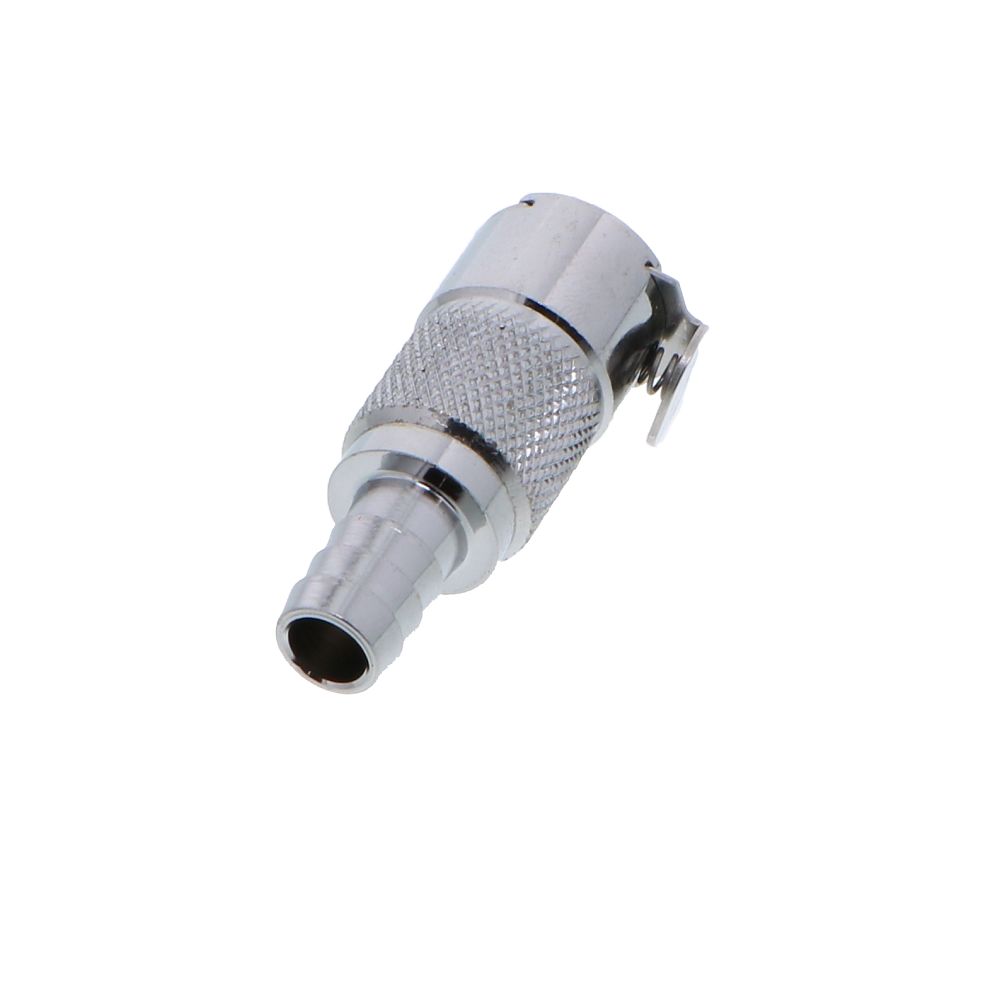

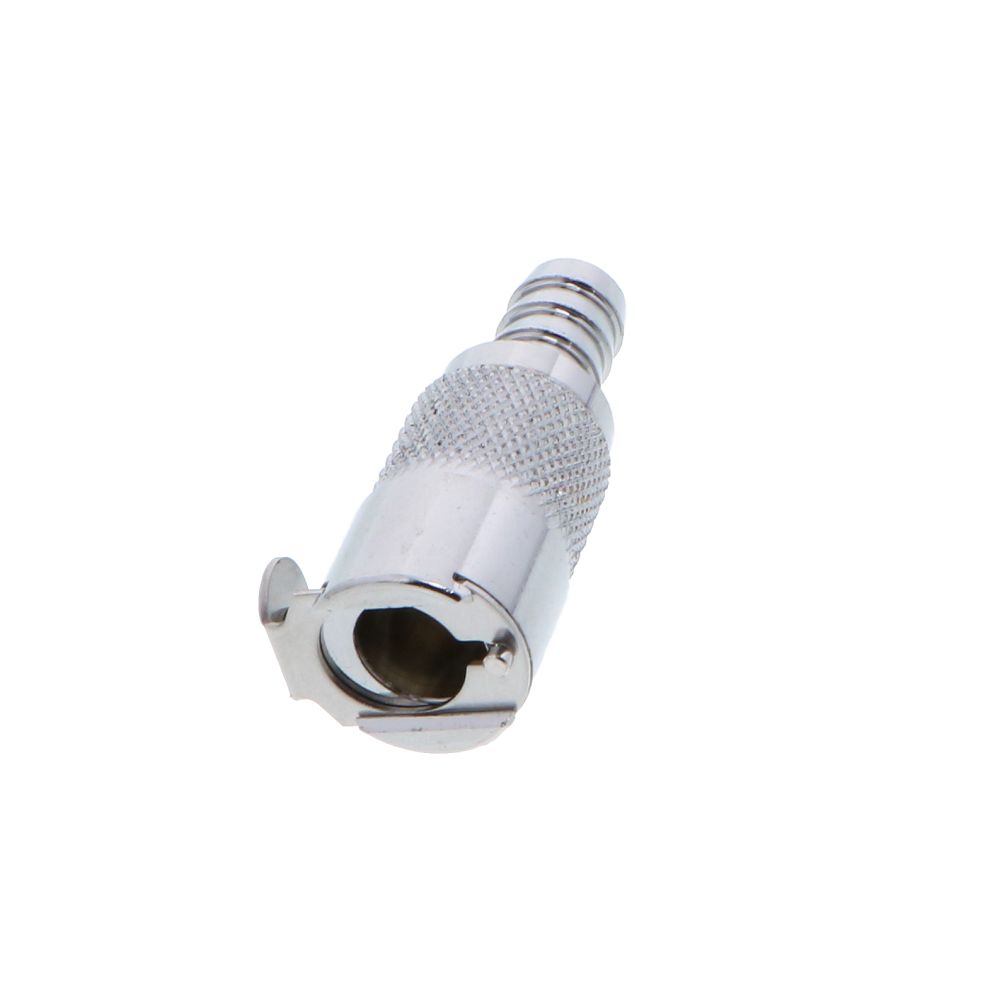

76400 NSF Non-Valved In-Line Hose Barb Coupling Body 3/8 ID Barb
Part Number: 76400

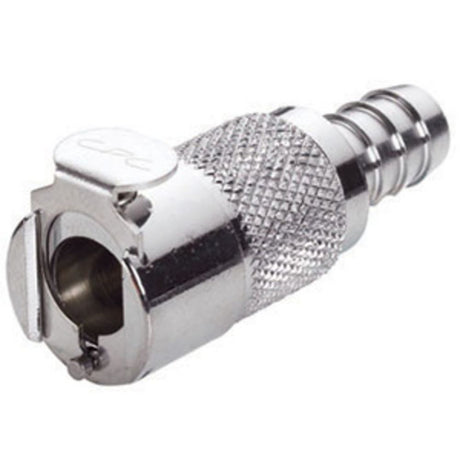

Alt. Part Number: LC17006 (Non-NSF)
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome
- Pressure range: Vacuum to 250 psi, 17.3 bar
- Mounting Option: Free Floating
- Temperature Range: -40°F to 180°F (-40°C to 82°C)
- Valve Option: Non-Valved
WARNING!
| Product Details | |
|---|---|
Application | Water |
Barb Size | 3/8" ID |
Body Material | Chrome-Plated Brass |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nsf Version | Yes |
Number Of Seals | 0 |
Series | LC |
Shape | Straight |
Spring | 316 Stainless steel |
Thumb Latch | Stainless steel |
Valve Type | Non-Valved |
Color / Finish | Chrome |
Type | Coupling Body |
| Warranty & Certifications | |
Certifications | NSF 169 |
