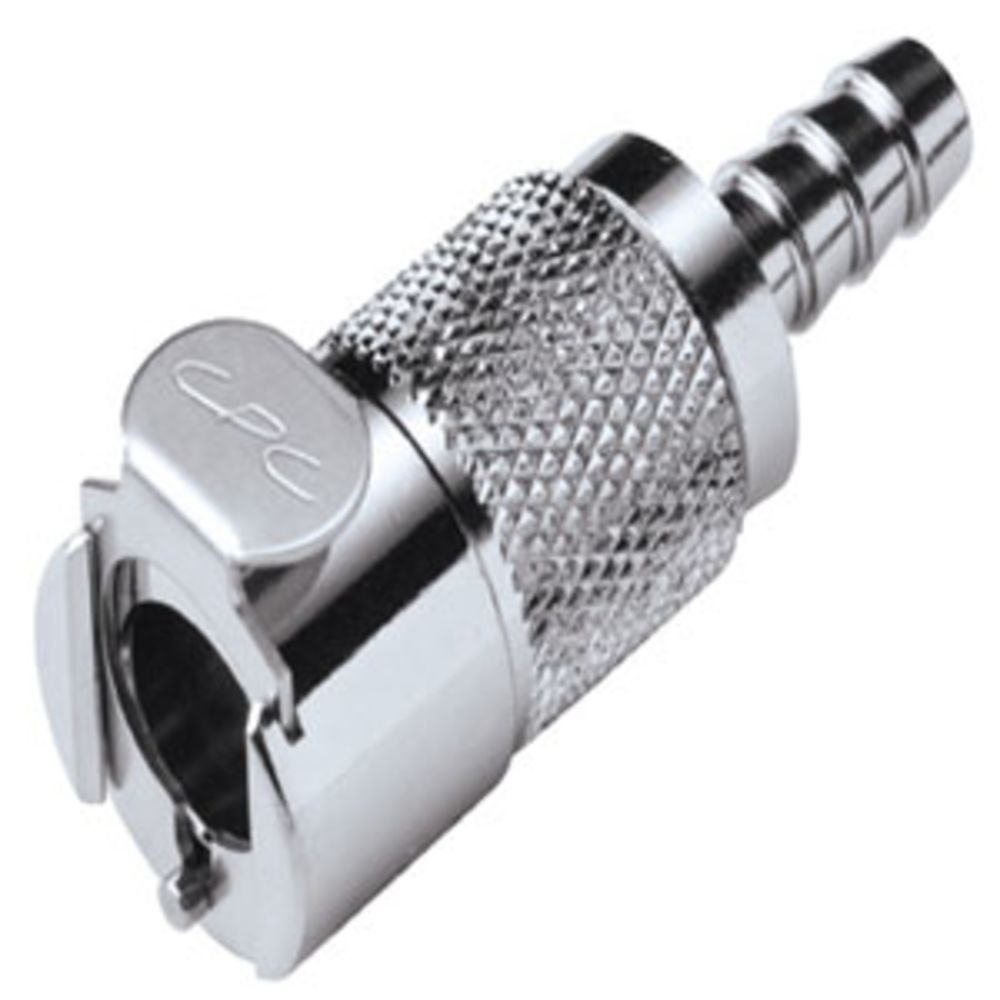

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome
- Pressure range: Vacuum to 250 psi, 17.3 bar
- Mounting Option: Free Floating
- Temperature Range: -40°F to 180°F (-40°C to 82°C)
- Valve Option: Non-Valved
Weight & Dimensions
Weight (lbs) | 0.5 |
Details
Application | Water |
Barb Size | 1/4" ID |
Body Material | Chrome-Plated Brass |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Series | LC |
Spring | 316 Stainless steel |
Thumb Latch | Stainless steel |
Valve Type | Non-Valved |
Color / Finish | Chrome |
Type | Coupling Body |
Warranty & Certifications
Certifications | NSF 169 |
Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome
- Pressure range: Vacuum to 250 psi, 17.3 bar
- Mounting Option: Free Floating
- Temperature Range: -40°F to 180°F (-40°C to 82°C)
- Valve Option: Non-Valved
Weight & Dimensions
Weight (lbs) | 0.5 |
Details
Application | Water |
Barb Size | 1/4" ID |
Body Material | Chrome-Plated Brass |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Series | LC |
Spring | 316 Stainless steel |
Thumb Latch | Stainless steel |
Valve Type | Non-Valved |
Color / Finish | Chrome |
Type | Coupling Body |
Warranty & Certifications
Certifications | NSF 169 |
