Colder Products

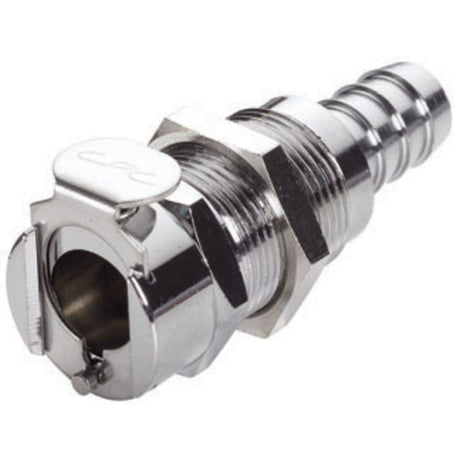

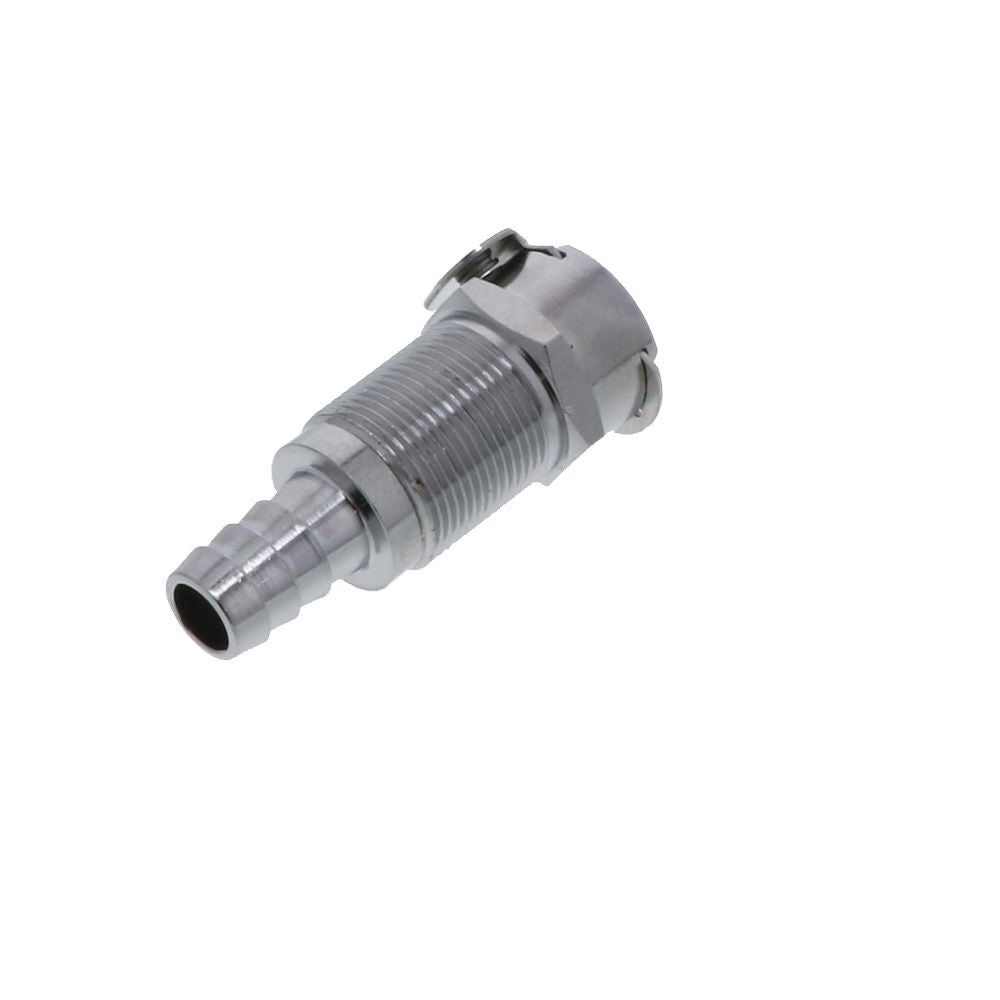

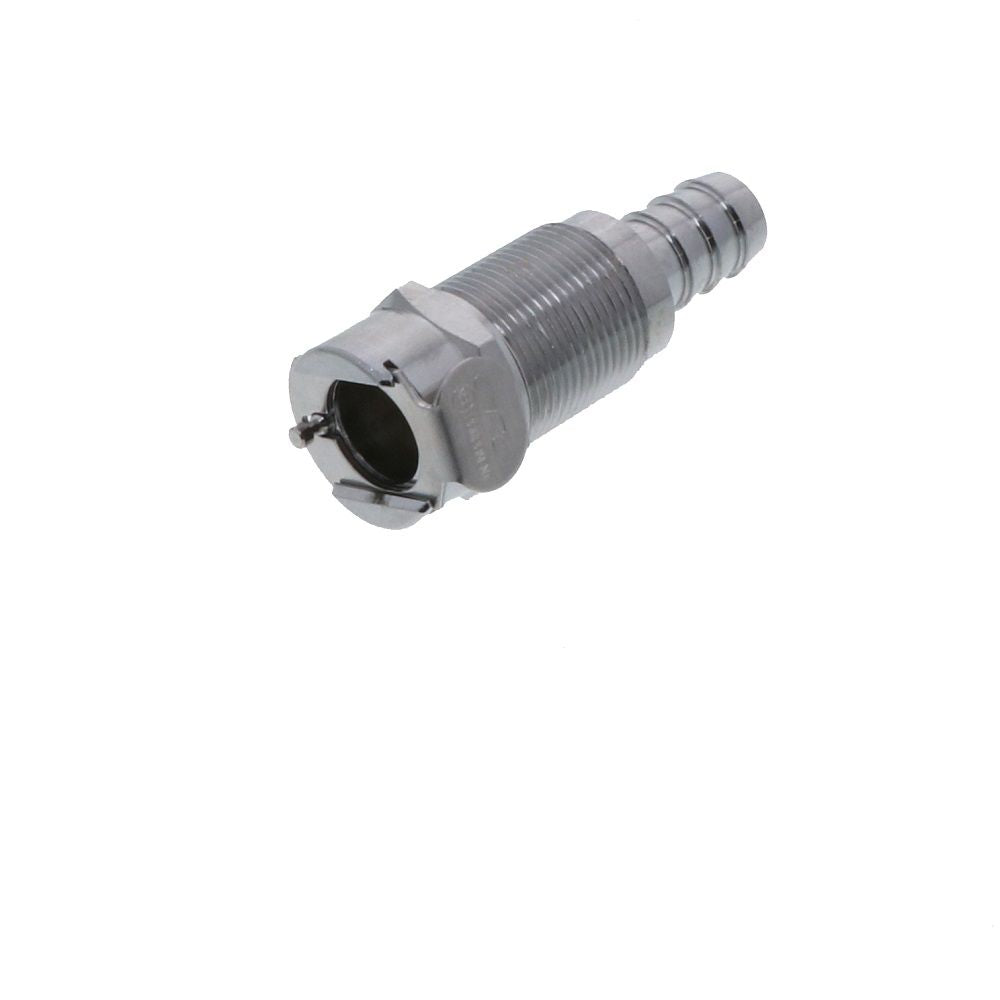

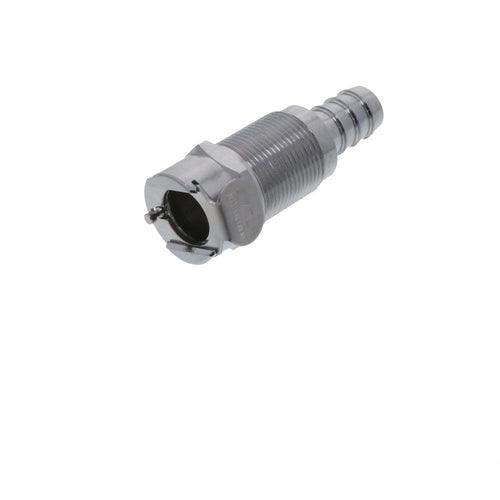

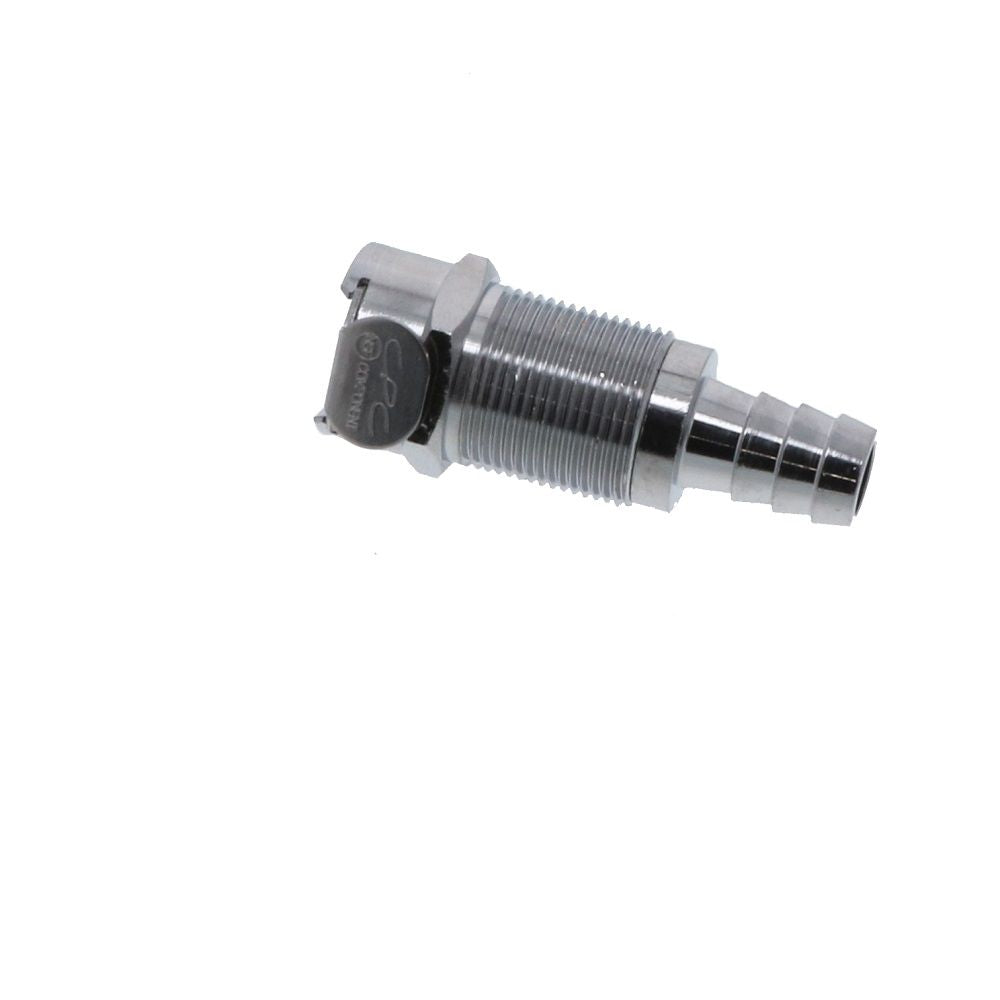

75700 NSF Non-Valved Panel Mount Hose Barb Coupling Body 3/8 ID Barb

Part Number: 75700

Alt. Part Number: LC16006 (Non-NSF)

In Stock

out of stock

In Stock

$20.18

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Panel Mount
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Pressure range: Vacuum to 250 psi, 17.3 bar
  • Valve Option: Non-Valved




Weight & Dimensions

Height (inches)

0.875

Length (inches)

2

Weight (lbs)

0.126

Width (inches)

0.875

Details

Application

Water

Barb Size

3/8" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Series

LC

Spring

316 Stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

Chrome

Type

Coupling Body

Warranty & Certifications

Certifications

NSF 169


75700




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Panel Mount
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Pressure range: Vacuum to 250 psi, 17.3 bar
  • Valve Option: Non-Valved



Weight & Dimensions

Height (inches)

0.875

Length (inches)

2

Weight (lbs)

0.126

Width (inches)

0.875

Details

Application

Water

Barb Size

3/8" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Series

LC

Spring

316 Stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

Chrome

Type

Coupling Body

Warranty & Certifications

Certifications

NSF 169
