Colder Products

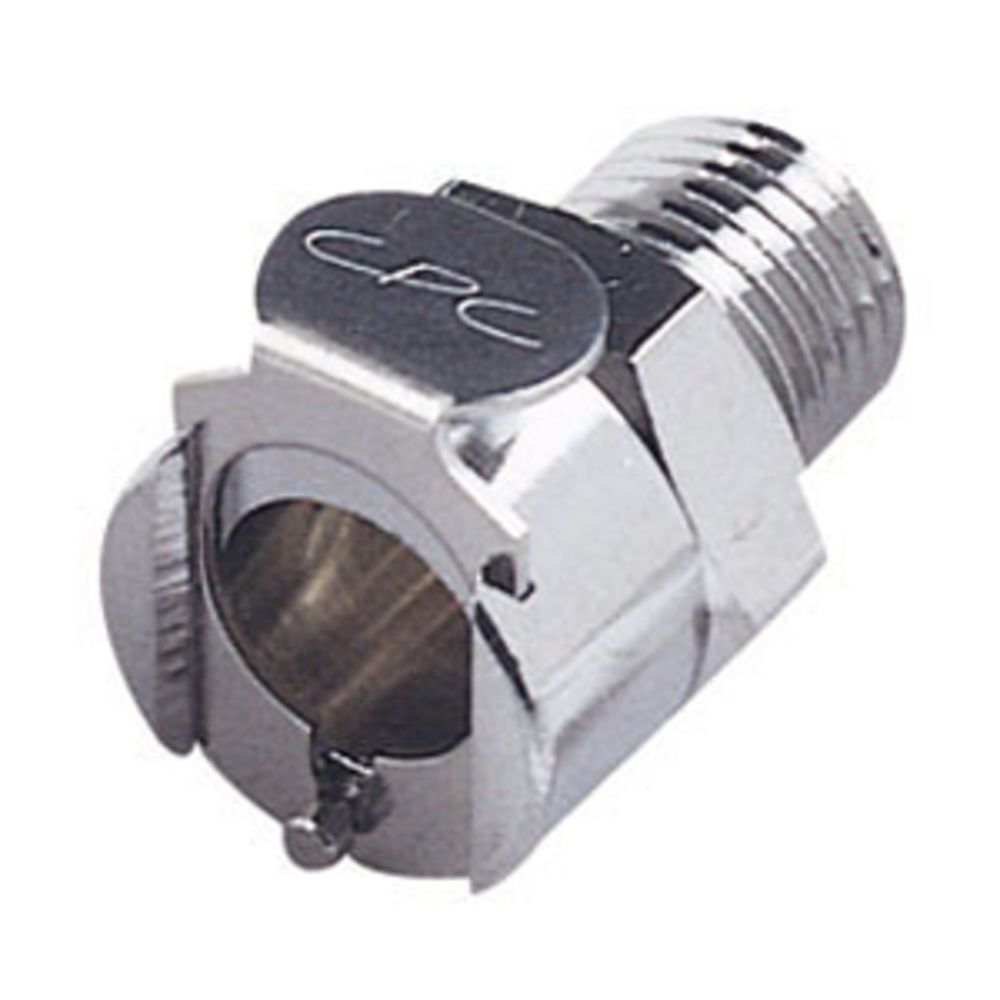

74800 NSF Valved Coupling Body 1/4 BSPT

Part Number: 74800

Alt. Part Number: LCD10004BSPT (Non-NSF)

In Stock

out of stock

In Stock

$15.71

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Thread
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Pressure range: Vacuum to 250 psi, 17.3 bar
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved




Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

1/4" BSP

Warranty & Certifications

Certifications

NSF 169


74800




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Thread
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Pressure range: Vacuum to 250 psi, 17.3 bar
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved



Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

1/4" BSP

Warranty & Certifications

Certifications

NSF 169
