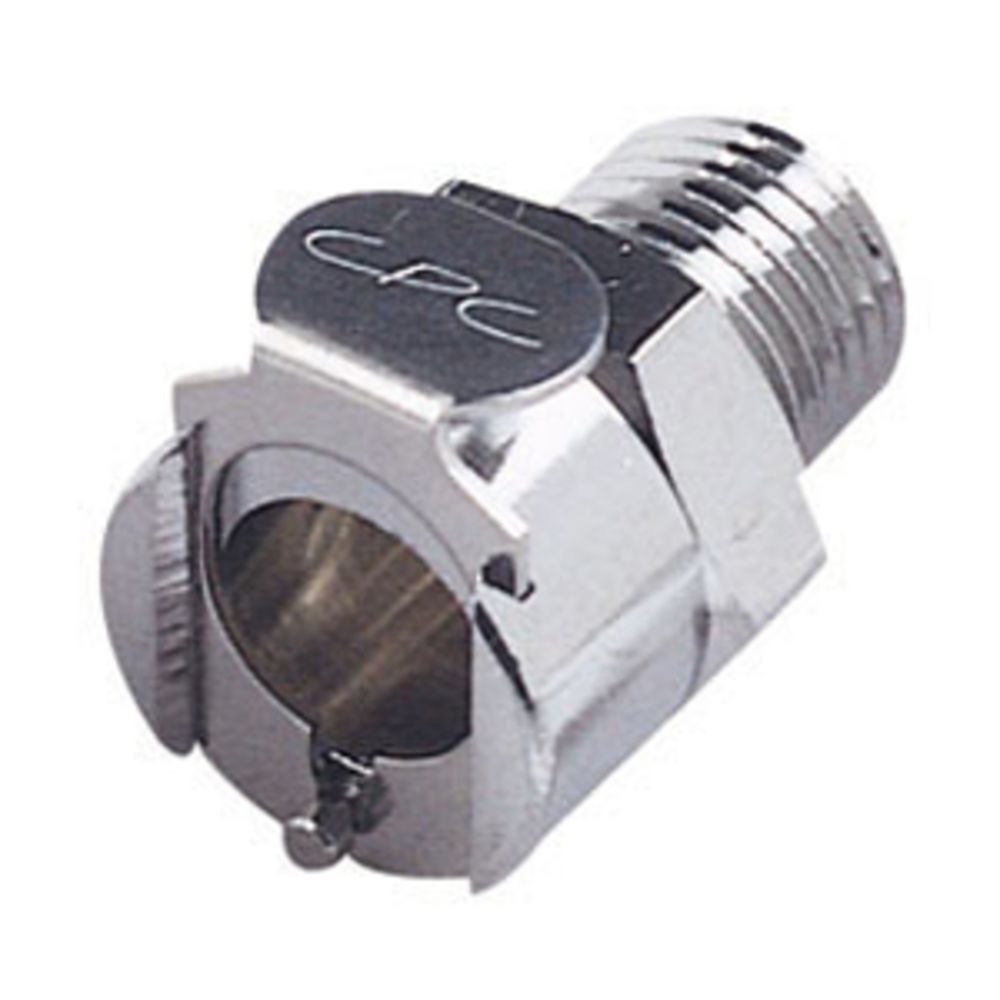

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome
- Mounting Option: Thread
- Temperature Range: -40°F to 180°F (-40°C to 82°C)
- Pressure range: Vacuum to 250 psi, 17.3 bar
- Seal Options: FDA BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
Details
Series | LC |
Bag Quantity | 10 |
Body Material | Chrome-Plated Brass |
Color / Finish | Chrome |
Mounting Options | Thread |
Operating Pressure Range | Vacuum to 250 psi, 17.3 bar PSI |
Operating Temperature Range | -40 to 180 Degrees Fahrenheit |
Origin | USA |
Seal Material | FDA BUNA-N |
Size | 1/4" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
External Springs And Pin | Stainless Steel |
Thumb Latch | Stainless Steel |
Inlet/Outlet Connection | 1/4" | MPT |
Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome
- Mounting Option: Thread
- Temperature Range: -40°F to 180°F (-40°C to 82°C)
- Pressure range: Vacuum to 250 psi, 17.3 bar
- Seal Options: FDA BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
Details
Series | LC |
Bag Quantity | 10 |
Body Material | Chrome-Plated Brass |
Color / Finish | Chrome |
Mounting Options | Thread |
Operating Pressure Range | Vacuum to 250 psi, 17.3 bar PSI |
Operating Temperature Range | -40 to 180 Degrees Fahrenheit |
Origin | USA |
Seal Material | FDA BUNA-N |
Size | 1/4" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
External Springs And Pin | Stainless Steel |
Thumb Latch | Stainless Steel |
Inlet/Outlet Connection | 1/4" | MPT |
