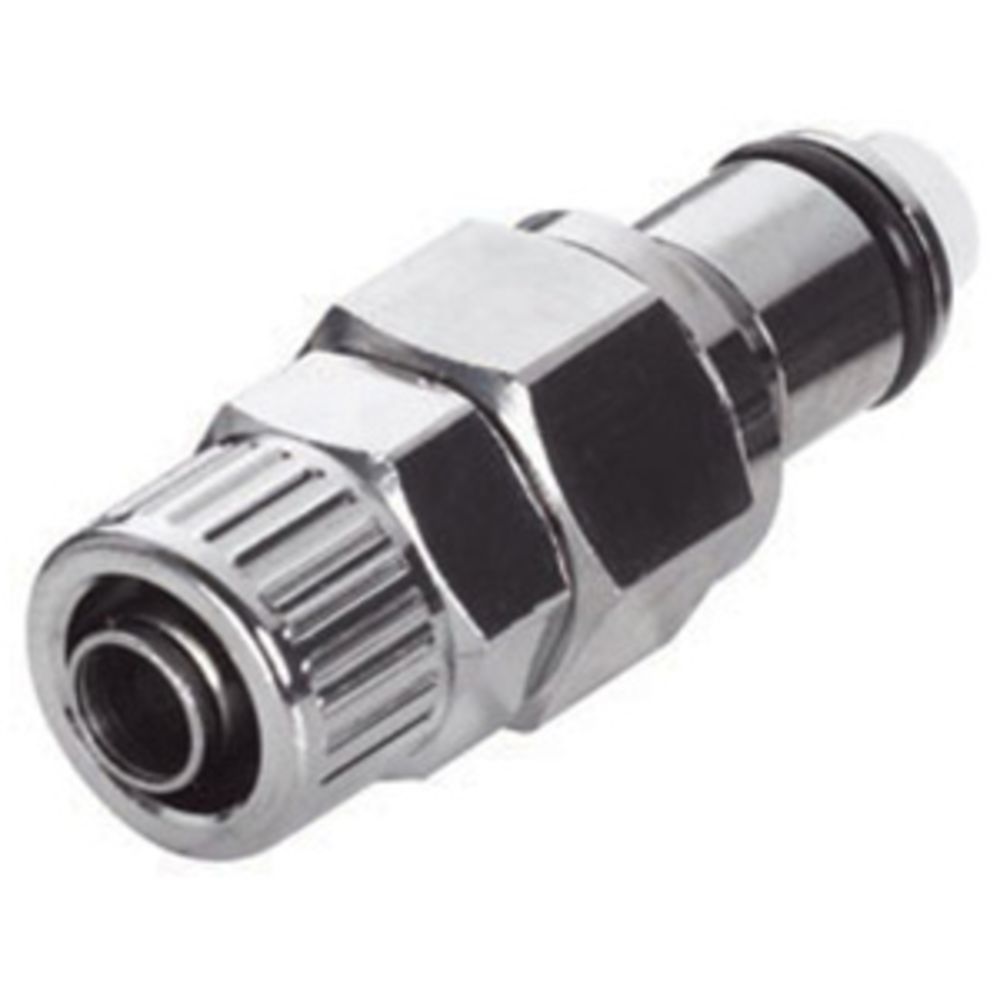

73600 NSF Valved In-Line Coupling Insert 3/8 PTF

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:

Material: Brass
Material Finish: Chrome
Color: Chrome
Mounting Option: Free Floating
Temperature Range: -40°F to 180°F (-40°C to 82°C)
Seal Options: FDA BUNA-N
Valve Spring: 316 Stainless Steel
Valve Option: Valved

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Chrome-Plated Brass
External Springs And Pin	Stainless Steel
Inlet Connection	3/8" FPT
Max Pressure (Psi)	250
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	Yes
Number Of Seals	2
Outlet Connection	3/8" FPT
Push-In Size	3/8" OD
Seal Material	Buna-N
Series	LC
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Stainless Steel
Valve Type	Valved
Color / Finish	Chrome
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169

Product Details
Application	Water
Body Material	Chrome-Plated Brass
External Springs And Pin	Stainless Steel
Inlet Connection	3/8" FPT
Max Pressure (Psi)	250
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	Yes
Number Of Seals	2
Outlet Connection	3/8" FPT
Push-In Size	3/8" OD
Seal Material	Buna-N
Series	LC
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Stainless Steel
Valve Type	Valved
Color / Finish	Chrome
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
