Colder Products

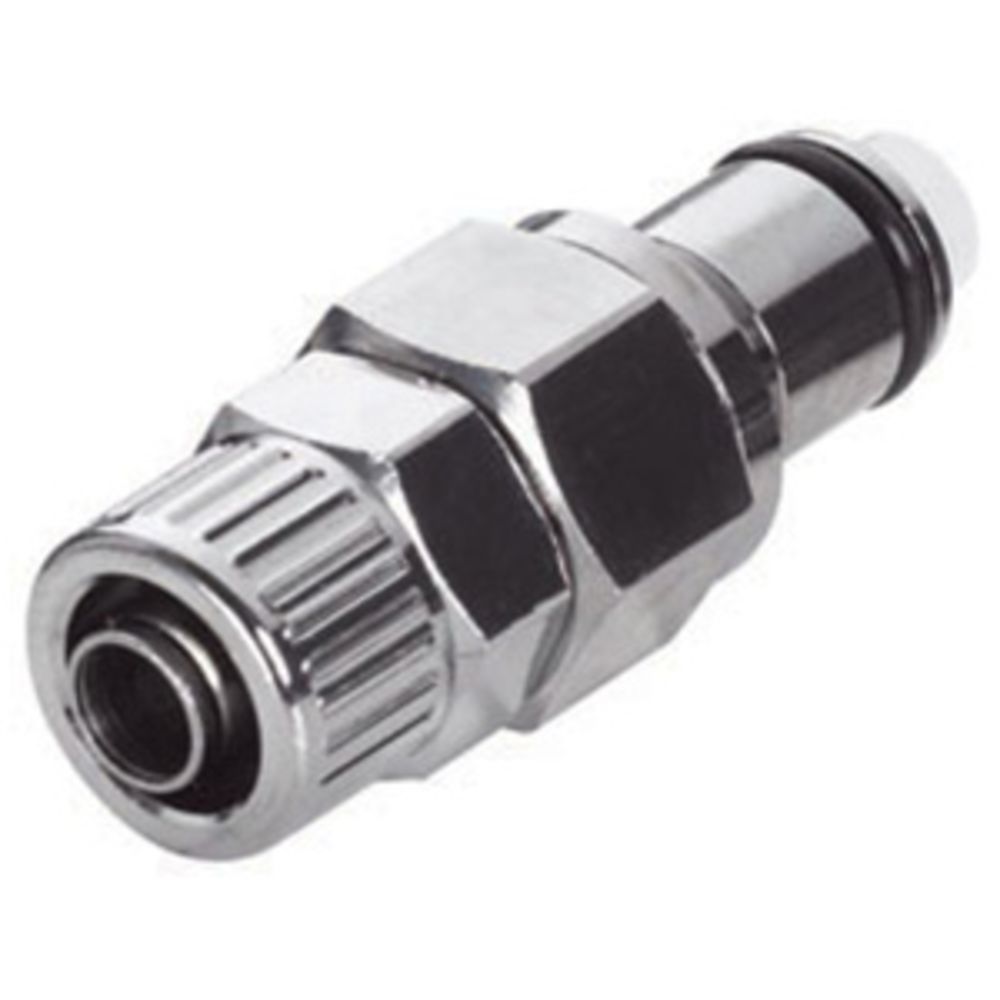

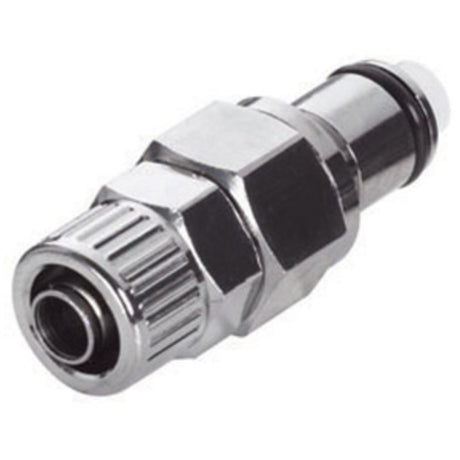

73500 NSF Non-Valved In-Line Coupling Insert 3/8 PTF

Part Number: 73500

Alt. Part Number: LC20006 (Non-NSF)

In Stock

out of stock

In Stock

$10.21

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Free Floating
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Seal Options: FDA BUNA-N
  • Valve Option: Non-Valved




Weight & Dimensions

Weight (lbs)

0.5

Details

Application

Water

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

3/8" OD

Seal Material

Buna-N

Series

LC

Size

3/8"

Spring

316 Stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

Chrome

Connection Type

Female (FPT)

Type

Coupling Insert

Warranty & Certifications

Certifications

NSF 169


73500




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Free Floating
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Seal Options: FDA BUNA-N
  • Valve Option: Non-Valved



Weight & Dimensions

Weight (lbs)

0.5

Details

Application

Water

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

3/8" OD

Seal Material

Buna-N

Series

LC

Size

3/8"

Spring

316 Stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

Chrome

Connection Type

Female (FPT)

Type

Coupling Insert

Warranty & Certifications

Certifications

NSF 169
