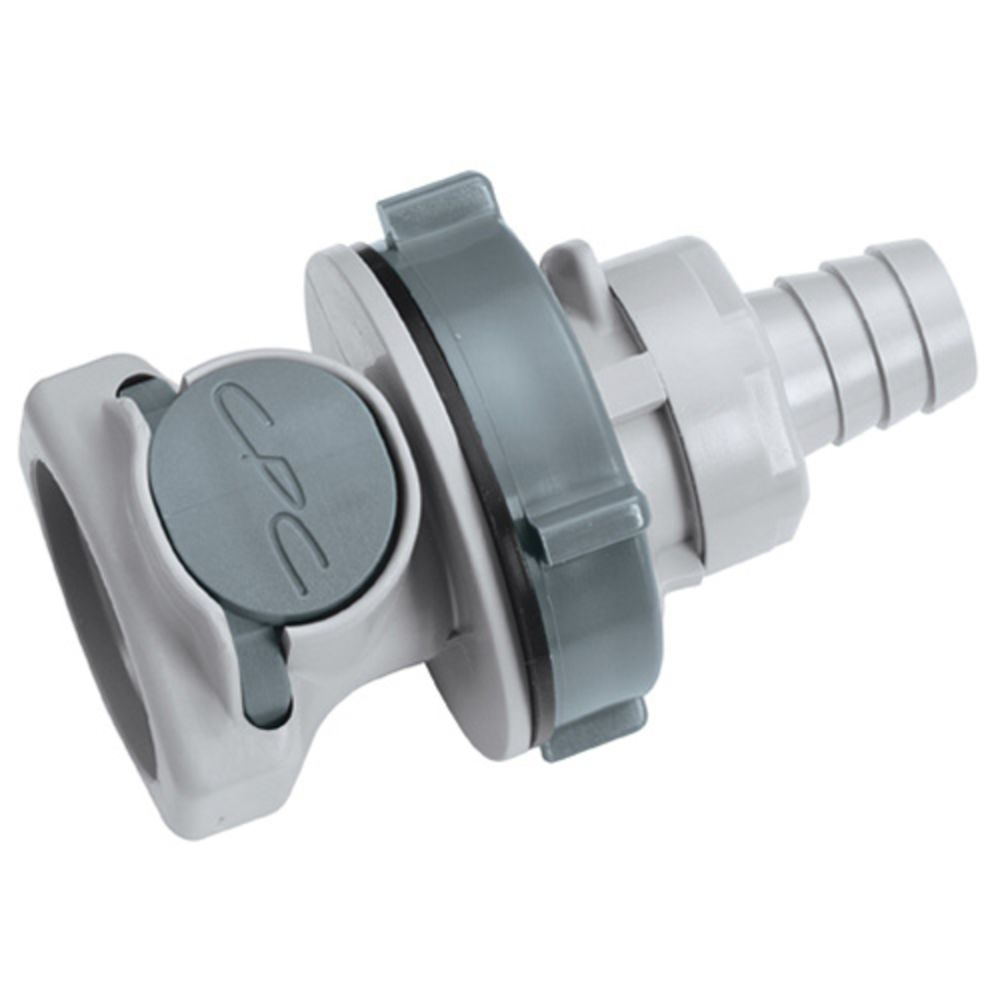

63900 NSF Non-Valved Panel Mount Hose Barb Coupling Body 1/2 ID Barb
Part Number: 63900
Alt. Part Number: HFC16812 (Non-NSF), 60PP-S3-08
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Valve Option: Non-Valved
- Mounting Option: Panel Mount
- Temperature Range: 32°F to 160°F
- Pressure Range: Vacuum to 60 psi, 4.2 bar
- Color: Gray
- Seal Options: FDA EPDM
- Valve Spring: 316 Stainless Steel
Product Details | |
---|---|
Application | Water |
Barb Size | 1/2" ID |
Body Material | Polypropylene |
Max Pressure (Psi) | 60 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Panel Mount |
Nsf Version | Yes |
Number Of Seals | 0 |
Seal Material | FDA EPDM |
Series | HFC12 |
Shape | Straight |
Spring | 316 Stainless Steel |
Valve Type | Non-Valved |
Color / Finish | Gray |
Type | Coupling Body |
Warranty & Certifications | |
Certifications | NSF 169 |
