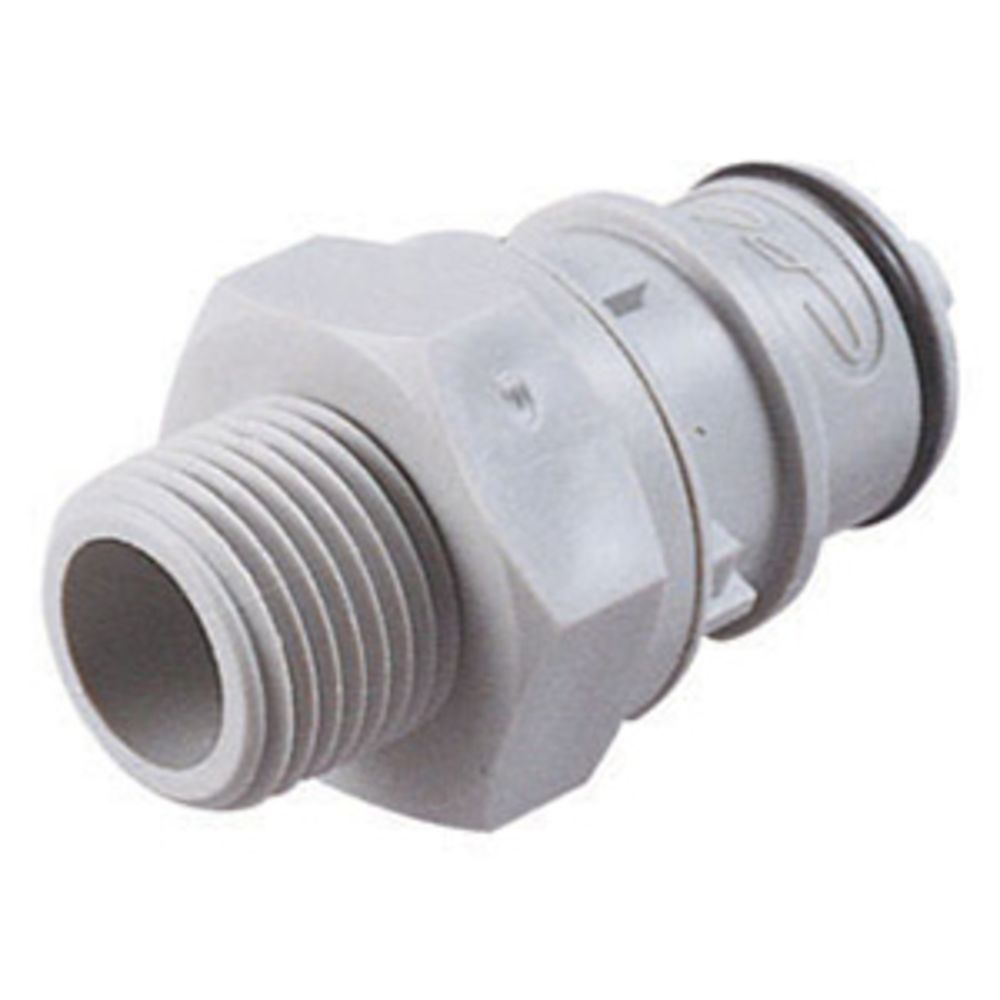

60500 NSF Valved Coupling Insert 3/8 NPT

Colder APC Series Couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:

Material: Polypropylene
Material Finish: Molded Grey
Valve Option: Valved
Mounting Option: Thread
Temperature Range: 32°F to 160°F
Pressure Range: Vacuum to 60 psi, 4.2 bar
Color: Gray
Seal Options: FDA BUNA-N
Valve Spring: 316 Stainless Steel

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Polypropylene
Inlet Connection	3/8" MPT
Max Pressure (Psi)	60
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	Yes
Number Of Seals	2
Nut / Fitting Material	Polypropylene
Outlet Connection	3/8" MPT
Seal Material	FDA Buna-N
Series	HFC12
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Polypropylene
Valve Type	Valved
Color / Finish	Gray
Connection Type	Male (MPT)
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169

Product Details
Application	Water
Body Material	Polypropylene
Inlet Connection	3/8" MPT
Max Pressure (Psi)	60
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	Yes
Number Of Seals	2
Nut / Fitting Material	Polypropylene
Outlet Connection	3/8" MPT
Seal Material	FDA Buna-N
Series	HFC12
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Polypropylene
Valve Type	Valved
Color / Finish	Gray
Connection Type	Male (MPT)
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169

Product Details
Application	Water
Body Material	Polypropylene
Inlet Connection	3/8" MPT
Max Pressure (Psi)	60
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	Yes
Nut / Fitting Material	Polypropylene
Outlet Connection	3/8" MPT
Seal Material	FDA Buna-N
Series	HFC12
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Polypropylene
Valve Type	Valved
Color / Finish	Gray
Connection Type	Male (MPT)
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169

60500 NSF Valved Coupling Insert 3/8 NPT Manual
