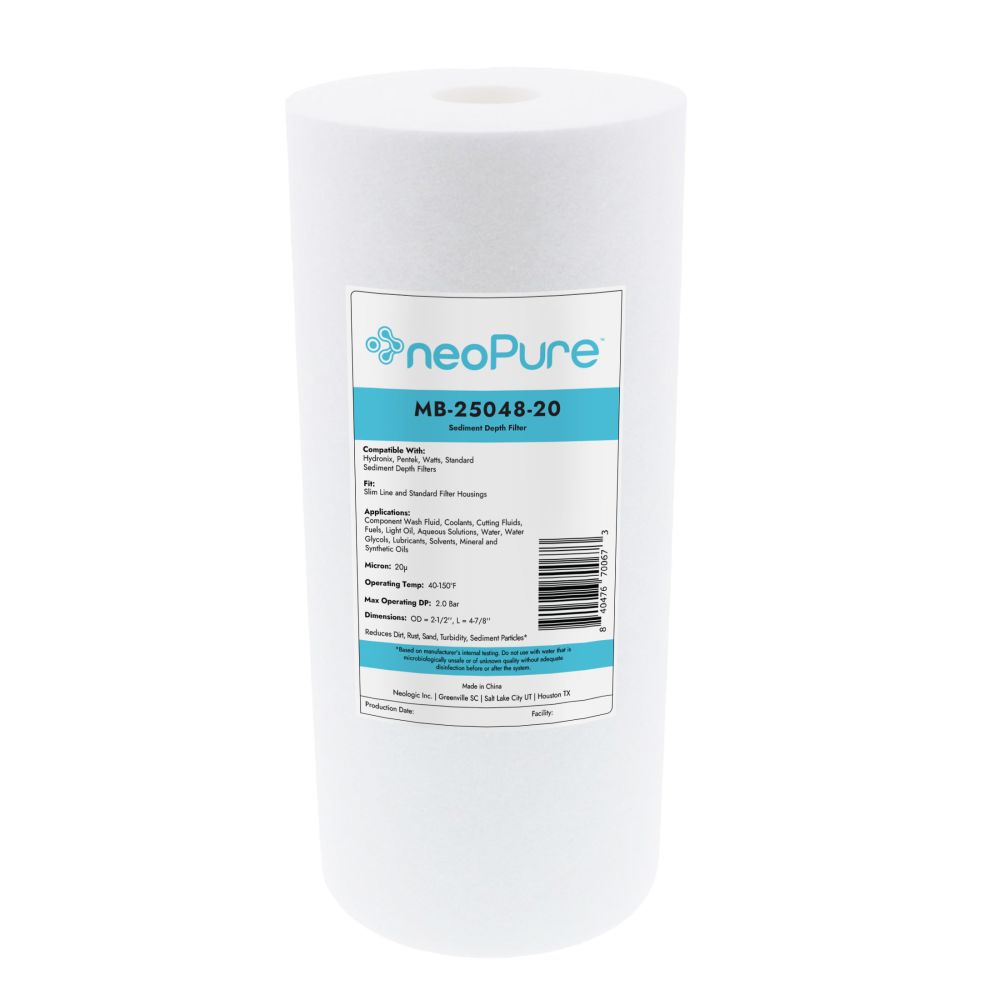

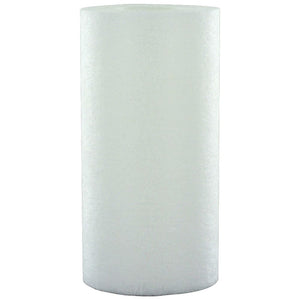

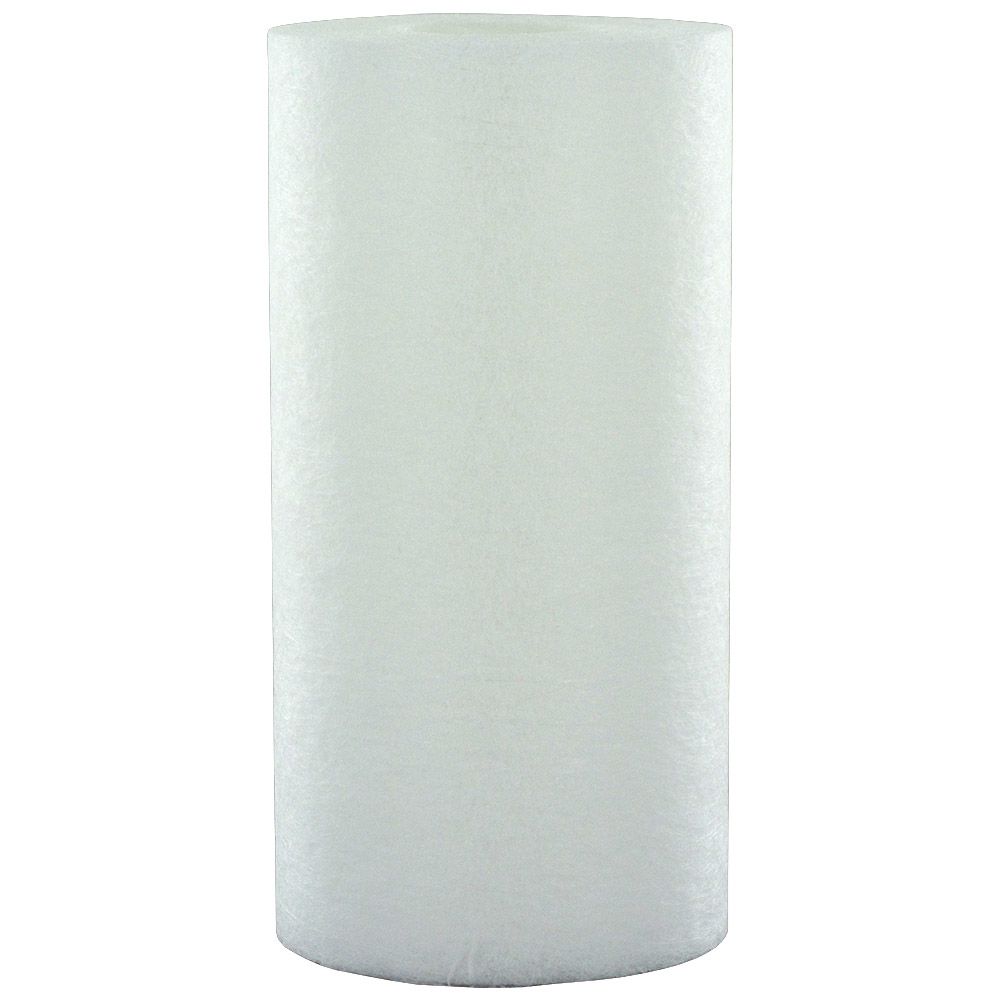

5" Polypropylene Sediment Depth Filter 20 mic

Neo-Pure MB-25048-20 is a High Efficiency 2-1/2" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 2-1/2" sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-25048-20 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Features:

Low cost
Excellent chemical resistance
Food grade ingredients
No leachables
High dirt holding capacity

Applications:

Potable water
Beverages
Pre-filtration for reverse osmosis equipment
Fine chemicals
Electronics
Plating solutions and more

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Max Temp (°F)	140
Micron Rating (Nominal)	20 µm
Psid@Flow Rate	<1 psid typical
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Flow Rate	2-8 GPM
Media Type	Polypropylene
Micron Rating	20 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	5 in.
Shipping Width	2.5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Height	5 in.
Product Length	5 in.
Product Width	2.5 in.
Product Weight (lbs)	0.5

Product Details
Max Temp (°F)	140
Micron Rating (Nominal)	20 µm
Psid@Flow Rate	<1 psid typical
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Flow Rate	2-8 GPM
Media Type	Polypropylene
Micron Rating	20 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	22 in.
Shipping Width	15 in.
Shipping Height	11 in.
Product Weight & Dimensions
Product Length	4-7/8"
Product Weight (lbs)	14.15

Product Details
Max Temp (°F)	140
Micron Rating (Nominal)	20 µm
Psid@Flow Rate	<1 psid typical
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Flow Rate	2-8 GPM
Media Type	Polypropylene
Micron Rating	20 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Product Weight & Dimensions
Product Length	4-7/8"
Product Weight (lbs)	1920
