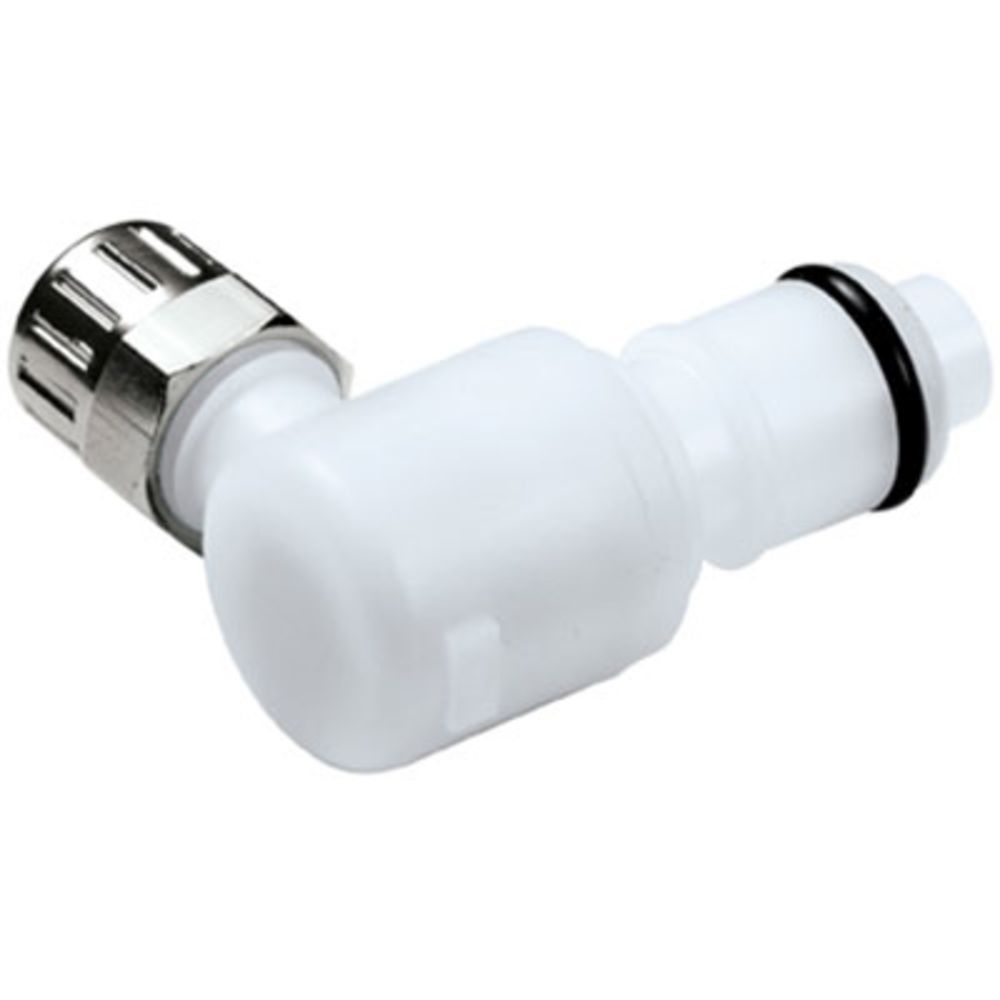

43100 NSF Valved Elbow Coupling Insert 3/8 PTF

3/8" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:

Material: Acetal
Material Finish: Natural
Color: White
Valve Option: Valved
Mounting Option: Free Floating
Seal Options: FDA EPDM
Valve Spring: 316 Stainless Steel
Pressure Range:Vacuum to 120 psi,(8.3 bar)
Temperature Range: -40°F to 180°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Food Beverage
Body Material	Acetal Copolymer
Inlet Connection	3/8" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	Yes
Number Of Seals	2
Outlet Connection	3/8" FPT
Push-In Size	3/8" OD
Seal Material	FDA EPDM
Series	APC
Shape	90
Size	3/8"
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	White
Connection Type	Female (FPT)
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
