Fresh Water Systems

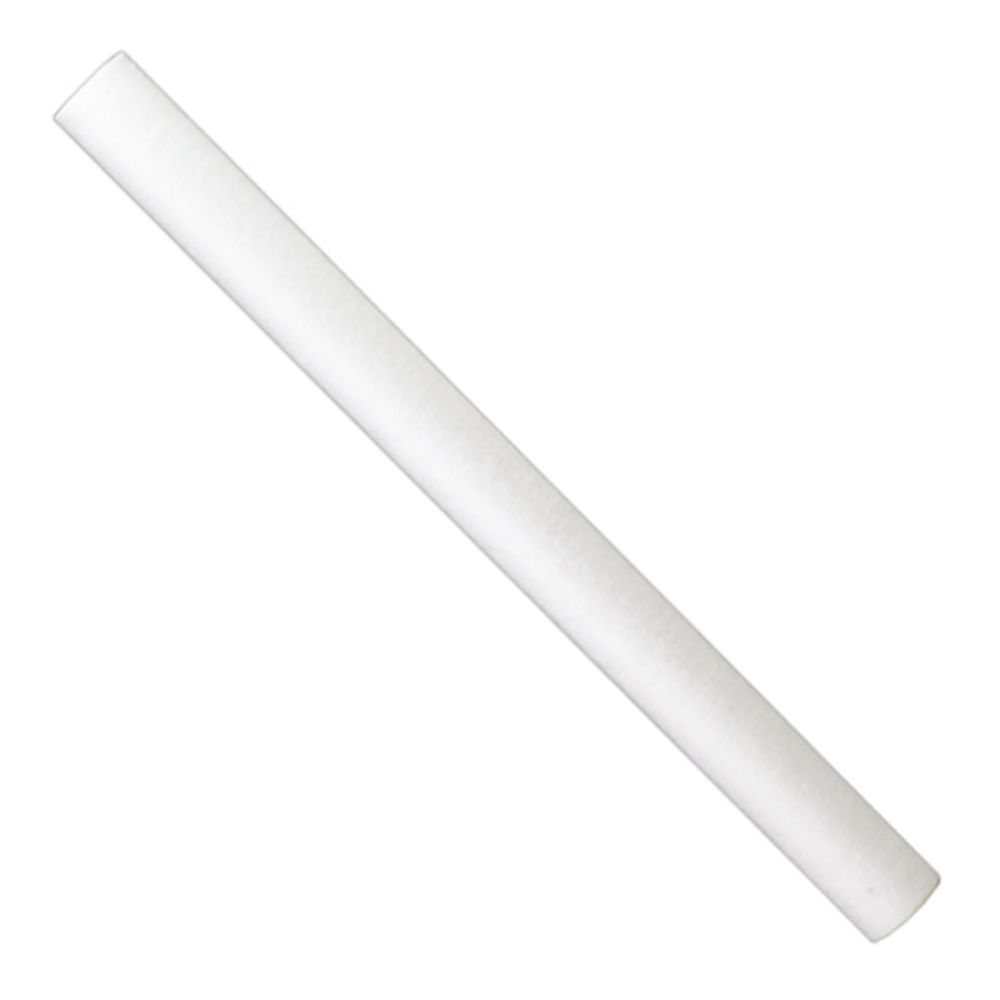

40" Polypropylene Sediment Depth Filter 25 Mic

Part Number: SD-25-4025

Alt. Part Number: FPMB20-40

In Stock

out of stock

In Stock

$10.24

This 40" Polypropylene Sediment Depth Filter's coreless design is an economical solution to pre-filtration for many applications. They are used widely as pre-filtration for RO systems and post-filtration for GAC filters and are also used in applications such as Ice Machines, Film Processing, Beverage, Coffee, Analytical, Wineries, and many others.

Features:
  • Manufactured from 100% pure polypropylene fibers
  • Coreless Design is an economical solution to pre-filtration for many applications
  • Fits in most water filter housings that use 40" x 2.5" filters
  • NSF certified to Standard 42 for material requirements only

Compatible with: Hydronix | SDC-25-4025, Liquatec | SDF-25-4025


Weight & Dimensions

Approx Length (Inches)

40" (101.6 cm)

Details

Capacity

6-12 Months

Cartridge Style

Drop-In

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

20 Gallons Per Minute

Initial Pressure Drop

0.2 psi @ 20 gpm PSI Differential

Media Type

Spun Bonded Polypropylene

Micron Rating (Nominal)

25 Micron

Operating Temperature Range

40-145 Degrees Fahrenheit

Outer Diameter

2.5"

Warranty & Certifications

Certifications

NSF 42



This 40" Polypropylene Sediment Depth Filter's coreless design is an economical solution to pre-filtration for many applications. They are used widely as pre-filtration for RO systems and post-filtration for GAC filters and are also used in applications such as Ice Machines, Film Processing, Beverage, Coffee, Analytical, Wineries, and many others.

Features:
  • Manufactured from 100% pure polypropylene fibers
  • Coreless Design is an economical solution to pre-filtration for many applications
  • Fits in most water filter housings that use 40" x 2.5" filters
  • NSF certified to Standard 42 for material requirements only

Compatible with: Hydronix | SDC-25-4025, Liquatec | SDF-25-4025

Weight & Dimensions

Approx Length (Inches)

40" (101.6 cm)

Details

Capacity

6-12 Months

Cartridge Style

Drop-In

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

20 Gallons Per Minute

Initial Pressure Drop

0.2 psi @ 20 gpm PSI Differential

Media Type

Spun Bonded Polypropylene

Micron Rating (Nominal)

25 Micron

Operating Temperature Range

40-145 Degrees Fahrenheit

Outer Diameter

2.5"

Warranty & Certifications

Certifications

NSF 42
