ROPV

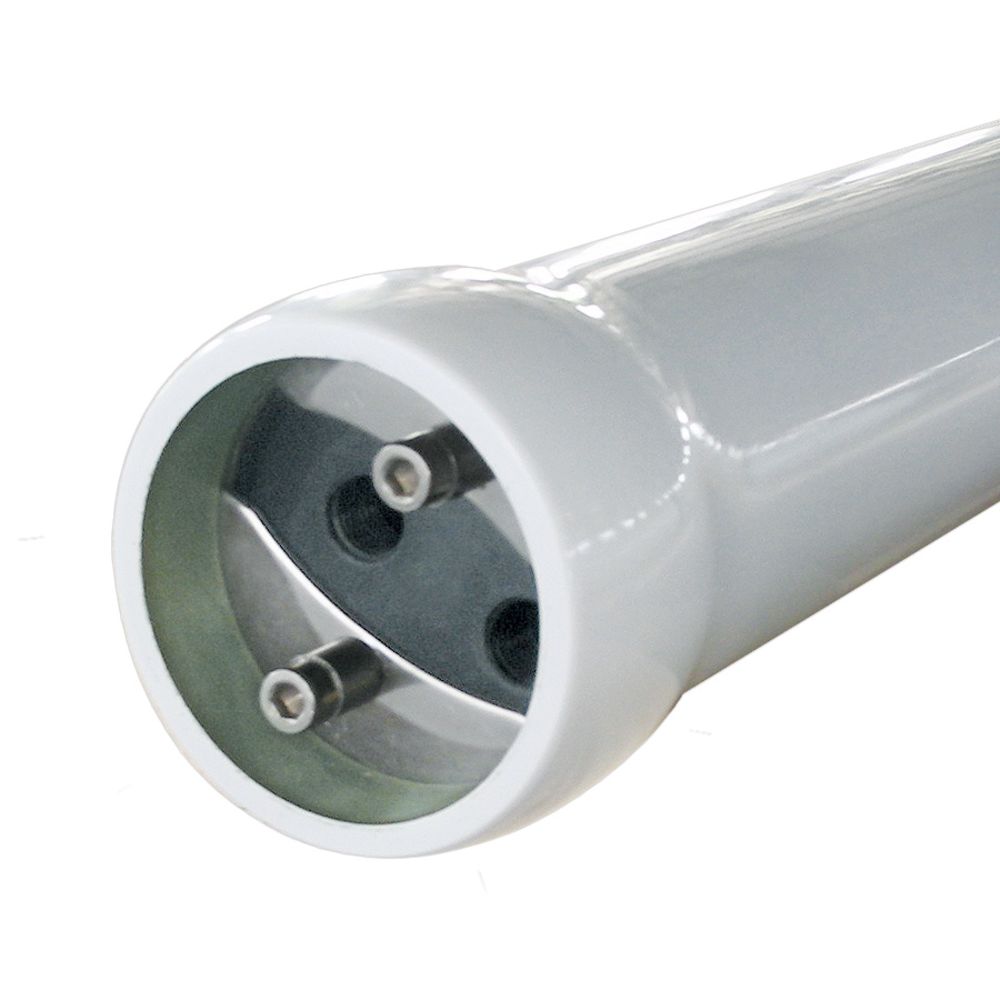

4 X 40 Fiberglass Membrane Housing 300 psi

Part Number: MHFG-4040-3412-300

In Stock

out of stock

In Stock

$264.00


ROPV 4" x 40" Fiberglass Membrane Housings are manufactured to very exacting specifications with only the highest quality materials.  These fiberglass pressure vessels accommodate standard 4" membrane filtration elements and operate at pressures up to 300 psi.  Fiberglass housings are stronger than PVC and more corrosion resistant than stainless steel.
Comparable to housings manufactured by Codeline, Protech, Purotech, A & M and HCTI.

Features:
  • Easy installation and maintenance
  • Constructed for best chemical compatibility and corrosion resistance
  • End port design
  • Operating temperature range: 14° F to 150° F
  • Operating pressure: 300 psi
  • Feed and concentrate port: 3/4" FNPT
  • Permeate port: 1/2" FNPT


Weight & Dimensions

Length (inches)

49.7

Height (inches)

49.7

Width (inches)

5.1

Weight (lbs)

20

Details

Max Temp (°F)

150

Max Pressure (Psi)

300

Min Temp (°F)

14

Diameter

5"

End Cap Type

ABS

Housing Material

Fiberglass

O-Rings

EPDM

Cleaning Ph Range

2-12

Ph Range

3-11

Membrane Size

4" x 40"

Port Size

3/4, 3/4", 1/2"

Warranty & Certifications

Certifications

Certified to NSF/Ansi Standard 61 by Underwriters Laboratories


4

4





ROPV 4" x 40" Fiberglass Membrane Housings are manufactured to very exacting specifications with only the highest quality materials.  These fiberglass pressure vessels accommodate standard 4" membrane filtration elements and operate at pressures up to 300 psi.  Fiberglass housings are stronger than PVC and more corrosion resistant than stainless steel.
Comparable to housings manufactured by Codeline, Protech, Purotech, A & M and HCTI.

Features:
  • Easy installation and maintenance
  • Constructed for best chemical compatibility and corrosion resistance
  • End port design
  • Operating temperature range: 14° F to 150° F
  • Operating pressure: 300 psi
  • Feed and concentrate port: 3/4" FNPT
  • Permeate port: 1/2" FNPT

Weight & Dimensions

Length (inches)

49.7

Height (inches)

49.7

Width (inches)

5.1

Weight (lbs)

20

Details

Max Temp (°F)

150

Max Pressure (Psi)

300

Min Temp (°F)

14

Diameter

5"

End Cap Type

ABS

Housing Material

Fiberglass

O-Rings

EPDM

Cleaning Ph Range

2-12

Ph Range

3-11

Membrane Size

4" x 40"

Port Size

3/4, 3/4", 1/2"

Warranty & Certifications

Certifications

Certified to NSF/Ansi Standard 61 by Underwriters Laboratories
