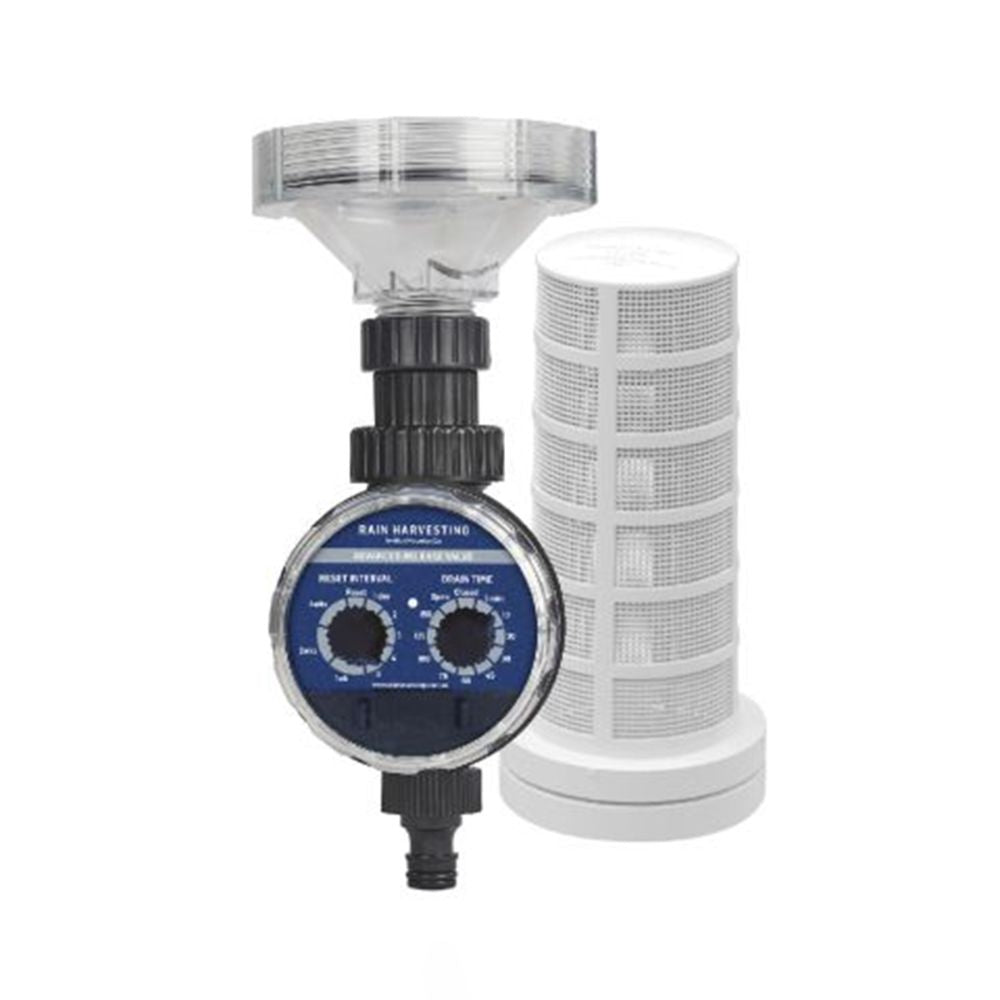

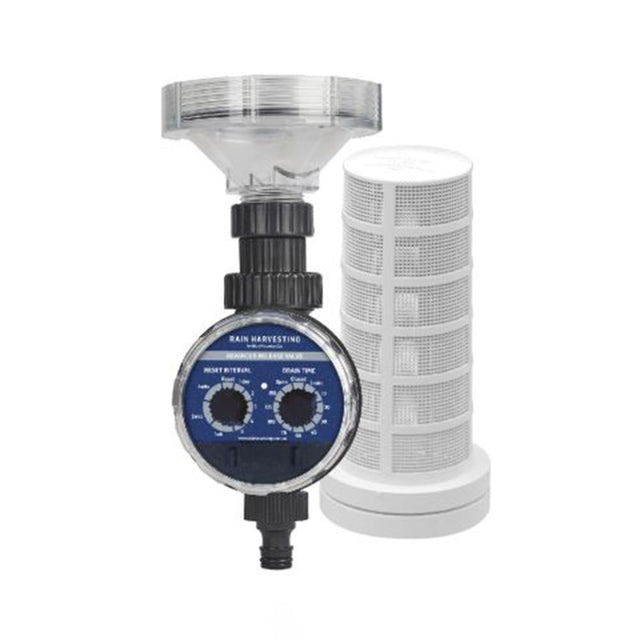

4" Wet-Dry Valve DRYV101 Rain Harvesting by Blue Mountain Co.
Part Number: DRYV101
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
- Prevent problems with tannin leaching and anaerobic fermentation.
- The valve’s drain size allows for efficient draining and minimizes the risk of clogging.
- An electronic auto-release timer allows you to "set it and forget it".
- Manages standing water.
- Automatically drains your charged lines.
Product Details | |
---|---|
Hole Size | 4" SCH40/SDR35 Fits over 4" pipe |
Installation | Tools/material you may require 100mm pipe (for extension to valve location) 100mm T-junction 100mm various fittings (for extension to valve location) Tape Measure Marker pen Saw Solvent weld glue Bedding sand or similar 2 new 1.5 volt AAA batteries Stormwater / rainwater pit Select an installation point for your Wet-Dry valve. This should be at the lowest point in your wet or “charged” system. Your wet-dry valve and pipe work should be installed on a slope to ensure it drains correctly. The valve must also be accessible for maintenance and inspection. This may be achieved by running pipe to a location above ground or installing in an access pit (e.g. stormwater pit). Using an appropriately sized T-junction, as a template, measure the pipes at your chosen installation point and cut to create space for the T-junction. If the lowest system point is located at the existing 90 degree bend in the pipe that feeds your tank, the T-junction can be used in place of the existing 90 degree bend to direct water vertically to the tank. Otherwise the T-junction can be installed in your existing horizontal pipework. Whichever installation option you choose, ensure all cut edges are clean and smooth. Install the T-junction using solvent weld glue. If termination is below ground level, extend outlet of T-junction to nearest stormwater pit and through pit wall. If outlet is to be terminated above ground, extend outlet of the T-junction to the sloping ground where pipe work becomes accessible. Using solvent weld glue, attach the 100mm-90mm (4”-3”) socket reducer to the end of pipe. Ensure the tapered section of the coupling faces up to allow all water to escape when draining. Install the Primary Filter Screen, Transparent Rapid Release Exit Funnel, and Advanced Release Valve. |
Setting | NOTE: The first time you program the Advance Release Valve it will not begin to operate until after a time delay equal to the setting of the reset interval knob you select. The Advance Release Valve starts to keep time when you set it. It is important that you set the timer at the hour you want it to operate. For example, if you want the Advance Release Valve to operate at 07:00AM, you must physically set it at 07:00AM. |
Shipping Dimensions | |
Shipping Length | 13 in. |
Shipping Width | 10 in. |
Shipping Height | 8 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 2.375 |
- Prevent problems with tannin leaching and anaerobic fermentation.
- The valve’s drain size allows for efficient draining and minimizes the risk of clogging.
- An electronic auto-release timer allows you to "set it and forget it".
- Manages standing water.
- Automatically drains your charged lines.
Product Details | |
---|---|
Hole Size | 4" SCH40/SDR35 Fits over 4" pipe |
Installation | Tools/material you may require 100mm pipe (for extension to valve location) 100mm T-junction 100mm various fittings (for extension to valve location) Tape Measure Marker pen Saw Solvent weld glue Bedding sand or similar 2 new 1.5 volt AAA batteries Stormwater / rainwater pit Select an installation point for your Wet-Dry valve. This should be at the lowest point in your wet or “charged” system. Your wet-dry valve and pipe work should be installed on a slope to ensure it drains correctly. The valve must also be accessible for maintenance and inspection. This may be achieved by running pipe to a location above ground or installing in an access pit (e.g. stormwater pit). Using an appropriately sized T-junction, as a template, measure the pipes at your chosen installation point and cut to create space for the T-junction. If the lowest system point is located at the existing 90 degree bend in the pipe that feeds your tank, the T-junction can be used in place of the existing 90 degree bend to direct water vertically to the tank. Otherwise the T-junction can be installed in your existing horizontal pipework. Whichever installation option you choose, ensure all cut edges are clean and smooth. Install the T-junction using solvent weld glue. If termination is below ground level, extend outlet of T-junction to nearest stormwater pit and through pit wall. If outlet is to be terminated above ground, extend outlet of the T-junction to the sloping ground where pipe work becomes accessible. Using solvent weld glue, attach the 100mm-90mm (4”-3”) socket reducer to the end of pipe. Ensure the tapered section of the coupling faces up to allow all water to escape when draining. Install the Primary Filter Screen, Transparent Rapid Release Exit Funnel, and Advanced Release Valve. |
Setting | NOTE: The first time you program the Advance Release Valve it will not begin to operate until after a time delay equal to the setting of the reset interval knob you select. The Advance Release Valve starts to keep time when you set it. It is important that you set the timer at the hour you want it to operate. For example, if you want the Advance Release Valve to operate at 07:00AM, you must physically set it at 07:00AM. |
Shipping Dimensions | |
Shipping Length | 13 in. |
Shipping Width | 10 in. |
Shipping Height | 8 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 2.375 |
