3M Fluid Purification

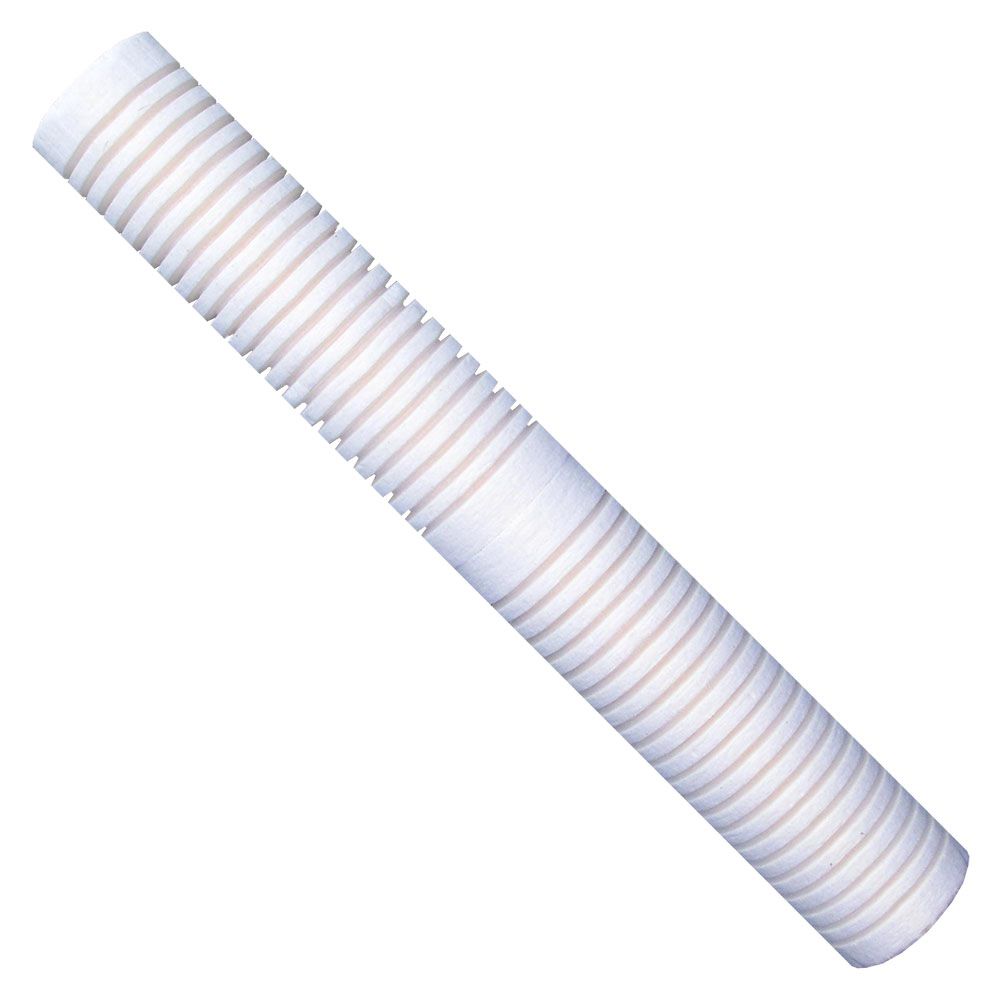

3M RT19B16G20NN 19-1/2" PolyKLEAN Grooved Polypropylene Rigid Thermal Bonded Filter
Features:
- Reduces sediment, dirt and rust
- Grooved cartridge for increased surface area, which allows for increased flow rates and longer filter life
- Constructed of 100% polypropylene
- Consistent particle removal over filter life
- No unloading at high differential pressure
- Maximum Operating Temperature: 176°F
- Industrial
- Coatings
- Food & Beverage
- Oil & Gas
- Chemical
- Electronics
- Pharmaceutical
Weight & Dimensions
Height (inches) | 2.25 |
Length (inches) | 19.5 |
Weight (lbs) | 0.0375 |
Width (inches) | 2.25 |
Details
Application | Food & Beverage |
Capacity | As Needed |
Max Psid | 60 psid |
Max Temp (°F) | 176 |
Micron Rating (Nominal) | 5 µm |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-3/5" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown - Grooved |
Filter Type | Sediment Depth |
Inner Diameter | 1-1/10" |
Media Type | Polypropylene |
Micron Rating | 5 µm |
Product Length | 19-1/2" |
Warranty & Certifications
Certifications | NSF/ANSI 42; NSF/ANSI 61 |
The CUNO-3M RT19B16G20NN PolyKLEAN Grooved Polypropylene Rigid Thermal Bonded Filters have an enhanced contaminant holding capacity which equals fewer filter changes and a longer filter life. RT19B16G20NN is a grooved cartridge, which extends filter surface area and life, while CUNO's rigid extrusion bonded technology continues to provide consistent particle removal during the filter's life.
Features:
- Reduces sediment, dirt and rust
- Grooved cartridge for increased surface area, which allows for increased flow rates and longer filter life
- Constructed of 100% polypropylene
- Consistent particle removal over filter life
- No unloading at high differential pressure
- Maximum Operating Temperature: 176°F
- Industrial
- Coatings
- Food & Beverage
- Oil & Gas
- Chemical
- Electronics
- Pharmaceutical
Weight & Dimensions
Height (inches) | 2.25 |
Length (inches) | 19.5 |
Weight (lbs) | 0.0375 |
Width (inches) | 2.25 |
Details
Application | Food & Beverage |
Capacity | As Needed |
Max Psid | 60 psid |
Max Temp (°F) | 176 |
Micron Rating (Nominal) | 5 µm |
Cap Material | Polypropylene |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-3/5" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown - Grooved |
Filter Type | Sediment Depth |
Inner Diameter | 1-1/10" |
Media Type | Polypropylene |
Micron Rating | 5 µm |
Product Length | 19-1/2" |
Warranty & Certifications
Certifications | NSF/ANSI 42; NSF/ANSI 61 |
Documentation
