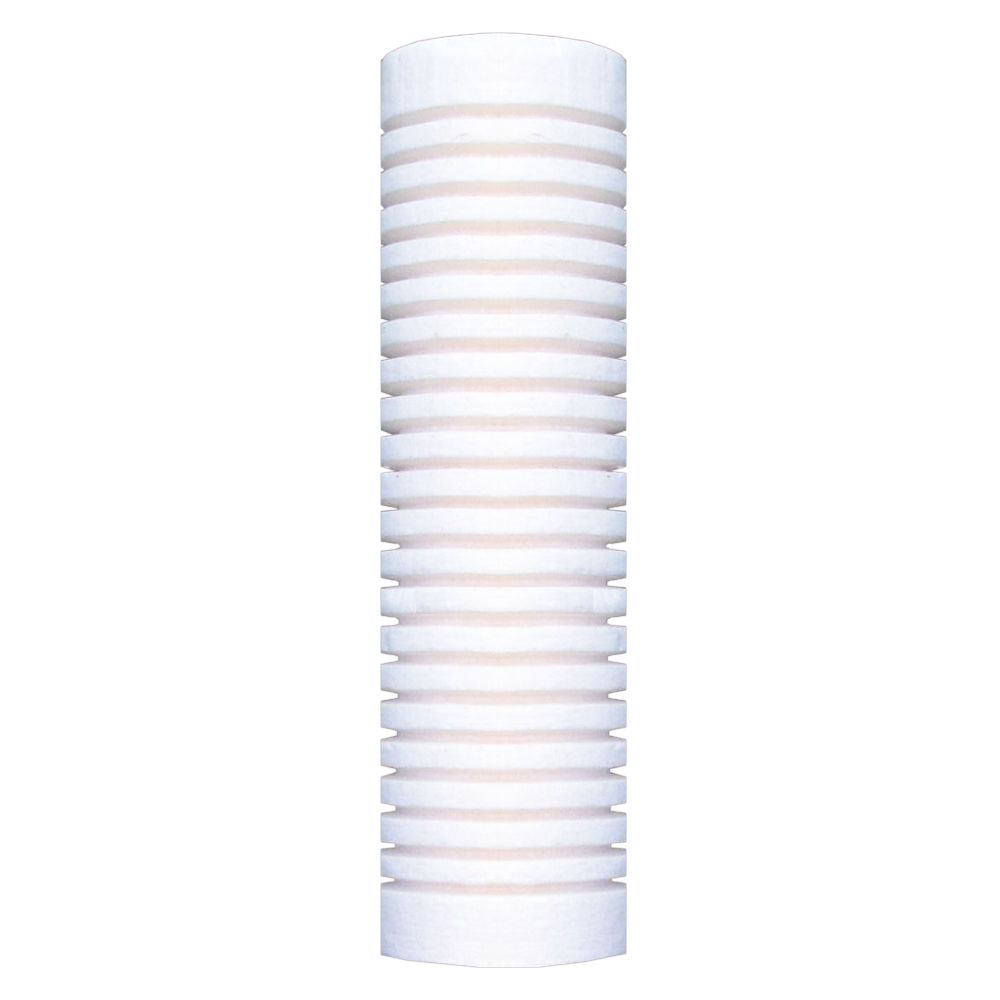

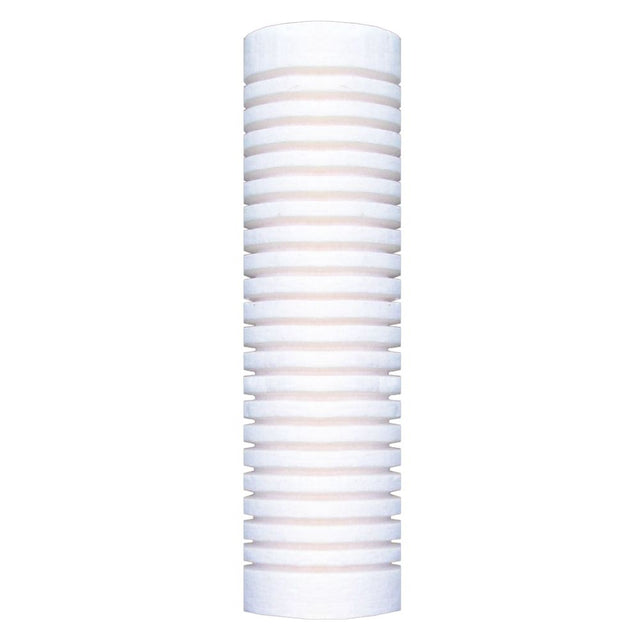

3M RT09B16G20NN 9-3/4" PolyKLEAN Grooved Polypropylene Rigid Thermal Bonded Filter

The CUNO-3M RT09B16G20NN PolyKLEAN Grooved Polypropylene Rigid Thermal Bonded Filters have an enhanced contaminant holding capacity which equals fewer filter changes and a longer filter life. RT09B16G20NN is a grooved cartridge, which extends filter surface area and life, while CUNO's rigid extrusion bonded technology continues to provide consistent particle removal during the filter's life.

Applications:

Industrial
Coatings
Food & Beverage
Oil & Gas
Chemical
Electronics
Pharmaceutical

Features:

Reduces sediment, dirt and rust
Grooved cartridge for increased surface area, which allows for increased flow rates and longer filter life
Constructed of 100% polypropylene
Consistent particle removal over filter life
No unloading at high differential pressure
Maximum Operating Temperature: 176°F
ANSI/NSF Standard 42 and 61 certified

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Food & Beverage
Max Psid	60 psid
Max Temp (°F)	176
Micron Rating (Nominal)	5 µm
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-3/5"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown - Grooved
Filter Type	Sediment Depth
Inner Diameter	1-1/10"
Media Type	Polypropylene
Micron Rating	5 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 42
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	2.5
Product Length	9.75
Product Width	2.5
Product Weight (lbs)	0.5

Product Details
Application	Food & Beverage
Max Psid	60 psid
Max Temp (°F)	176
Micron Rating (Nominal)	5 µm
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-3/5"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown - Grooved
Filter Type	Sediment Depth
Inner Diameter	1-1/10"
Media Type	Polypropylene
Micron Rating	5 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 42
Product Weight & Dimensions
Product Length	9-3/4"
Product Weight (lbs)	50
