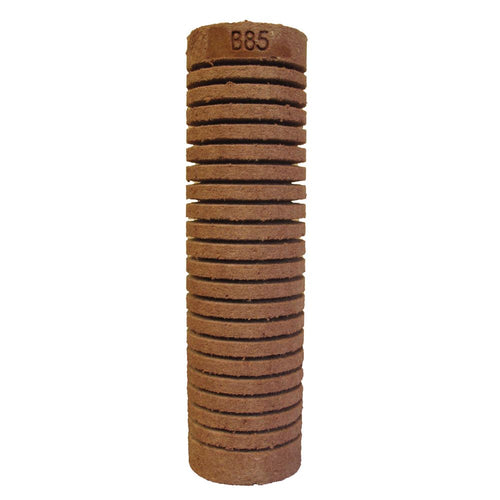

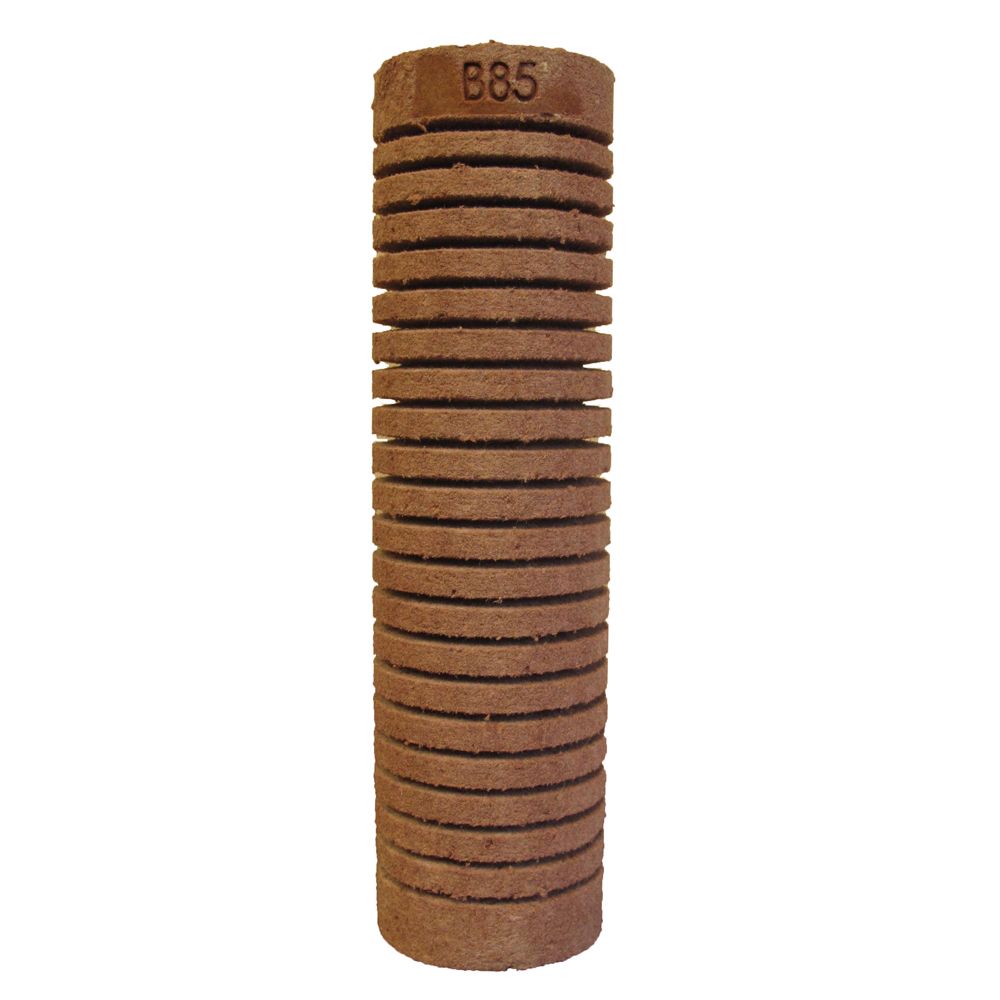

3M Micro-Klean G78W83N Grooved Resin Bonded 125 mic 2-5/8 x 9-3/4

Part Number: G78W83N

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.


The exclusive 3M manufacturing process produces a rigid, resin bonded, graded density structure that eliminates by-pass and the unloading characteristics of soft and easily deformable, competitive filter cartridges such as spiral wound, melt-blown, and string wound cartridges. Micro-Klean III 2-5/8" x 9-3/4" filter cartridges are the product of continuous refinement of manufacturing and fiber technologies.  The grooving of the outer surface significantly increases the filter's effective surface area, and increases the contaminant holding capacity. The design of Micro-Klean III G78W83N combines the principles of surface and depth filtration in one cartridge resulting in enhanced filter life, particle removal efficiency and optimum flow characteristics.

Features:
  • Consistent particle removal efficiencies with sharp cut-offs
  • Extended cartridge life
  • Ability to withstand high temperatures and elevated differential pressures
  • Broad chemical compatibility
  • Consistent batch to batch filtration characteristics.




Weight & Dimensions

Approx Length (Inches)

9-3/4"

Case Weight

29.00 Lbs

Details

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

100

Filter Application

Sediment/Dirt/Rust

Max Operating Temperature

180 °F

Media Type

Grooved Resin Bonded Acrylic, Phenolic

Micron Rating (Nominal)

125 µm

Origin

USA

Outer Diameter

2-5/8"


3M





The exclusive 3M manufacturing process produces a rigid, resin bonded, graded density structure that eliminates by-pass and the unloading characteristics of soft and easily deformable, competitive filter cartridges such as spiral wound, melt-blown, and string wound cartridges. Micro-Klean III 2-5/8" x 9-3/4" filter cartridges are the product of continuous refinement of manufacturing and fiber technologies.  The grooving of the outer surface significantly increases the filter's effective surface area, and increases the contaminant holding capacity. The design of Micro-Klean III G78W83N combines the principles of surface and depth filtration in one cartridge resulting in enhanced filter life, particle removal efficiency and optimum flow characteristics.

Features:
  • Consistent particle removal efficiencies with sharp cut-offs
  • Extended cartridge life
  • Ability to withstand high temperatures and elevated differential pressures
  • Broad chemical compatibility
  • Consistent batch to batch filtration characteristics.



NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Approx Length (Inches)

9-3/4"

Case Weight

29.00 Lbs

Details

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

100

Filter Application

Sediment/Dirt/Rust

Max Operating Temperature

180 °F

Media Type

Grooved Resin Bonded Acrylic, Phenolic

Micron Rating (Nominal)

125 µm

Origin

USA

Outer Diameter

2-5/8"

Documentation
