3M Fluid Purification

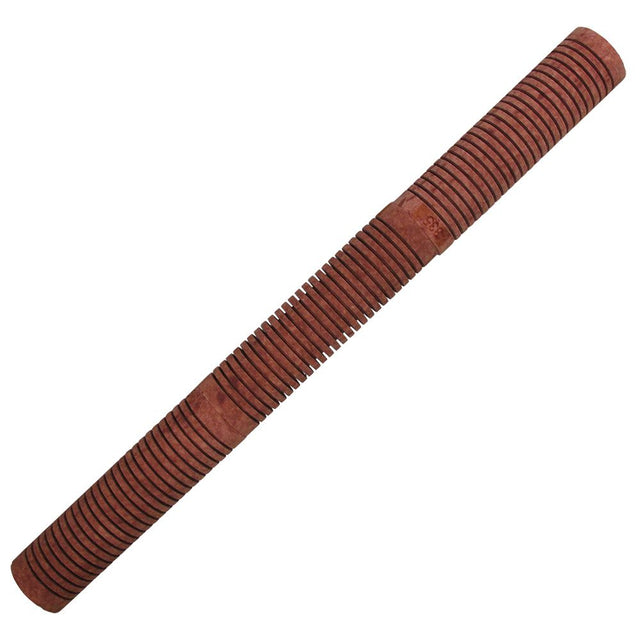

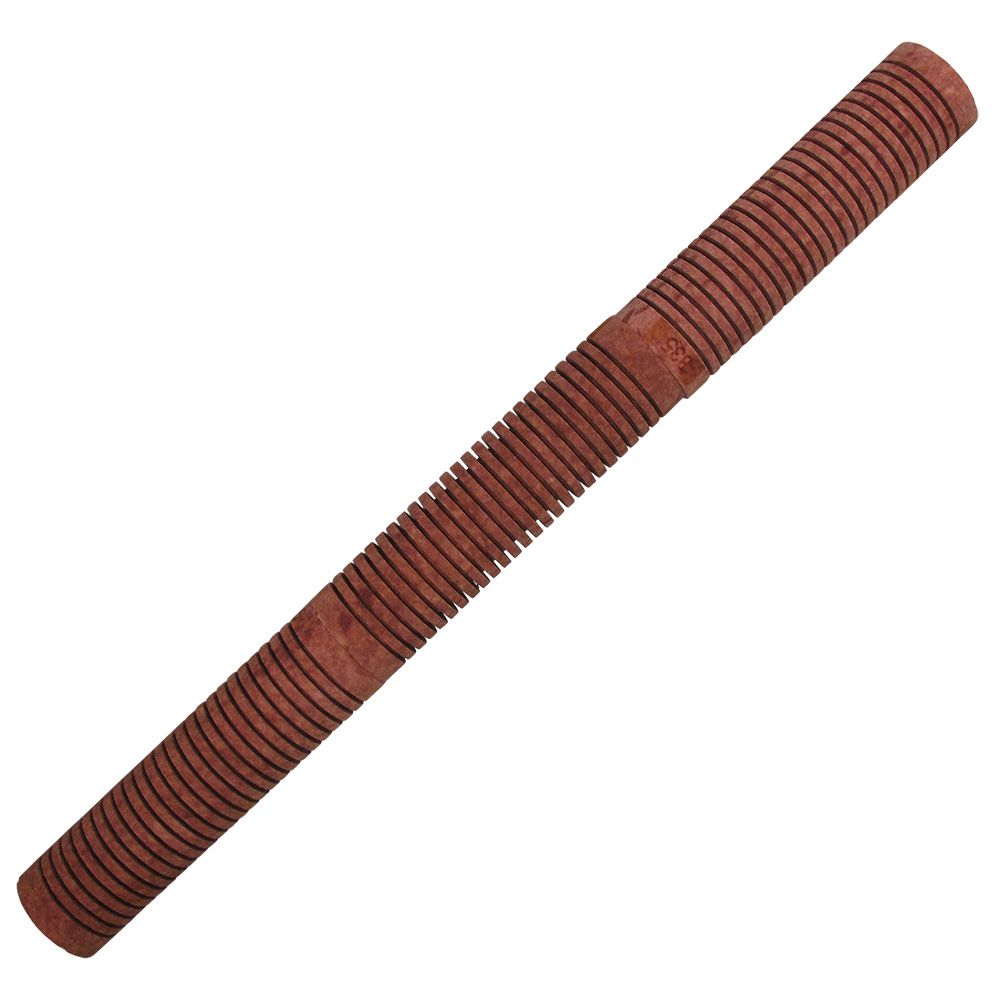

3M Micro-Klean G78B83N Grooved Resin Bonded 5 mic 2-5/8 x 29-1/4

Part Number: G78B83N

In Stock

out of stock

In Stock

$35.84


The exclusive 3M manufacturing process produces a rigid, resin bonded, graded density structure that eliminates by-pass and the unloading characteristics of soft and easily deformable, competitive filter cartridges such as spiral wound, melt-blown, and string wound cartridges. Micro-Klean III 2-5/8" x 29-1/4" filter cartridges are the product of continuous refinement of manufacturing and fiber technologies.  The grooving of the outer surface significantly increases the filter's effective surface area, and increases the contaminant holding capacity. The design of Micro-Klean III G78B83N combines the principles of surface and depth filtration in one cartridge resulting in enhanced filter life, particle removal efficiency and optimum flow characteristics.

Features:
  • Consistent particle removal efficiencies with sharp cut-offs
  • Extended cartridge life
  • Ability to withstand high temperatures and elevated differential pressures
  • Broad chemical compatibility
  • Consistent batch to batch filtration characteristics.




Weight & Dimensions

Case Quantity

25

Height (inches)

2.5

Length (inches)

28.25

Weight (lbs)

0.053125

Width (inches)

2.5

Details

Application

Food & Beverage

Capacity

As Needed

Max Psid

70 psid

Max Temp (°F)

180

Micron Rating (Nominal)

5 µm

Cap Material

Phenolic Grooved Resin Bonded Acrylic

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-19/32"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown - Grooved

Filter Type

Sediment Depth

Inner Diameter

1-1/16"

Media Type

Phenolic Grooved Resin Bonded Acrylic

Micron Rating

5 µm

Origin

USA

Product Length

29-1/4"


3M





The exclusive 3M manufacturing process produces a rigid, resin bonded, graded density structure that eliminates by-pass and the unloading characteristics of soft and easily deformable, competitive filter cartridges such as spiral wound, melt-blown, and string wound cartridges. Micro-Klean III 2-5/8" x 29-1/4" filter cartridges are the product of continuous refinement of manufacturing and fiber technologies.  The grooving of the outer surface significantly increases the filter's effective surface area, and increases the contaminant holding capacity. The design of Micro-Klean III G78B83N combines the principles of surface and depth filtration in one cartridge resulting in enhanced filter life, particle removal efficiency and optimum flow characteristics.

Features:
  • Consistent particle removal efficiencies with sharp cut-offs
  • Extended cartridge life
  • Ability to withstand high temperatures and elevated differential pressures
  • Broad chemical compatibility
  • Consistent batch to batch filtration characteristics.



Weight & Dimensions

Case Quantity

25

Height (inches)

2.5

Length (inches)

28.25

Weight (lbs)

0.053125

Width (inches)

2.5

Details

Application

Food & Beverage

Capacity

As Needed

Max Psid

70 psid

Max Temp (°F)

180

Micron Rating (Nominal)

5 µm

Cap Material

Phenolic Grooved Resin Bonded Acrylic

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-19/32"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown - Grooved

Filter Type

Sediment Depth

Inner Diameter

1-1/16"

Media Type

Phenolic Grooved Resin Bonded Acrylic

Micron Rating

5 µm

Origin

USA

Product Length

29-1/4"
