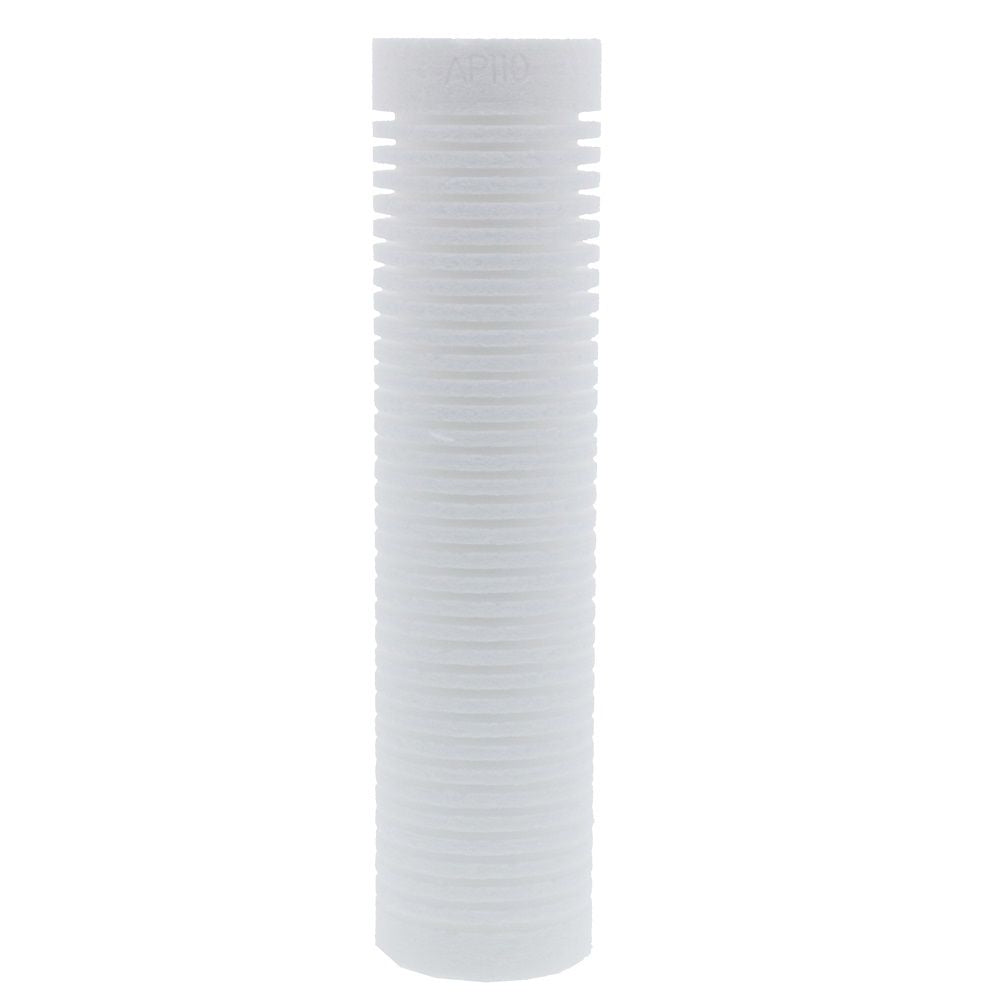

3M Micro-Klean G78B21S Grooved Resin Bonded 5 mic 2-5/8 x 9-3/4
Part Number: G78B21S
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The exclusive 3M manufacturing process produces a rigid, resin bonded, graded density structure that eliminates by-pass and the unloading characteristics of soft and easily deformable, competitive filter cartridges such as spiral wound, melt-blown, and string wound cartridges. Micro-Klean III 2-5/8" x 9-3/4" filter cartridges are the product of continuous refinement of manufacturing and fiber technologies. The grooving of the outer surface significantly increases the filter's effective surface area, and increases the contaminant holding capacity. The design of Micro-Klean III G78B21N combines the principles of surface and depth filtration in one cartridge resulting in enhanced filter life, particle removal efficiency and optimum flow characteristics.
Features:
- Consistent particle removal efficiencies with sharp cut-offs
- Extended cartridge life
- Ability to withstand high temperatures and elevated differential pressures
- Broad chemical compatibility
- Consistent batch to batch filtration characteristics.
- Shrink wrapped
Product Details | |
---|---|
Application | Food & Beverage |
Max Psid | 70 psid |
Max Temp (°F) | 180 |
Micron Rating (Nominal) | 5 µm |
Cap Material | Melamine Grooved Resin Bonded Cellulose |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-19/32" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown - Grooved |
Filter Type | Sediment Depth |
Inner Diameter | 1-1/16" |
Media Type | Melamine Grooved Resin Bonded Cellulose |
Micron Rating | 5 µm |
Shipping Dimensions | |
Shipping Length | 10 in. |
Shipping Width | 7 in. |
Shipping Height | 4 in. |
Product Weight & Dimensions | |
Product Height | 2.5 |
Product Length | 9.875 |
Product Width | 2.5 |
Product Weight (lbs) | 1 |
The exclusive 3M manufacturing process produces a rigid, resin bonded, graded density structure that eliminates by-pass and the unloading characteristics of soft and easily deformable, competitive filter cartridges such as spiral wound, melt-blown, and string wound cartridges. Micro-Klean III 2-5/8" x 9-3/4" filter cartridges are the product of continuous refinement of manufacturing and fiber technologies. The grooving of the outer surface significantly increases the filter's effective surface area, and increases the contaminant holding capacity. The design of Micro-Klean III G78B21N combines the principles of surface and depth filtration in one cartridge resulting in enhanced filter life, particle removal efficiency and optimum flow characteristics.
Features:
- Consistent particle removal efficiencies with sharp cut-offs
- Extended cartridge life
- Ability to withstand high temperatures and elevated differential pressures
- Broad chemical compatibility
- Consistent batch to batch filtration characteristics.
- Shrink wrapped
Product Details | |
---|---|
Application | Food & Beverage |
Max Psid | 70 psid |
Max Temp (°F) | 180 |
Micron Rating (Nominal) | 5 µm |
Cap Material | Melamine Grooved Resin Bonded Cellulose |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-19/32" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown - Grooved |
Filter Type | Sediment Depth |
Inner Diameter | 1-1/16" |
Media Type | Melamine Grooved Resin Bonded Cellulose |
Micron Rating | 5 µm |
Shipping Dimensions | |
Shipping Length | 10 in. |
Shipping Width | 7 in. |
Shipping Height | 4 in. |
Product Weight & Dimensions | |
Product Height | 2.5 |
Product Length | 9.875 |
Product Width | 2.5 |
Product Weight (lbs) | 1 |
