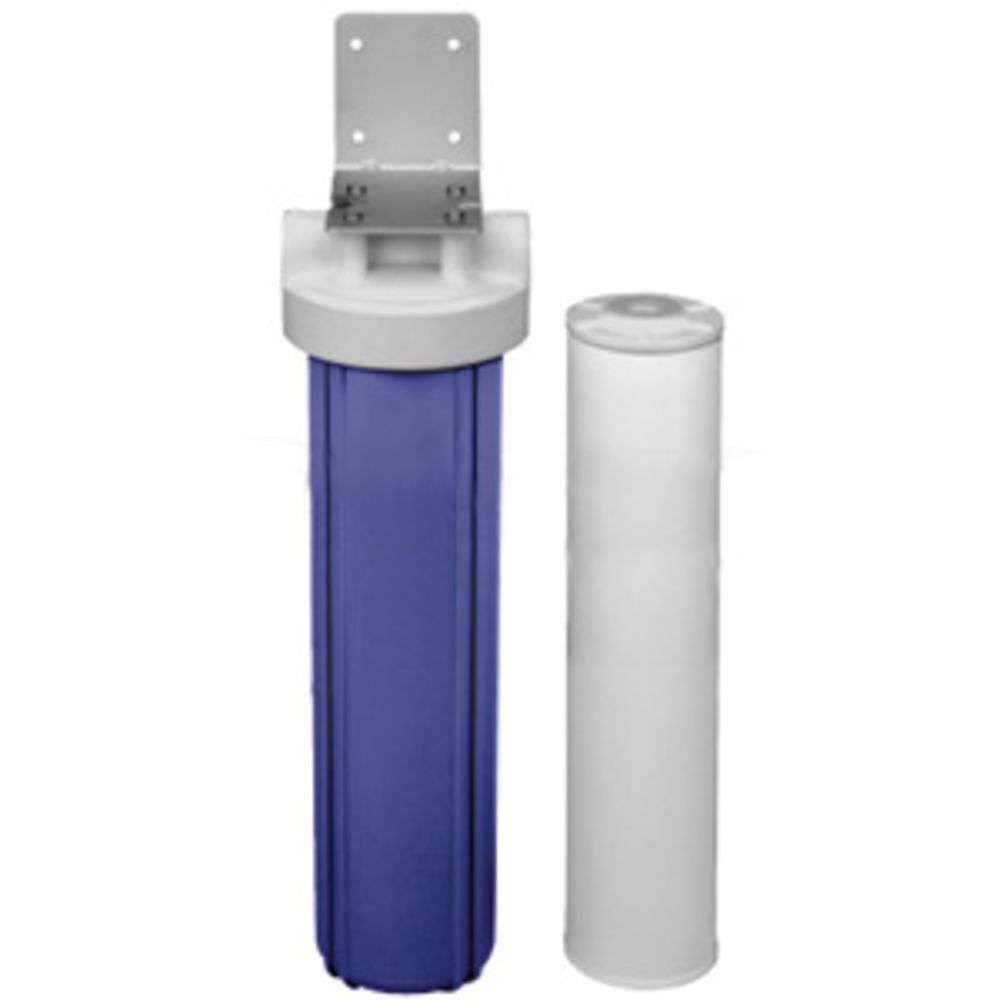

- The CFS5400N Filter System was formerly labeled as CUNO CFS5400N
- Single vessel design w/ inlet and outlet ports of 1" NPT and removable & disposable cartridge
- Reduces Carbonate Hardness through Ion Exchange
- Resin has no color throw in the effluent water
- Heavy-duty polypropylene construction provides protection against water hammer that can eventually add stress and cause leaks
- Built-in pressure relief button relieves pressure inside the filter for convenient cartridge changes
- Allows for 25% blending of raw water with softened for Recipe Quality Water™ and extended capacity
- NSF and/or FDA CFR-21 compliant materials
- System maximum operating pressure of 100 psi (689 kPa) and operating temperatures of 100°F (37.8°C)
- System incorporates optional integrated bypass
- Each system has a service flow rate of 0.75 gpm (2.8 lpm)
Weight & Dimensions
Approx Height (Inches) | 28 9/16 Inches |
Approx Width (Inches) | 7 1/4 Inches |
Details
Application | Coffee System |
Capacity | 4,200 Grains (Up to 200 Grains Hardness) Gallons |
Flow Rate | .75 GPM |
Media Type | Sodium Ion Exchange Resin & Scale Inhibitor |
Micron Rating (Nominal) | N/A Micron |
Operating Pressure Range | 100 PSI |
Operating Temperature Range | 100 Degrees Fahrenheit |
Origin | Made in the USA with US and Foreign Components |
Size | 1" |
Contaminants Reduced | Sediment, Chlorine, Bad Taste & Odor |
Inlet/Outlet Connection | 1" | FPT |
Features:
- The CFS5400N Filter System was formerly labeled as CUNO CFS5400N
- Single vessel design w/ inlet and outlet ports of 1" NPT and removable & disposable cartridge
- Reduces Carbonate Hardness through Ion Exchange
- Resin has no color throw in the effluent water
- Heavy-duty polypropylene construction provides protection against water hammer that can eventually add stress and cause leaks
- Built-in pressure relief button relieves pressure inside the filter for convenient cartridge changes
- Allows for 25% blending of raw water with softened for Recipe Quality Water™ and extended capacity
- NSF and/or FDA CFR-21 compliant materials
- System maximum operating pressure of 100 psi (689 kPa) and operating temperatures of 100°F (37.8°C)
- System incorporates optional integrated bypass
- Each system has a service flow rate of 0.75 gpm (2.8 lpm)
Weight & Dimensions
Approx Height (Inches) | 28 9/16 Inches |
Approx Width (Inches) | 7 1/4 Inches |
Details
Application | Coffee System |
Capacity | 4,200 Grains (Up to 200 Grains Hardness) Gallons |
Flow Rate | .75 GPM |
Media Type | Sodium Ion Exchange Resin & Scale Inhibitor |
Micron Rating (Nominal) | N/A Micron |
Operating Pressure Range | 100 PSI |
Operating Temperature Range | 100 Degrees Fahrenheit |
Origin | Made in the USA with US and Foreign Components |
Size | 1" |
Contaminants Reduced | Sediment, Chlorine, Bad Taste & Odor |
Inlet/Outlet Connection | 1" | FPT |
