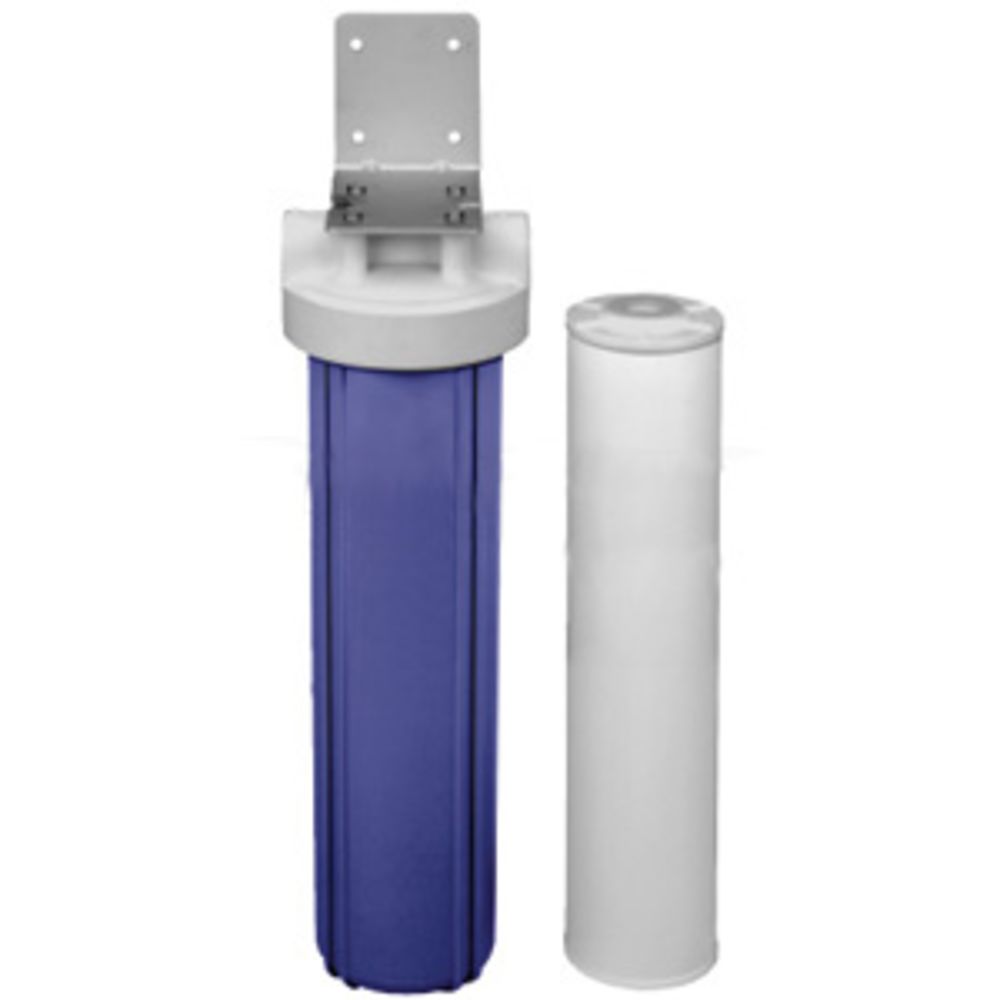

- The CFS5400 Filter System was formerly labeled as CUNO CFS5400
- Single vessel design w/ inlet and outlet ports of 1" NPT and removable and disposable cartridge
- Reduces carbonate hardness through ion exchange
- Resin has no color throw in the effluent water
- Heavy-duty polypropylene construction provides protection against water hammer that can eventually add stress and cause leaks
- Built-in pressure relief button relieves pressure inside the filter for convenient cartridge changes
- Allows for 25% blending of raw water with softened for Recipe Quality Water™ and extended capacity
- NSF and/or FDA CFR-21 compliant materials
- System maximum operating pressure of 100 psi (689 kPa) and operating temperatures of 100°F (37.8°C)
- System incorporates optional integrated bypass
- Each system has a service flow rate of 0.75 gpm (2.8 lpm)
Weight & Dimensions
Approx Height (Inches) | 28 9/16" |
Approx Width (Inches) | 7 1/4" |
Weight (lbs) | 28 |
Details
Application | Coffee System |
Inlet/Outlet Connection | 1" FPT |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 100 |
Size | 1" |
Change Frequency | 5,250 Grains |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust, Chlorine/Taste/Odor |
Flow Rate | .75 GPM |
Media Type | Ion-Exchange Resin |
Origin | Made in the USA with US and Foreign Components |
Type | Coffee Filtration System |
Features:
- The CFS5400 Filter System was formerly labeled as CUNO CFS5400
- Single vessel design w/ inlet and outlet ports of 1" NPT and removable and disposable cartridge
- Reduces carbonate hardness through ion exchange
- Resin has no color throw in the effluent water
- Heavy-duty polypropylene construction provides protection against water hammer that can eventually add stress and cause leaks
- Built-in pressure relief button relieves pressure inside the filter for convenient cartridge changes
- Allows for 25% blending of raw water with softened for Recipe Quality Water™ and extended capacity
- NSF and/or FDA CFR-21 compliant materials
- System maximum operating pressure of 100 psi (689 kPa) and operating temperatures of 100°F (37.8°C)
- System incorporates optional integrated bypass
- Each system has a service flow rate of 0.75 gpm (2.8 lpm)
Weight & Dimensions
Approx Height (Inches) | 28 9/16" |
Approx Width (Inches) | 7 1/4" |
Weight (lbs) | 28 |
Details
Application | Coffee System |
Inlet/Outlet Connection | 1" FPT |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 100 |
Size | 1" |
Change Frequency | 5,250 Grains |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust, Chlorine/Taste/Odor |
Flow Rate | .75 GPM |
Media Type | Ion-Exchange Resin |
Origin | Made in the USA with US and Foreign Components |
Type | Coffee Filtration System |
