3M Fluid Purification

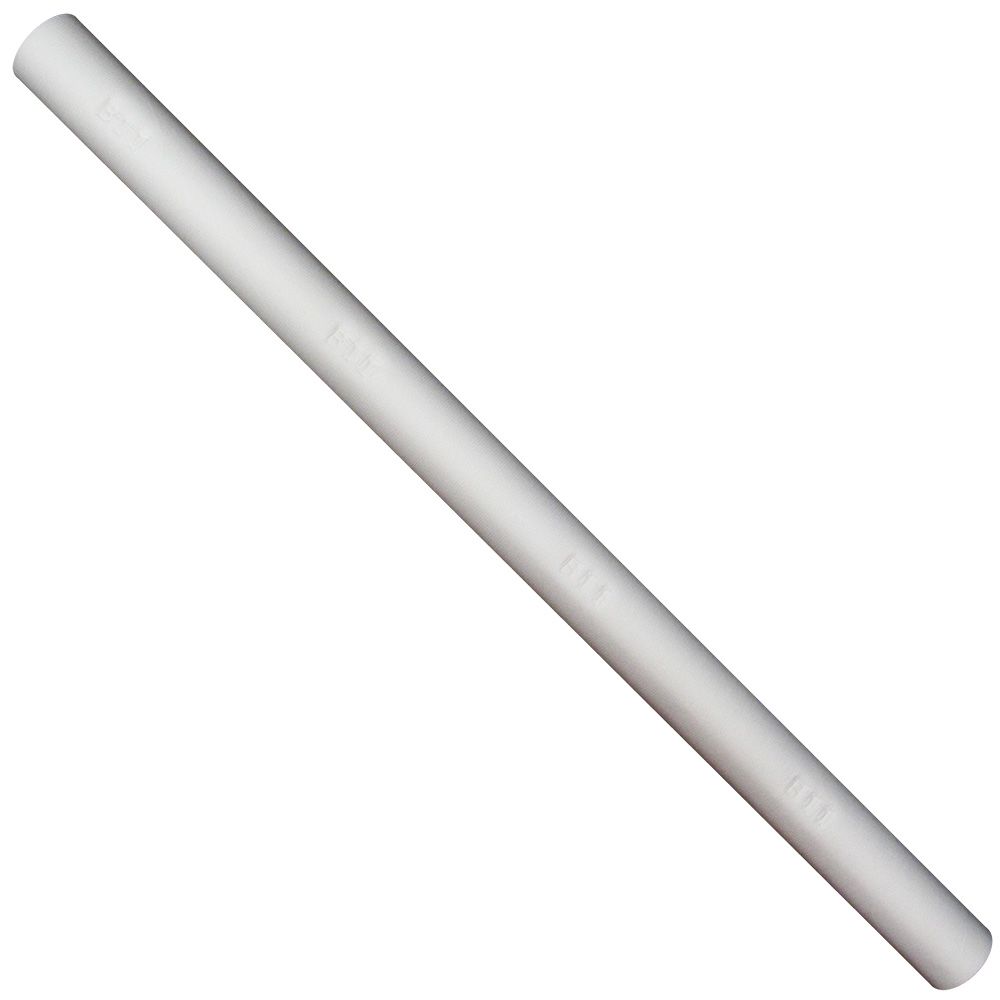

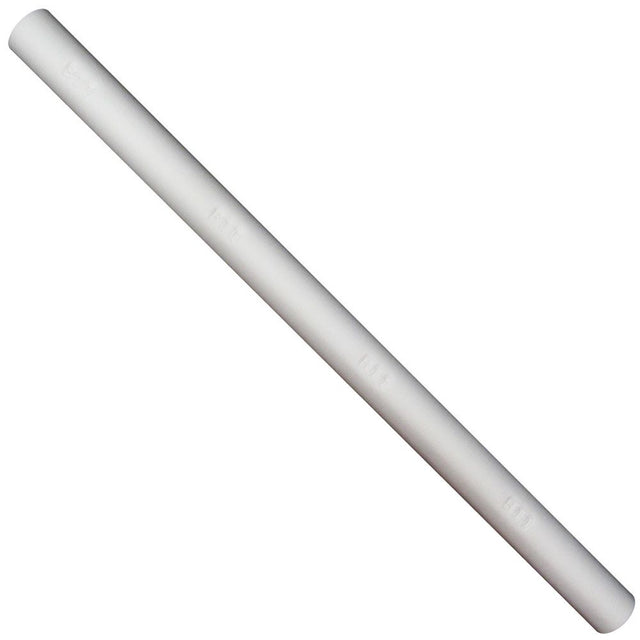

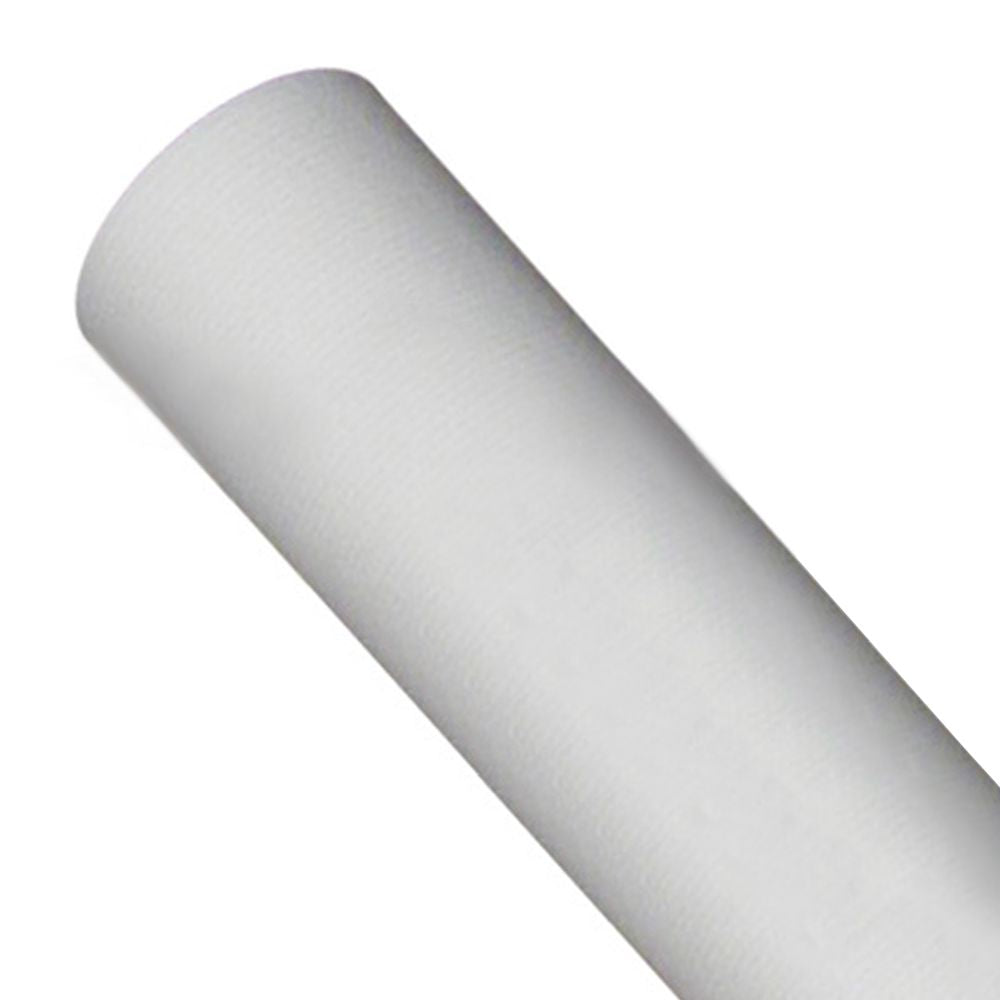

3M BetaPure Polyolefin Filter 20 mic Absolute (40 mic Nominal) - 40

Part Number: AU40B11NN

In Stock

out of stock

In Stock

$59.95

The 3M Beta Pure AU40B11NN Ordering Guide Betapure filter manufacturing utilizes state-of-the-art technology to produce a clean, rigid, filter structure with consistent and reproducable filtration characteristics. The filter matrix is constructed using long bicomponents fibers, each fiber having an inner core and an outer sheath. The bicomponent fibers of the filter matrix are thermally bonded by utilizing the difference in melt temperatures of the two fiber components. Heating the matrix to the melt temperature of the polyethylene sheath, but below that of the polypropylene core, causes the fiber-to-fiber bond at every contact point. The high degree of fiber-to-fiber bonding provides a rigid structure that eliminates the need for a core support and any possibility of media migration.

Features:
  • 99.9% efficient @ 20 mic
  • Absolute Ratings
  • Rigid Structure
  • Depth Filtration
  • Patented Gasket Design
  • Lower Pressure Drop
Applications:
  • Coatings - Magnetic Media, High Quality Paint, Film Coatings, Resins and Ink
  • Food & Beverage - Bottled Water, Pre RO, Blend Water & Wash Water
  • General Industrial - Desalination, Plating, Machine Tool Coolant and Process Water
  • Pharmaceutical - Water, Solvents, Chemicals, Pre RO, Antibiotic Intermediate Production
  • Electronics - Pre RO, Water Slurries, Ceramic Slurries, Chemical Mechanical Polishing, Cathode Ray Tube Production & Disc Cleaning
  • Chemical/Petro-Chemical - Process Water, Pre RO, Amine, Fine Chemicals & MTBE
The Betapure filter ensures that the unwanted particles are removed because:
  • The rigid structure maintains its porosity throughout the filter life.
  • The depth structure removes more difficult deformable contaminants.




Weight & Dimensions

Approx Length (Inches)

40" (101.6 cm)

Weight (lbs)

2.35

Details

Application

Food & Beverage

Capacity

As Needed

Max Psid

80 psid

Micron Rating (Absolute)

20 µm

Cap Material

Polyolefin

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Inner Diameter

1"

Media Type

Polyolefin

Micron Rating

20 µm ABS

Product Length

40"


3M




The 3M Beta Pure AU40B11NN Ordering Guide Betapure filter manufacturing utilizes state-of-the-art technology to produce a clean, rigid, filter structure with consistent and reproducable filtration characteristics. The filter matrix is constructed using long bicomponents fibers, each fiber having an inner core and an outer sheath. The bicomponent fibers of the filter matrix are thermally bonded by utilizing the difference in melt temperatures of the two fiber components. Heating the matrix to the melt temperature of the polyethylene sheath, but below that of the polypropylene core, causes the fiber-to-fiber bond at every contact point. The high degree of fiber-to-fiber bonding provides a rigid structure that eliminates the need for a core support and any possibility of media migration.

Features:
  • 99.9% efficient @ 20 mic
  • Absolute Ratings
  • Rigid Structure
  • Depth Filtration
  • Patented Gasket Design
  • Lower Pressure Drop
Applications:
  • Coatings - Magnetic Media, High Quality Paint, Film Coatings, Resins and Ink
  • Food & Beverage - Bottled Water, Pre RO, Blend Water & Wash Water
  • General Industrial - Desalination, Plating, Machine Tool Coolant and Process Water
  • Pharmaceutical - Water, Solvents, Chemicals, Pre RO, Antibiotic Intermediate Production
  • Electronics - Pre RO, Water Slurries, Ceramic Slurries, Chemical Mechanical Polishing, Cathode Ray Tube Production & Disc Cleaning
  • Chemical/Petro-Chemical - Process Water, Pre RO, Amine, Fine Chemicals & MTBE
The Betapure filter ensures that the unwanted particles are removed because:
  • The rigid structure maintains its porosity throughout the filter life.
  • The depth structure removes more difficult deformable contaminants.



Weight & Dimensions

Approx Length (Inches)

40" (101.6 cm)

Weight (lbs)

2.35

Details

Application

Food & Beverage

Capacity

As Needed

Max Psid

80 psid

Micron Rating (Absolute)

20 µm

Cap Material

Polyolefin

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Inner Diameter

1"

Media Type

Polyolefin

Micron Rating

20 µm ABS

Product Length

40"
