3M Betapure NT40T010S0BB NT-T Series 40" Filter 226/Spear 1 micron ABS (Case of 15)

Home / Filters & Cartridges / Sediment Filters / 3M Betapure NT40T010S0BB NT-T Series 40" Filter 226/Spear 1 micron ABS (Case of 15)

The Betapure NT-T Series cartridges are designed to provide superior service life while also delivering a consistent filtration efficiency. The filters combine polypropylene media with fluid distribution netting to form multiple layers. This allows for greater fluid movement from layer to layer as it passes through the three distinct media sections.

Specifications:

Case of 15 filters

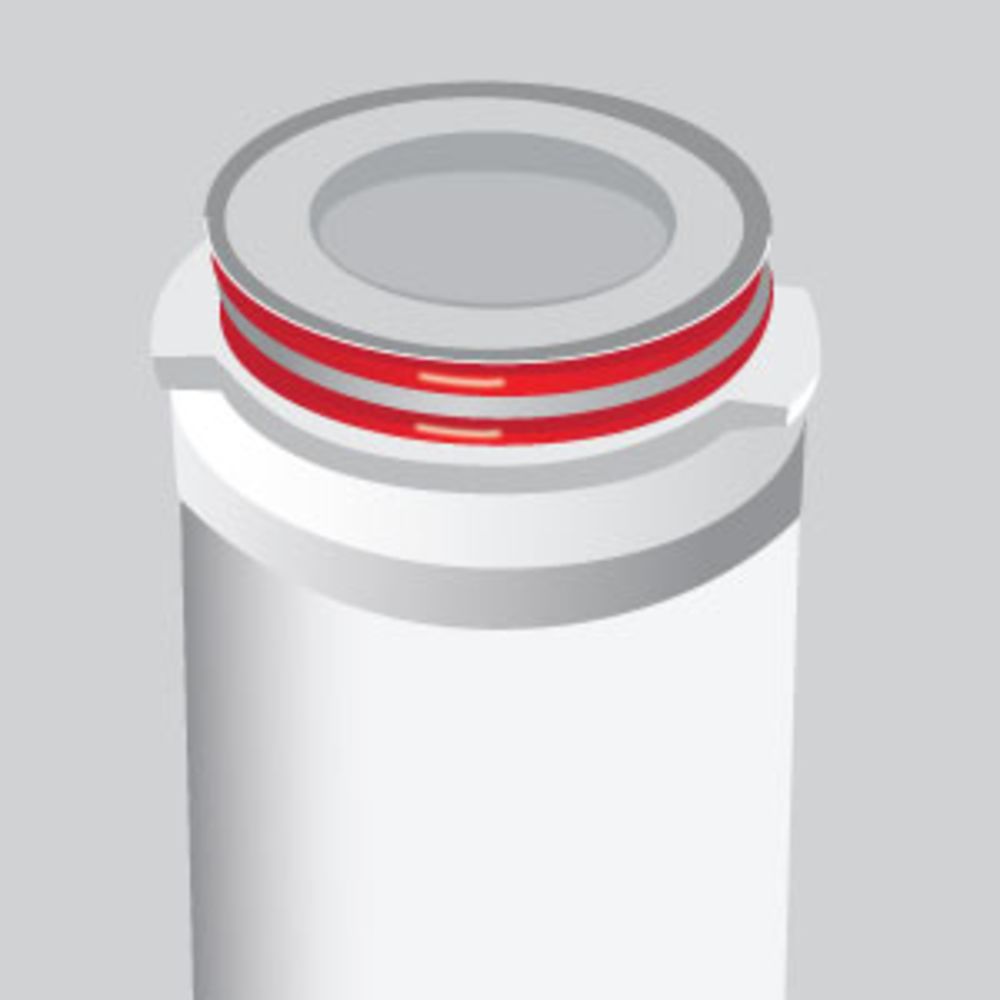

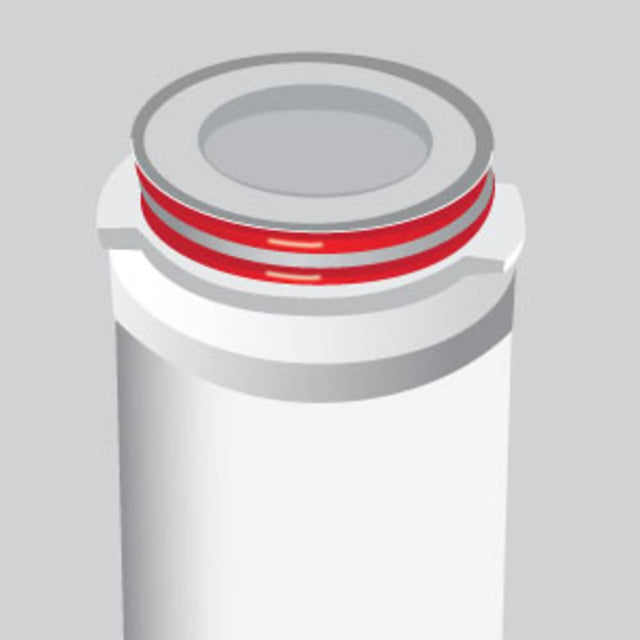

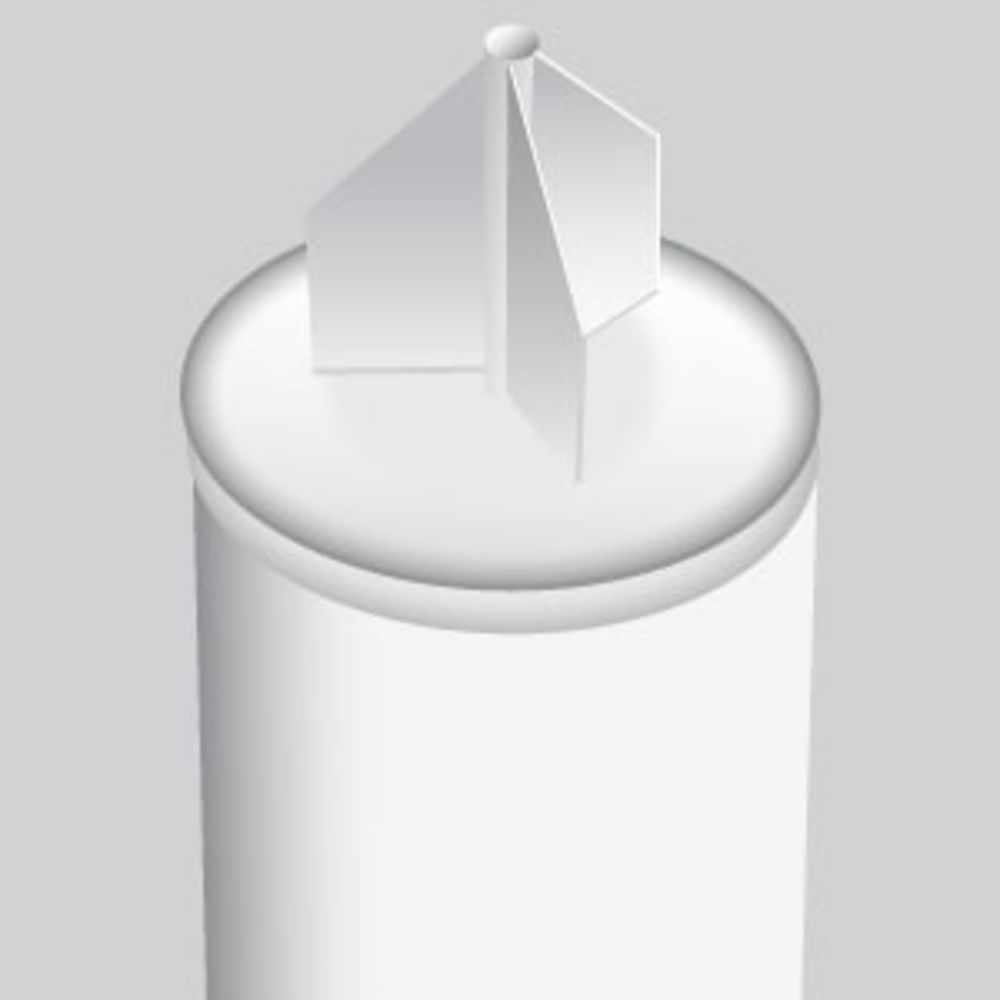

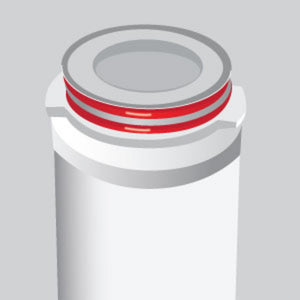

End Caps: 226 o-ring with spear
O-ring Material: fluorocarbon
Filter Dimensions: 40" L x 2-1/2" OD
Micron Rating: 1 micron absolute
Tested and certified by WQA to NSF/ANSI Standard 61 for material requirements only

Applications:

Chemical and hydrocarbon processing - acids, bleach (sodium hypochlorite), polyethylene and polypropylene manufacture, amine sweetening and waterflood
Food and beverage applications - bottled water particulate and turbidity reduction, reverse osmosis membrane and spray nozzle protection, diatomaceous earth or carbon fine trap, beverage blending, rinsing and water water
Fine chemical and electronics - pre-RO filtration of high silt density index incoming water, copper sulfate plating bath filtration in printed circuit board construction, color screen filtration for CRT production
Coating - film and paper coatings, photographic film, lens coatings, can coatings, high quality paints and ink
Industrial - machine tool lubrication, chemicals, detergents, waste water, textiles, plating baths, pulp and paper, process water and ground water remediation

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Food & Beverage
Max Temp (°F)	180
O-Rings	Fluorocarbon
Psid@Flow Rate	1 psid @ 3.1 GPM (Data based on 10" length filter)
Cap Material	Fluorocarbon
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/2"
End Cap Type	226 O-Ring
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Inner Diameter	1-1/16"
Media Type	Polypropylene
Micron Rating	1 µm ABS
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Product Weight & Dimensions
Product Length	40"
Product Weight (lbs)	35.25

Case of 15 filters
End Caps: 226 o-ring with spear
O-ring Material: fluorocarbon
Filter Dimensions: 40" L x 2-1/2" OD
Micron Rating: 1 micron absolute
Tested and certified by WQA to NSF/ANSI Standard 61 for material requirements only
