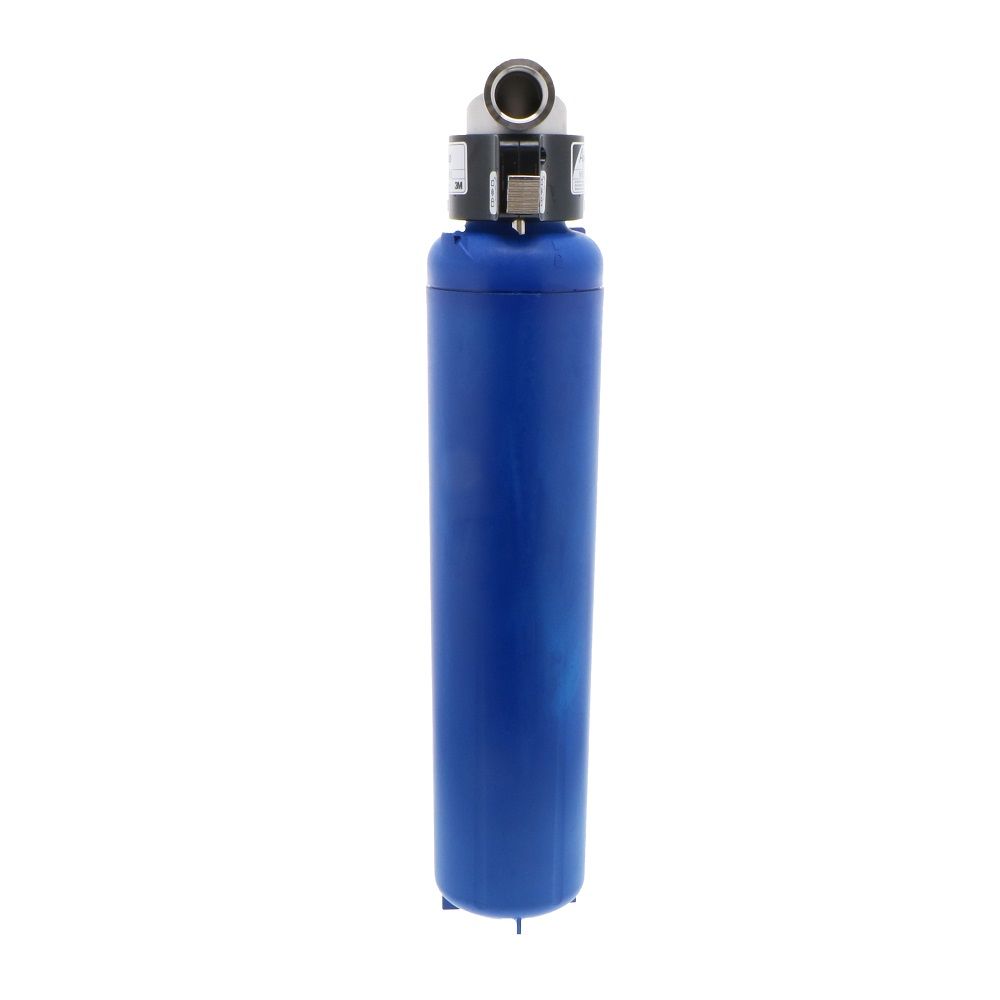

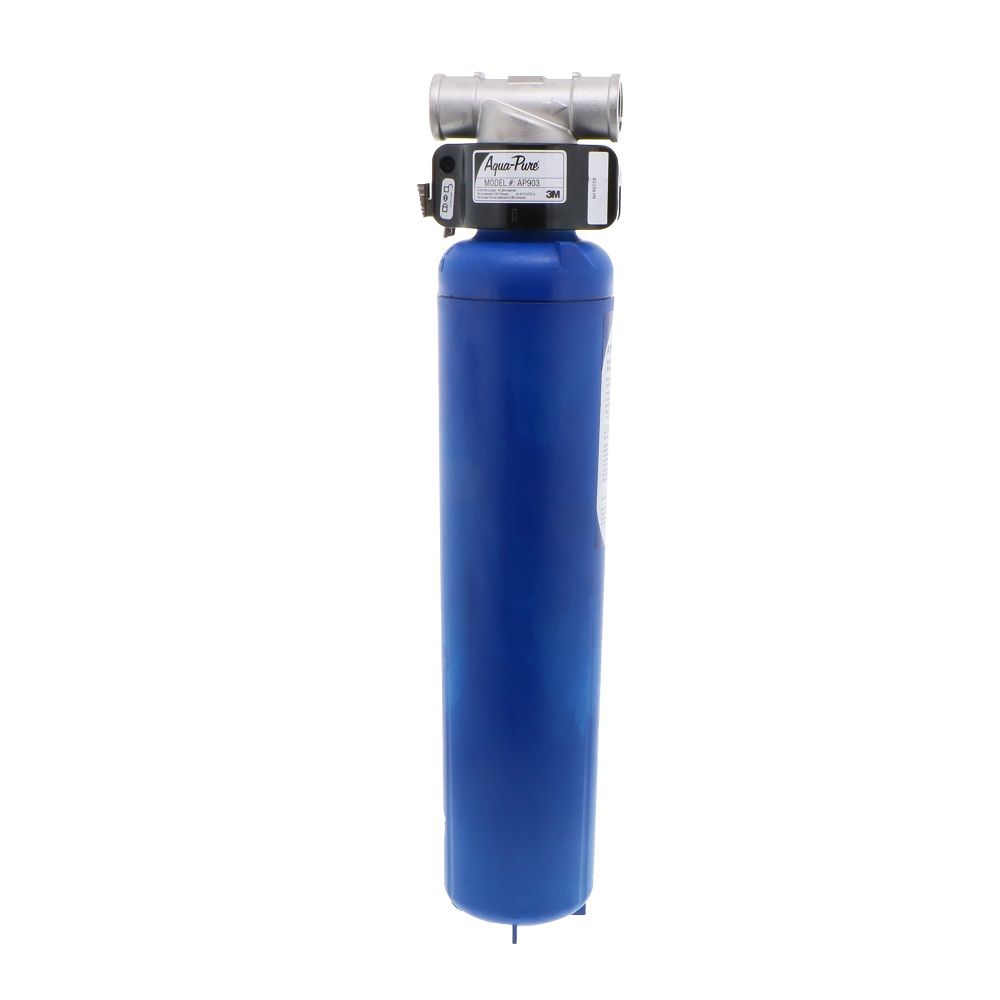

3M Aqua-Pure AP903 High Flow SQC CTO Sediment/Carbon Filter System
Part Number: 56211-02
Alt. Part Number: 70020204361
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
- 304 stainless steel head allows for "sweat in place" installation and is a non-corrosive material.
- Sanitary Quick Change (SQC) design, an industry first for this application, allows for fast and easy cartridge change- outs without the need of a filter wrench.
- Cartridges are sanitary in design, requiring no contact with the filter media during cartridge change-out.
- Filter cartridge:
- Incorporates carbon block filtration with a non-woven blended pleat media.
- Requires no pre-activation.
- Has o-ring seal type.
- 25 year limited warranty on stainless steel head.
- Manufactured from FDA CFR-21 compliant materials.
- System includes:
- Head assembly w/ integral mounting bracket
- Single cartridge filter
- Filter rating: 5 Mic Nominal
- Flow rate: 20 GPM
- Capacity: 100,000 gallons (approx. 1 year)
- Inlet/Outlet connections: 1" NPT
- Max operating pressure: 125 PSI @ 100 F
- Dimensions: 25 1/6" Height x 4 1/2" Diameter (additional 3" recommended for cartridge removal)
- Weight: 7.5 lbs. (3.4kg)
- Warranty: 25 Year limited
- Replacement cartridge: AP917R (5621003)
Product Details | |
---|---|
Capacity | 100,000 Gallons 12 Months |
Inlet Connection | 1" FPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 5 µm |
Min Pressure (Psi) | 25 |
Min Temp (°F) | 40 |
Outlet Connection | 1" FPT |
Size | 1" |
Cartridge Style | Quick Change |
Change Frequency | 100,000 Gallons,12 Months |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust Chlorine/Taste/Odor |
Diameter | 4-1/2" |
Flow Rate | 20 GPM |
Type | Carbon Filtration System |
Warranty & Certifications | |
Certifications | FDA CFR-21 |
Shipping Dimensions | |
Shipping Length | 28.88 in. |
Shipping Width | 6.38 in. |
Shipping Height | 6.25 in. |
Product Weight & Dimensions | |
Product Height | 6.25 in. |
Product Length | 28.88 in. |
Product Width | 6.38 in. |
Product Weight (lbs) | 9.034375 |
- 304 stainless steel head allows for "sweat in place" installation and is a non-corrosive material.
- Sanitary Quick Change (SQC) design, an industry first for this application, allows for fast and easy cartridge change- outs without the need of a filter wrench.
- Cartridges are sanitary in design, requiring no contact with the filter media during cartridge change-out.
- Filter cartridge:
- Incorporates carbon block filtration with a non-woven blended pleat media.
- Requires no pre-activation.
- Has o-ring seal type.
- 25 year limited warranty on stainless steel head.
- Manufactured from FDA CFR-21 compliant materials.
- System includes:
- Head assembly w/ integral mounting bracket
- Single cartridge filter
- Filter rating: 5 Mic Nominal
- Flow rate: 20 GPM
- Capacity: 100,000 gallons (approx. 1 year)
- Inlet/Outlet connections: 1" NPT
- Max operating pressure: 125 PSI @ 100 F
- Dimensions: 25 1/6" Height x 4 1/2" Diameter (additional 3" recommended for cartridge removal)
- Weight: 7.5 lbs. (3.4kg)
- Warranty: 25 Year limited
- Replacement cartridge: AP917R (5621003)
Product Details | |
---|---|
Capacity | 100,000 Gallons 12 Months |
Inlet Connection | 1" FPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 5 µm |
Min Pressure (Psi) | 25 |
Min Temp (°F) | 40 |
Outlet Connection | 1" FPT |
Size | 1" |
Cartridge Style | Quick Change |
Change Frequency | 100,000 Gallons,12 Months |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust Chlorine/Taste/Odor |
Diameter | 4-1/2" |
Flow Rate | 20 GPM |
Type | Carbon Filtration System |
Warranty & Certifications | |
Certifications | FDA CFR-21 |
Shipping Dimensions | |
Shipping Length | 28.88 in. |
Shipping Width | 6.38 in. |
Shipping Height | 6.25 in. |
Product Weight & Dimensions | |
Product Height | 6.25 in. |
Product Length | 28.88 in. |
Product Width | 6.38 in. |
Product Weight (lbs) | 9.034375 |
