3M Aqua-Pure AP902 High Flow SQC Sediment Filter System

Home / Water Filtration Systems / Whole House Water Filtration / 3M Aqua-Pure AP902 High Flow SQC Sediment Filter System

Part Number: 56211-01

Alt. Part Number: 70020204353

Features:

Reduces sediment for up to 100,000 gallons, while providing unrestricted flow with 1" NPT connections
304 stainless steel head allows for "sweat in place" installation and is a non-corrosive material.
Sanitary Quick Change (SQC) design, an industry first for this application, allows for fast and easy cartridge change-outs without the need of a filter wrench.
Cartridges are sanitary in design, requiring no contact with the filter media during cartridge change-out.
Filter cartridge:
Incorporates a non-woven blended pleat media.
Requires no pre-activation.
Has o-ring seal type.
25 year limited warranty on stainless steel head.
Manufactured from FDA CFR-21 compliant materials.

Specifications:

System includes:
Head assembly w/ integral mounting bracket
Single cartridge filter
Filter rating: 5 Mic Nominal
Flow rate: 20 GPM
Capacity: 100,000 gallons (approx. 1 year)
Inlet/Outlet connections: 1" NPT
Max operating pressure: 125 PSI @ 100 F
Dimensions: 25 1/6" Height x 4 1/2" Diameter (additional 3" recommended for cartridge removal)
Weight: 7 lbs. (3.2kg)
Warranty: 25 Year limited

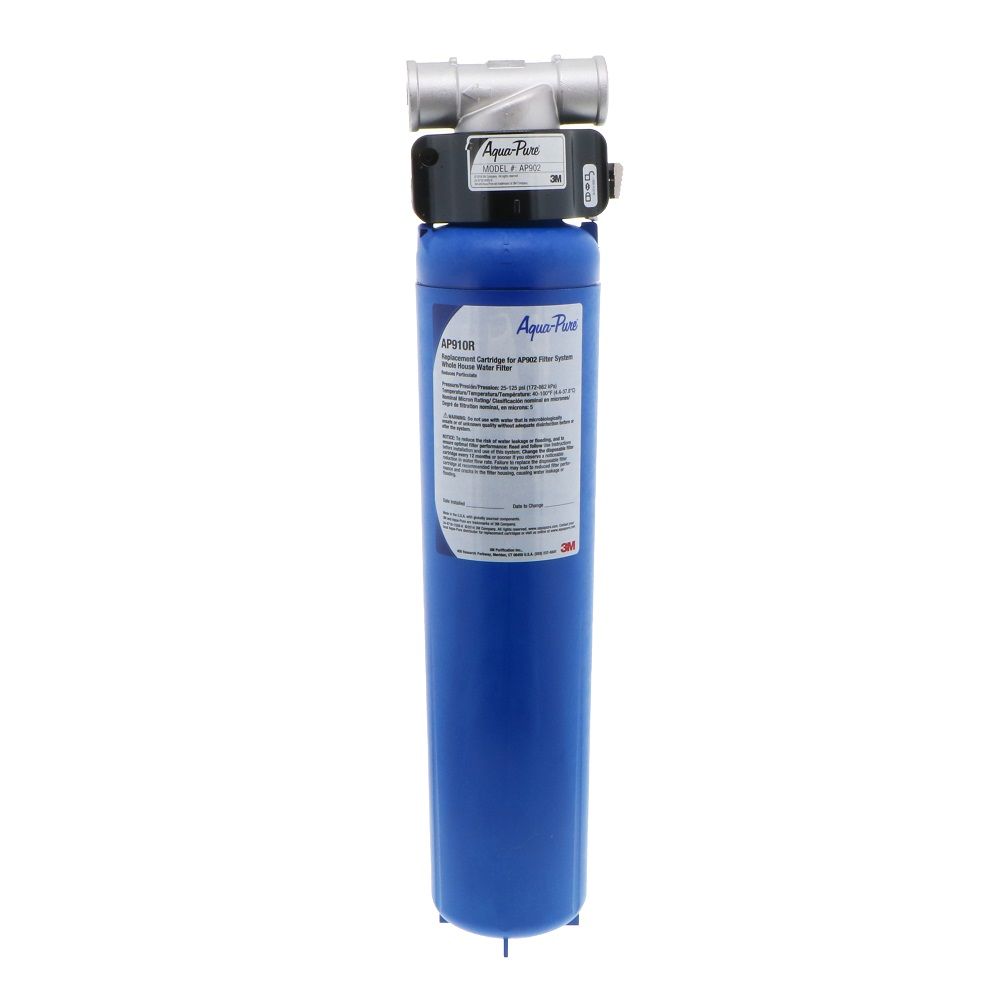

Replacement cartridge: AP910R (5621001)

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Capacity	100,000 Gallons 12 Months
Inlet Connection	1" FPT
Max Pressure (Psi)	125
Max Temp (°F)	100
Micron Rating (Nominal)	5 µm
Min Pressure (Psi)	25
Min Temp (°F)	40
Outlet Connection	1" FPT
Size	1"
Cartridge Style	Quick Change
Change Frequency	100,000 Gallons,12 Months
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2"
Flow Rate	20 GPM
Media Type	Non-Woven Polyester
Type	Sediment Filtration System
Warranty & Certifications
Product Certification Standard	FDA CFR-21
Shipping Dimensions
Shipping Length	29.25 in.
Shipping Width	6.5 in.
Shipping Height	6.25 in.
Product Weight & Dimensions
Product Height	6.25
Product Length	29.25
Product Width	6.25
Product Weight (lbs)	9.29
