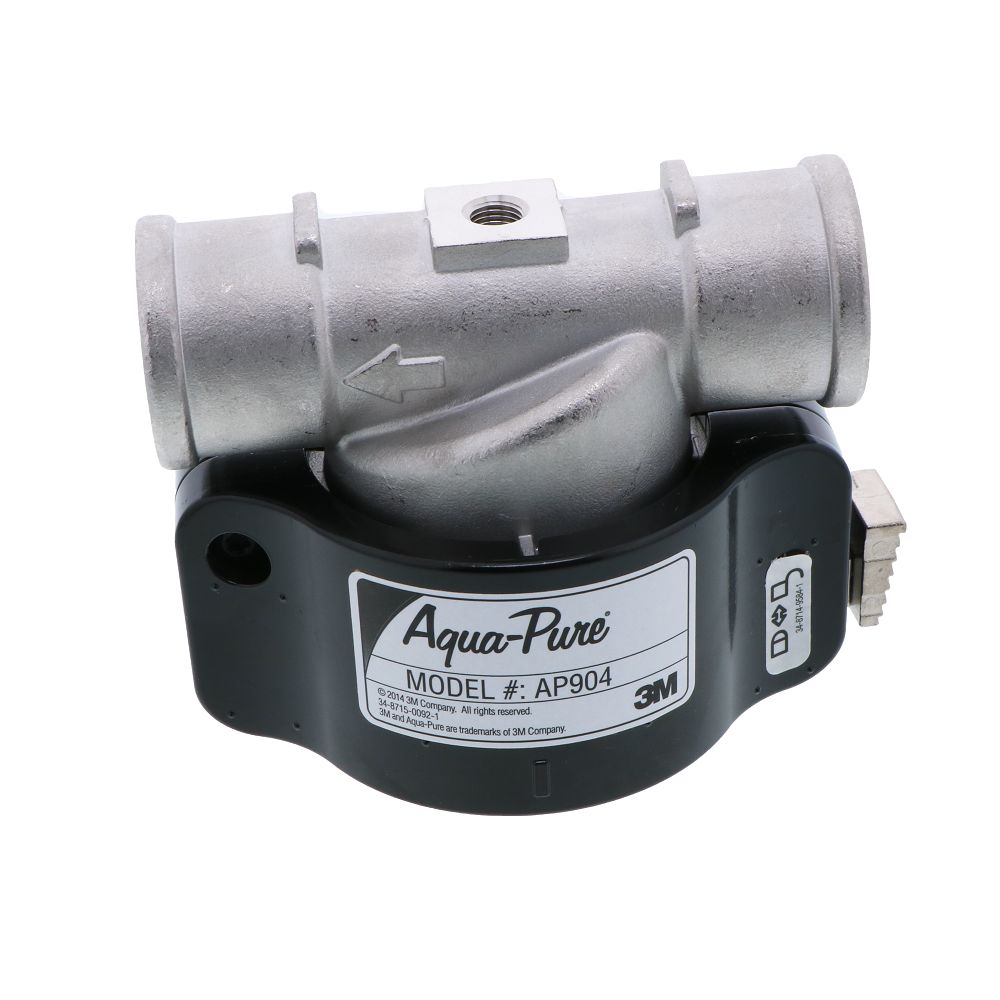

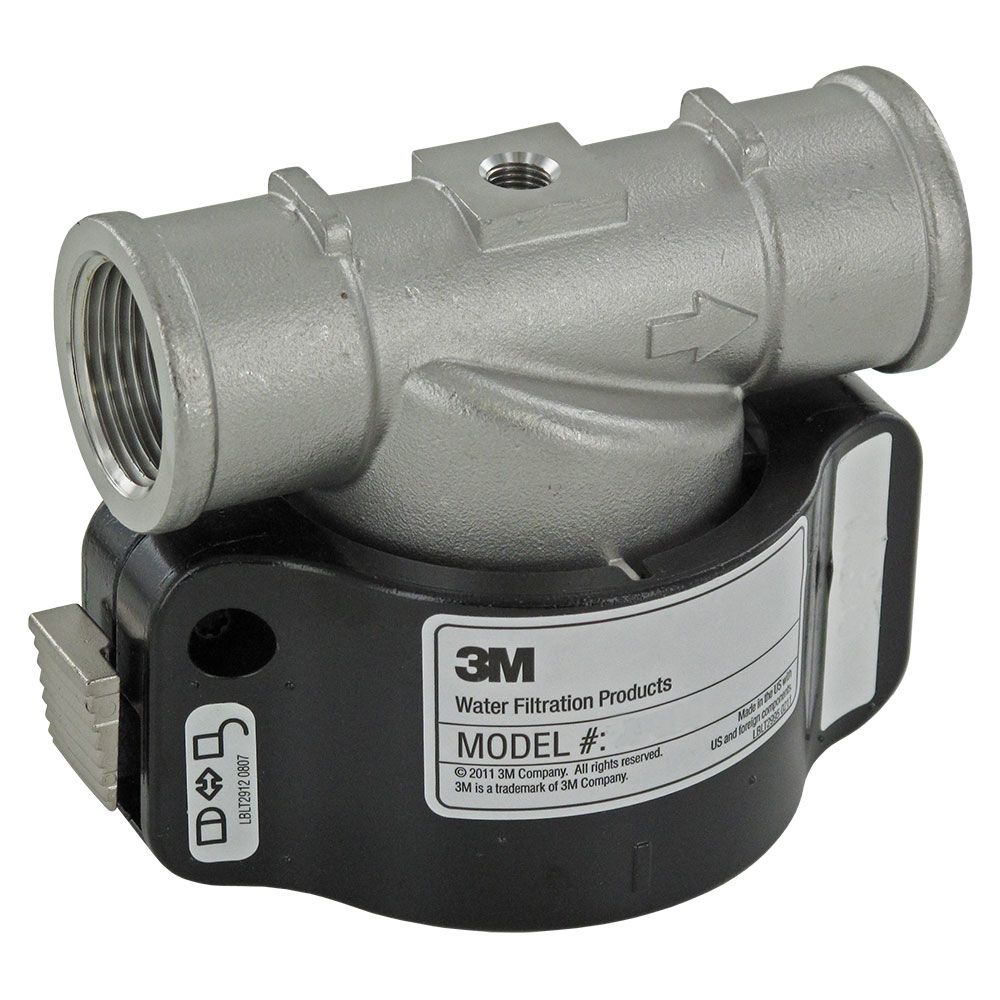

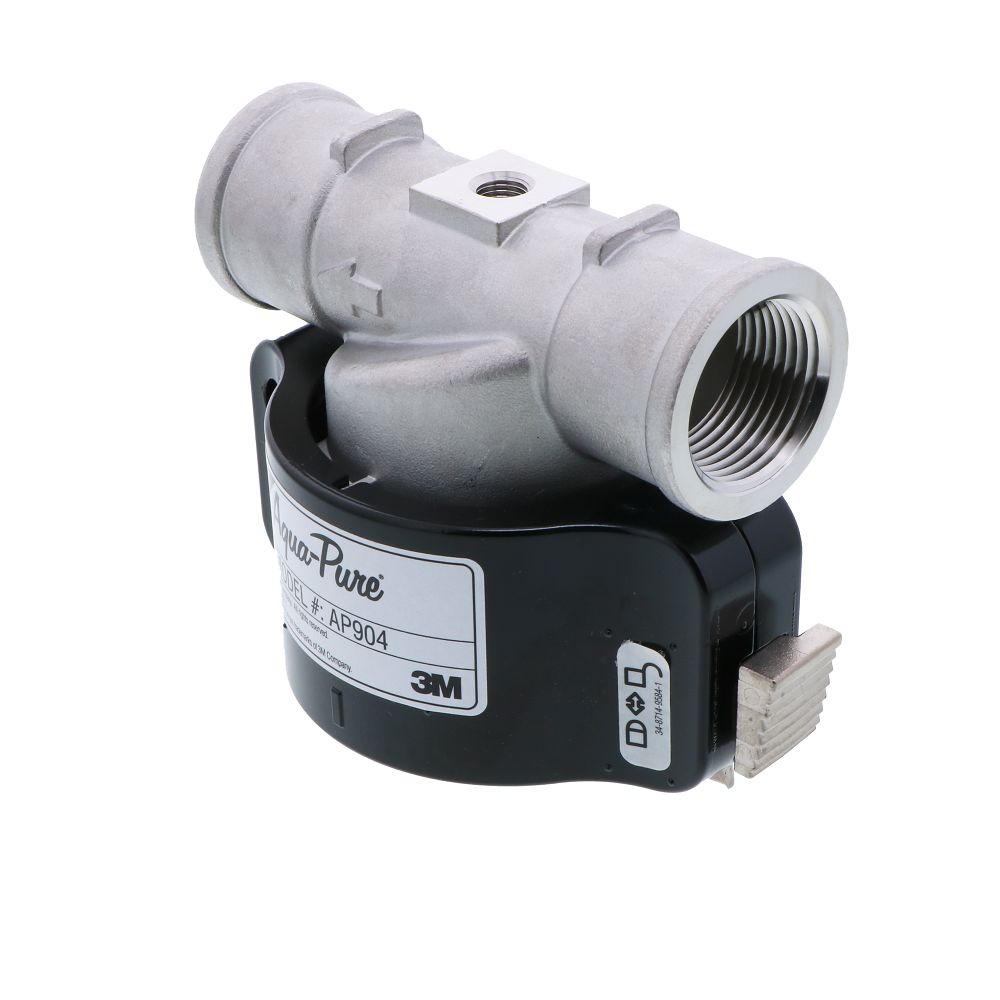

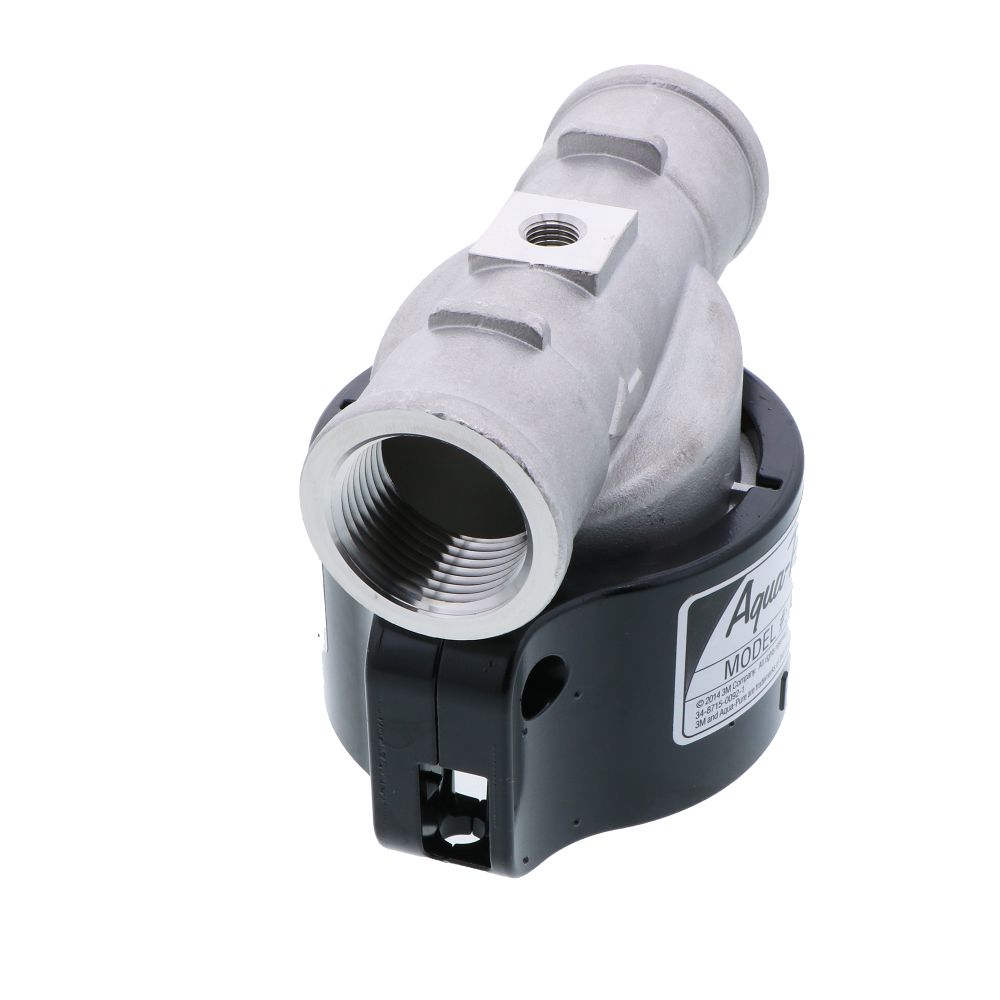

3M Aqua-Pure 6223201 Filter Head for 900 Series High Flow Systems

Part Number: 6223201

In Stock

out of stock

In Stock

$142.30


The Aqua-Pure 6223201 Head Assembly features a 304 stainless steel head with a die cast zinc anti-rotation collar and locking latch. This is the replacement head for the AP902, AP903 and AP904 High Flow Filtration Systems.

Features:
  • 304 stainless steel head allows for "sweat in place" installation and is a non-corrosive material.
  • Sanitary Quick Change (SQC) design, an industry first for this application, allows for fast and easy cartridge changes without the need for a filter wrench.
  • Inlet/Outlet connections: 1" NPT
  • Max operating pressure:  125 PSI @ 100 F
  • Weight: 4 lbs.
Compatible with replacement cartridges:
  • AP910R, 56210-01
  • AP917HD, 56210-06
  • AP917HD-S, 56210-08


Weight & Dimensions

Approx Weight

4 Lbs

Details

Inlet Size

1" NPT

Operating Pressure Range

125 PSI

Operating Temperature Range

100 Degrees Fahrenheit

Outlet Size

1" NPT




The Aqua-Pure 6223201 Head Assembly features a 304 stainless steel head with a die cast zinc anti-rotation collar and locking latch. This is the replacement head for the AP902, AP903 and AP904 High Flow Filtration Systems.

Features:
  • 304 stainless steel head allows for "sweat in place" installation and is a non-corrosive material.
  • Sanitary Quick Change (SQC) design, an industry first for this application, allows for fast and easy cartridge changes without the need for a filter wrench.
  • Inlet/Outlet connections: 1" NPT
  • Max operating pressure:  125 PSI @ 100 F
  • Weight: 4 lbs.
Compatible with replacement cartridges:
  • AP910R, 56210-01
  • AP917HD, 56210-06
  • AP917HD-S, 56210-08

Weight & Dimensions

Approx Weight

4 Lbs

Details

Inlet Size

1" NPT

Operating Pressure Range

125 PSI

Operating Temperature Range

100 Degrees Fahrenheit

Outlet Size

1" NPT
