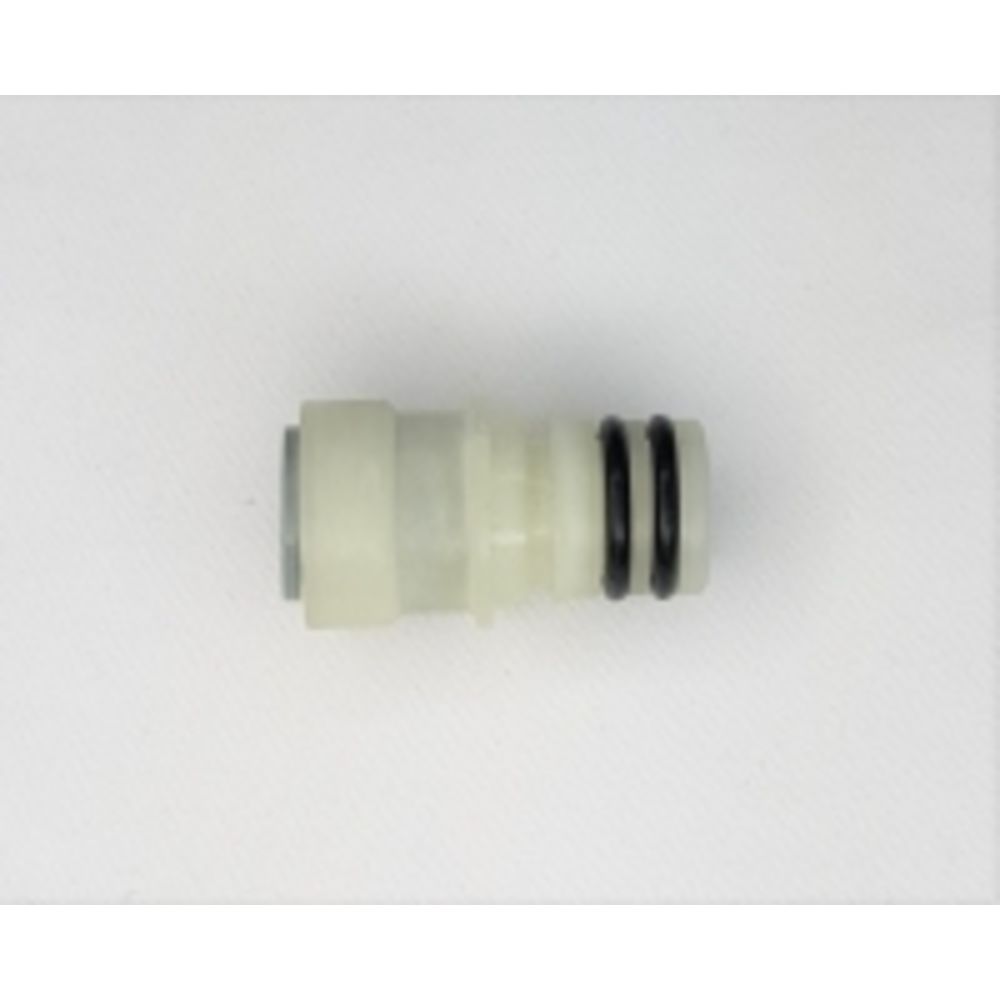

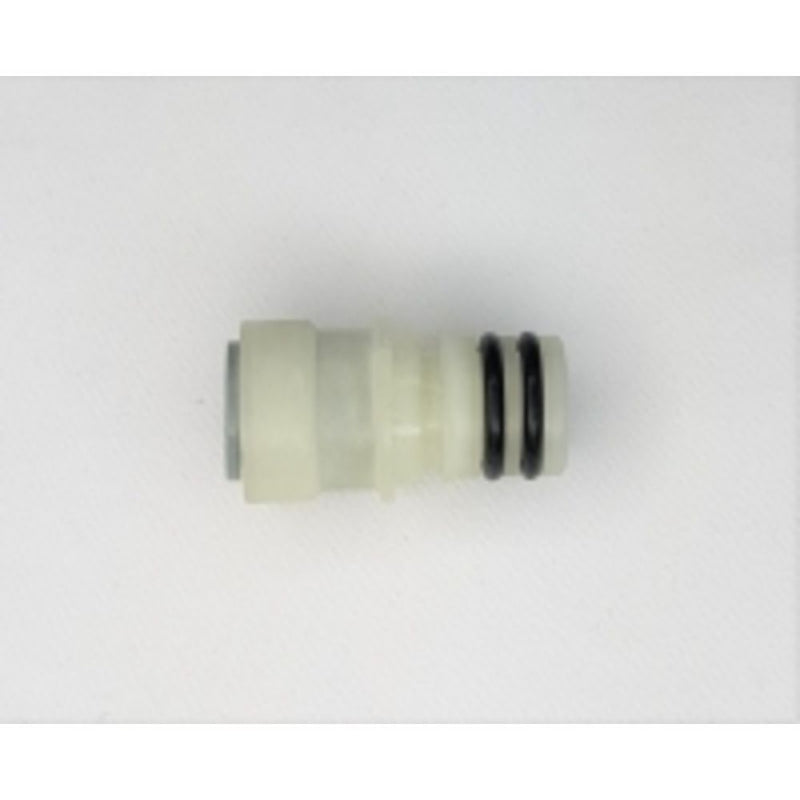

3/4 Quad Port x 1/2 OD JG Push-in Fittings

Quad Plug In Port Fittings for pumps with a 3/4" port opening that accepts Quick Disconnect (QD) style O-ringed fittings including Aquajet, Aquatec 550 Series, Jabsco (3XXX0), FloJet (04XXX) and ShurFlo. Typical port openings include a Sliding Clip to secure fittings in port. The quick connect port system makes hose removal very easy and allows fast winterizing and system draining.

Additional Specifications:

Quad Port Fittings Materials Available Upon Request: EPDM. Buna-N, and Viton

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Polypropylene
Inlet Connection	3/4" Quad Ports
O-Rings	EPDM
Outlet Connection	3/4" Quad Ports
Push-In Size	1/2" OD
Series	550
Size	3/4"
Connection Type	Quad Ports
Diameter	1/2"
Sub-Type	Straight
Type	Quad Port Fittings
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	1 in.
Shipping Height	1.75 in.
Product Weight & Dimensions
Product Weight (lbs)	0.1

Product Details
Body Material	Polypropylene
Inlet Connection	3/4" Quad Ports
O-Rings	EPDM
Outlet Connection	3/4" Quad Ports
Push-In Size	1/2" OD
Series	550
Size	3/4"
Connection Type	Quad Ports
Diameter	1/2"
Sub-Type	Straight
Type	Quad Port Fittings
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.4

Product Details
Body Material	Polypropylene
Inlet Connection	3/4" Quad Ports
O-Rings	EPDM
Outlet Connection	3/4" Quad Ports
Push-In Size	1/2" OD
Series	550
Size	3/4"
Connection Type	Quad Ports
Diameter	1/2"
Sub-Type	Straight
Type	Quad Port Fittings
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	1 in.
Shipping Height	1.75 in.
Product Weight & Dimensions
Product Weight (lbs)	0.1

3/4 Quad Port x 1/2 OD JG Push-in Fittings Manual

replacement parts
