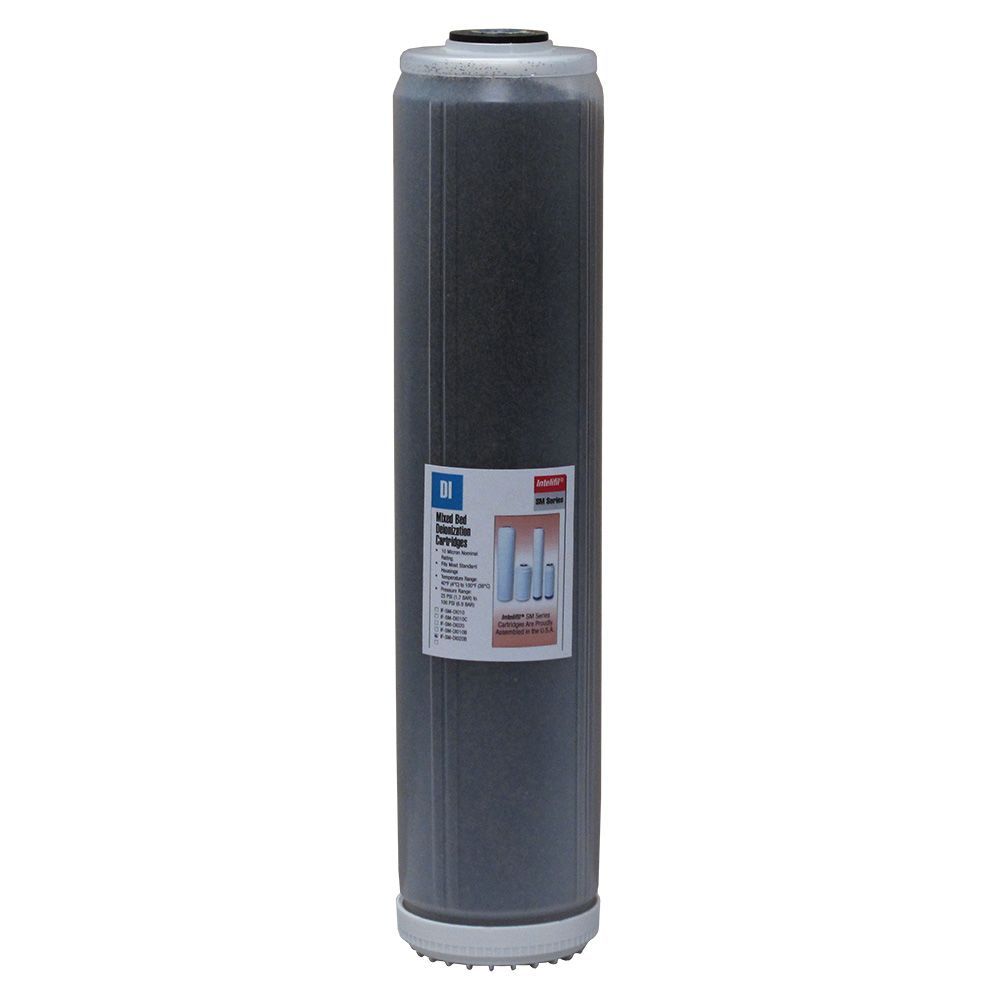

20" x 4-1/2" BB Nuclear Grade Mixed Bed DI Cartridge

Part Number: DI-MBNG-20BB

In Stock

out of stock

In Stock

$98.61 Regular price


High-capacity, nuclear grade resin cartridges are manufactured using an FDA-compliant resin that has been subjected to additional postproduction steps to minimize the total organic carbon (TOC) level. Ideal for use in pharmaceutical and medical laboratories, cosmetics, and circuit board printing applications. The Mixed Bed Deionizing cartridges are available in three sizes, flow rates and capacities. They are convenient and cost effective for many applications where low levels of total organic carbon (TOC) and total dissolved solids (TDS) are required.
Applications:
  • Circuit board printing
  • Pharmaceutical use
  • Steam and humidification
  • Cosmetics
  • Steam processors
  • Humidification systems
  • Recirculating/cooling towers
  • Power generating equipment
  • Medical/laboratory use
  • Lasers
  • Jet water sprayers
  • Boiler make-up water

Compatible with: Intelifil | IF-SM-DI020B


Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Cap Material

ABS

Capacity

2350 Grains as Calcium Carbonate; As Needed

Cartridge Style

Drop-In

Case Quantity

4

Filter Application

DeIonization (DI)

Flow Rate

0.5 (1.5 max) Gallons Per Minute

Media Type

Mixed Bed DI Resin

Micron Rating (Nominal)

10 Micron

O Rings

EPDM

Operating Pressure Range

25 - 100 PSI

Operating Temperature Range

40° / 100° (min/max) Degrees Fahrenheit

Origin

Assembled in the USA

Outer Diameter

4.5" (11.4 cm)

Typical Effluent (Resistivity)

>15 Mega Ohm
