Liquatec

20" x 4-1/2" BB Liquatec SPF Pleated - 50 mic

Part Number: SPF-45-2050

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Neo-Pure PS-45200-50 20" BB Standard Efficiency Pleated Filter 50 micron as a substitute.

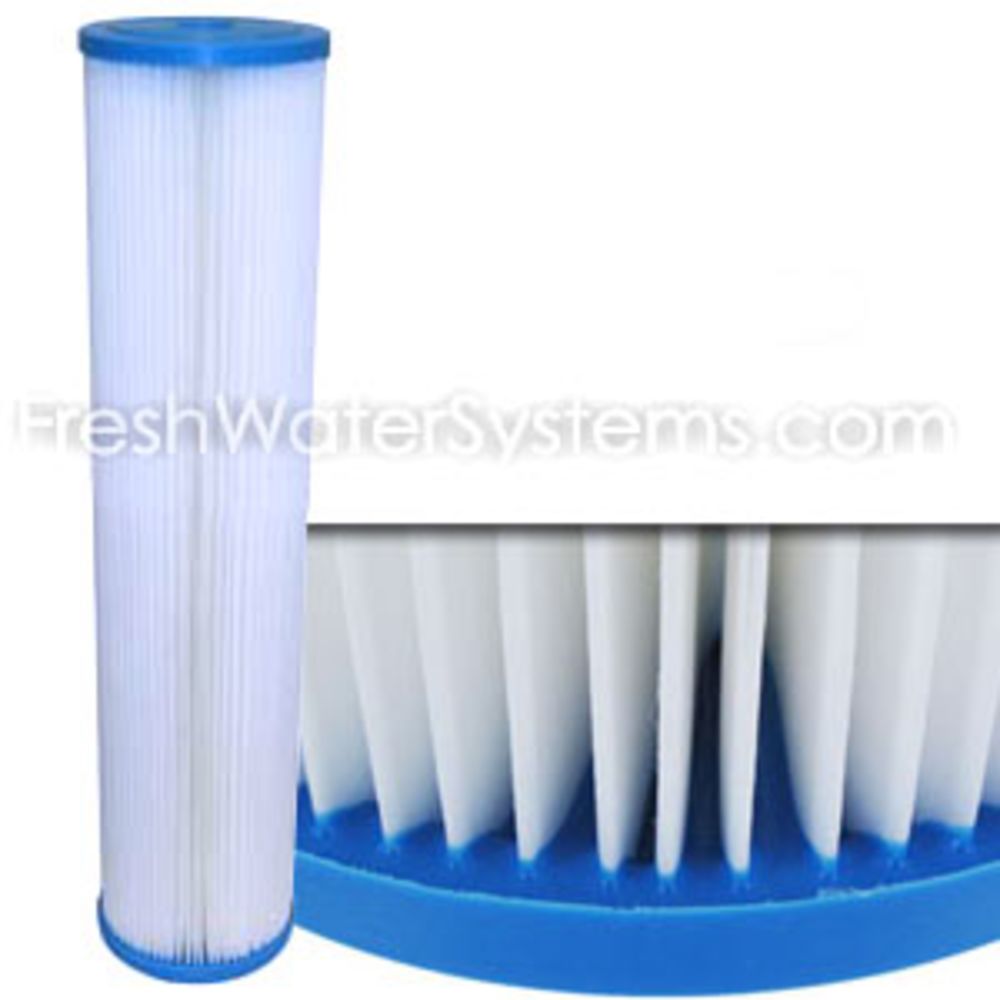

The Liquatec SPF Series Polyester Pleated filter cartridges outperform other "depth" type filter elements (wound, spun, melt blown, resin bonded) because the pleated media creates more surface area for increased dirt holding capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.
Specifications:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
  • Greater dirt holding capacity
  • Lower pressure drop
  • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket




Weight & Dimensions

Approx Length (Inches)

20"

Weight (lbs)

1.95

Details

Initial Pressure Drop

1 PSI Differential

Max Temp (°F)

125

Micron Rating (Nominal)

50 µm

Min Temp (°F)

40

Outer Diameter

4-1/2"

Change Frequency

6-12 Months

Diameter

4-1/2"

Flow Rate

10 GPM

Media Type

Non-Woven Polyester

Micron Rating

50 µm


20"





The Liquatec SPF Series Polyester Pleated filter cartridges outperform other "depth" type filter elements (wound, spun, melt blown, resin bonded) because the pleated media creates more surface area for increased dirt holding capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.
Specifications:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
  • Greater dirt holding capacity
  • Lower pressure drop
  • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket



NOTE: This item is discontinued. We recommend the Neo-Pure PS-45200-50 20" BB Standard Efficiency Pleated Filter 50 micron as a substitute.

Weight & Dimensions

Approx Length (Inches)

20"

Weight (lbs)

1.95

Details

Initial Pressure Drop

1 PSI Differential

Max Temp (°F)

125

Micron Rating (Nominal)

50 µm

Min Temp (°F)

40

Outer Diameter

4-1/2"

Change Frequency

6-12 Months

Diameter

4-1/2"

Flow Rate

10 GPM

Media Type

Non-Woven Polyester

Micron Rating

50 µm

Documentation
20"
