Liquatec

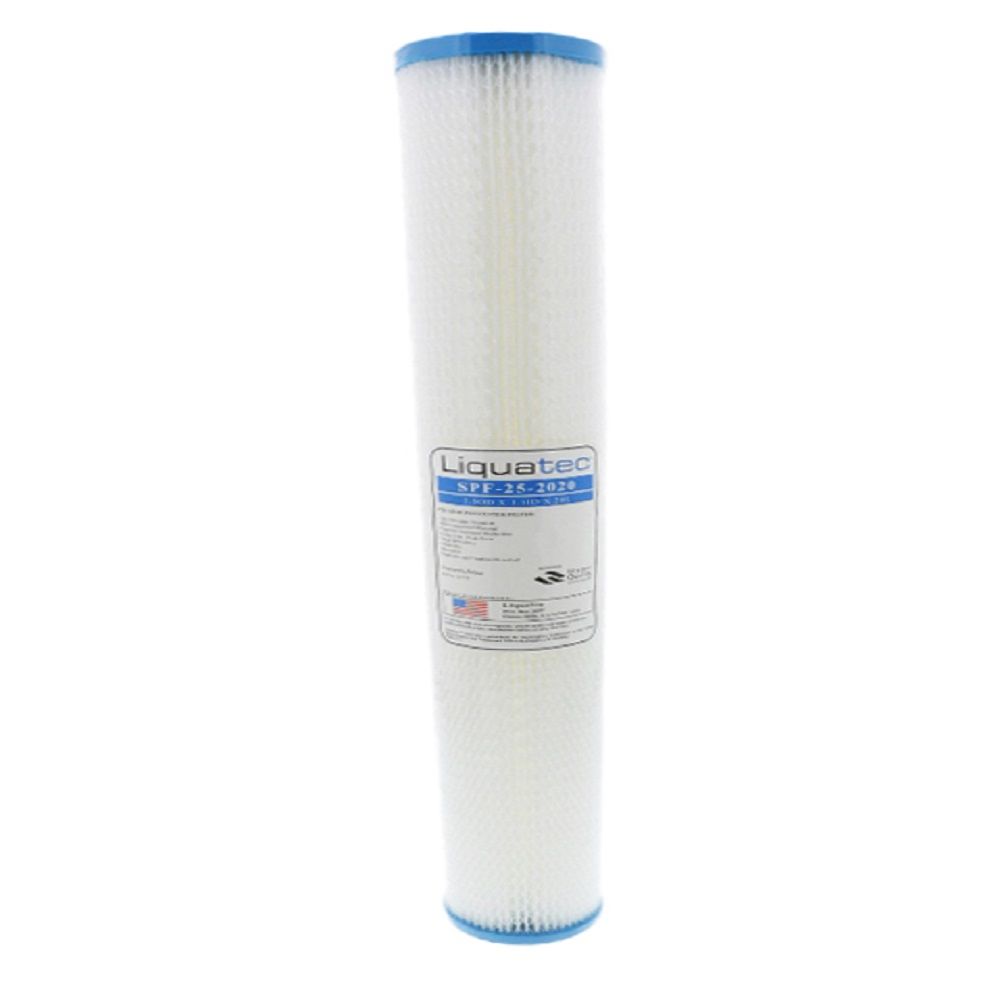

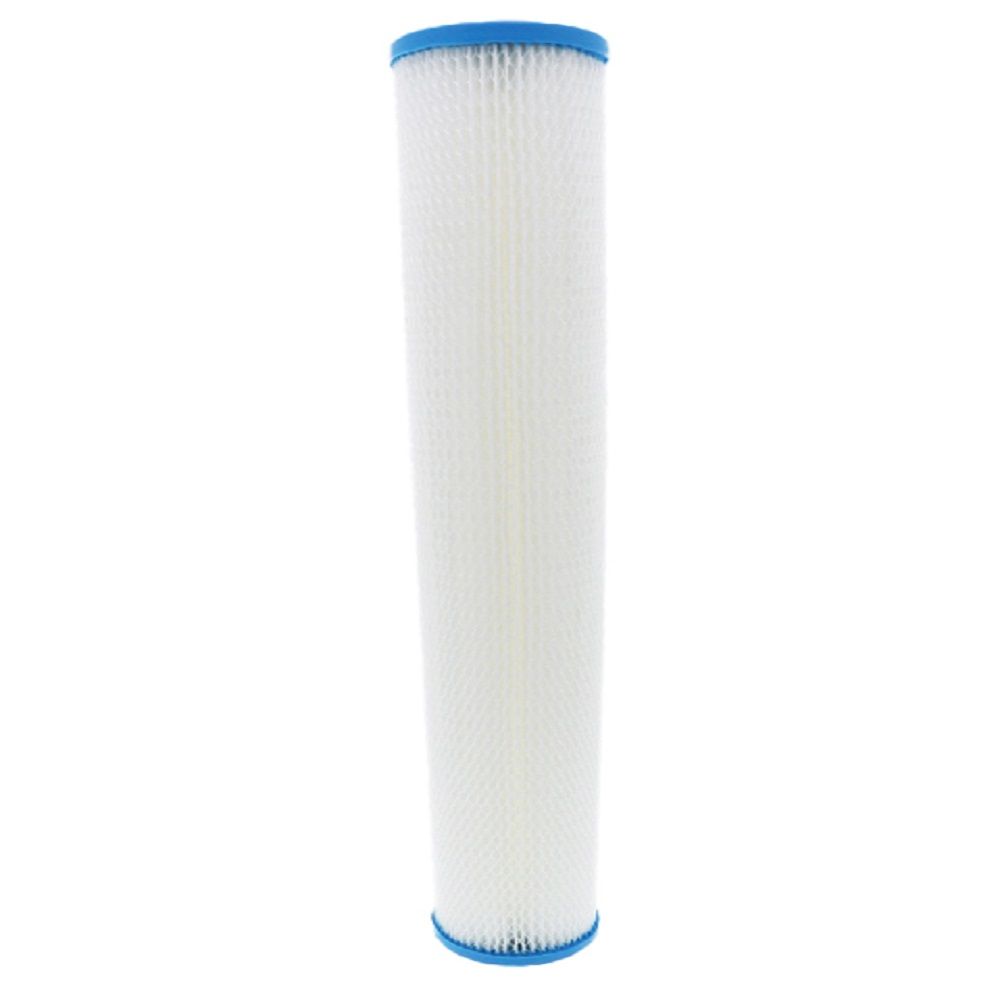

20" x 2-3/4" Liquatec SPF Pleated - 20 mic

Part Number: SPF-25-2020

In Stock

out of stock

In Stock

$9.99 Regular price $11.95 (16% Off)

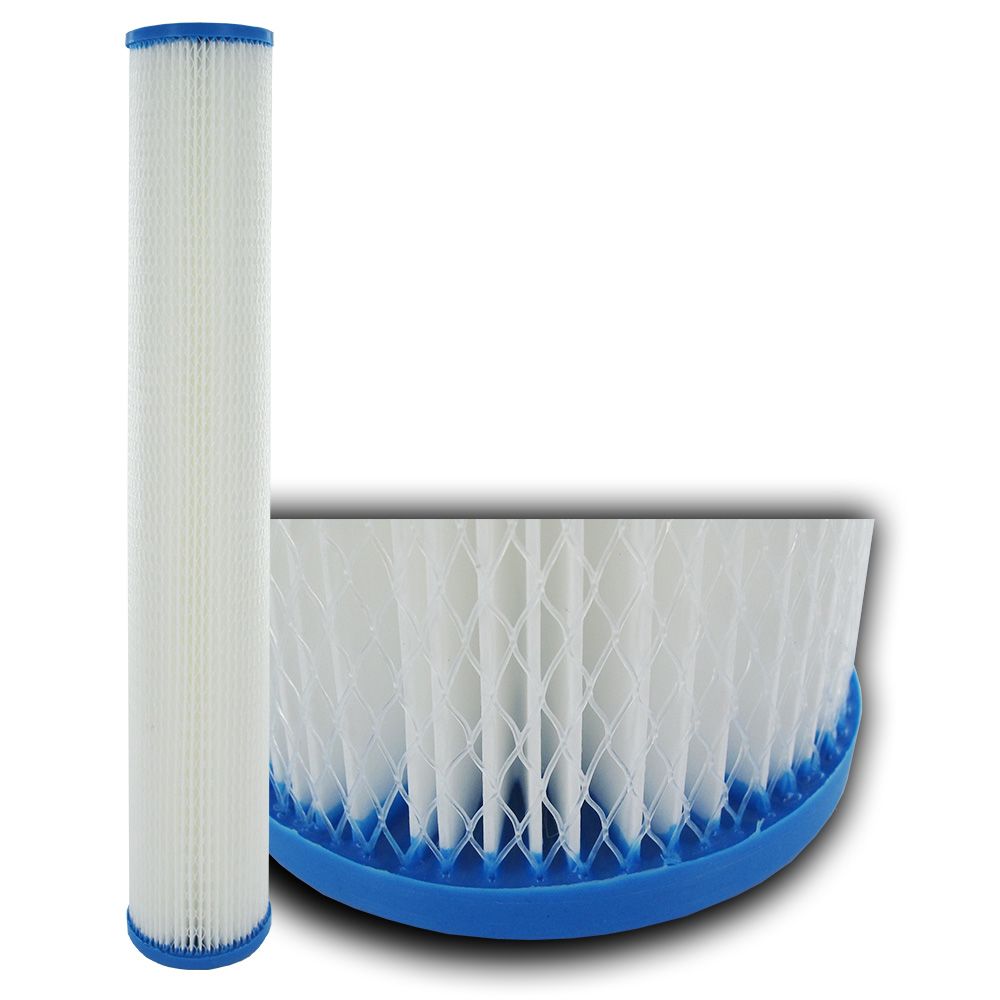

The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable. Specifications:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
  • Greater dirt holding capacity
  • Lower pressure drop
  • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket


Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

20

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Inner/Outer Wraps

Polypropylene

Media Type

Pleated Polyester

Micron Rating (Nominal)

20 Micron

Netting

Polypropylene

Operating Temperature Range

40-125 Degrees Fahrenheit

Outer Diameter

2.75"


20"





The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable. Specifications:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
  • Greater dirt holding capacity
  • Lower pressure drop
  • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

20

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Inner/Outer Wraps

Polypropylene

Media Type

Pleated Polyester

Micron Rating (Nominal)

20 Micron

Netting

Polypropylene

Operating Temperature Range

40-125 Degrees Fahrenheit

Outer Diameter

2.75"

Documentation
20"
