Features:
- Polyester media is chemical and bacteria resistant
- Cleanable (reusable) on cartridges 5 microns and up

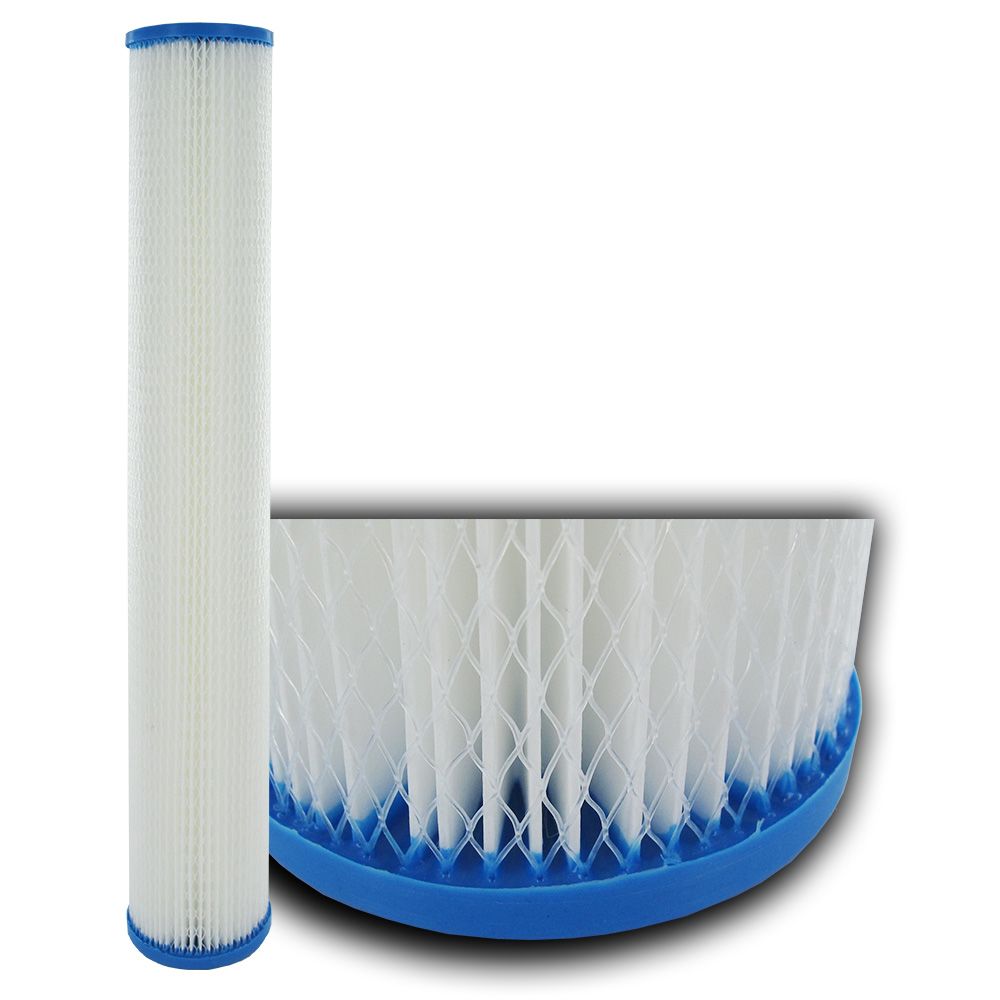

- Pleated media has more surface area providing:
- Greater dirt holding capacity
- Lower pressure drop
- Extended filter life
- Pleated media has a polypropylene core for added strength
- Vinyl plastisol ends fuse components together into a unified end cap and gasket
Weight & Dimensions
Approx Length (Inches) | 20" |
Case Quantity | 20 |
Weight (lbs) | 1.2 |
Details
Capacity | As Needed |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-In |
Core Material | Polypropylene |
End Cap Type | Double Open Ended (DOE) |
Filter Application | Sediment/Dirt/Rust |
Filter Application (New!) | Sediment/Dirt/Rust |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 10 GPM |
Initial Pressure Drop | 1 PSI Differential |
Inner/Outer Wraps | Polypropylene |
Max Temp (°F) | 125 |
Media Type | Polyester |
Micron Rating | 10 µm |
Micron Rating (Nominal) | 10 µm |
Min Temp (°F) | 40 |
Netting | Polypropylene |
Outer Diameter | 2-3/4" |
Product Length | 20" |
Psid@Flow Rate | 1 psid @ 10 GPM |
Recommended Flow Rate | 10 GPM |

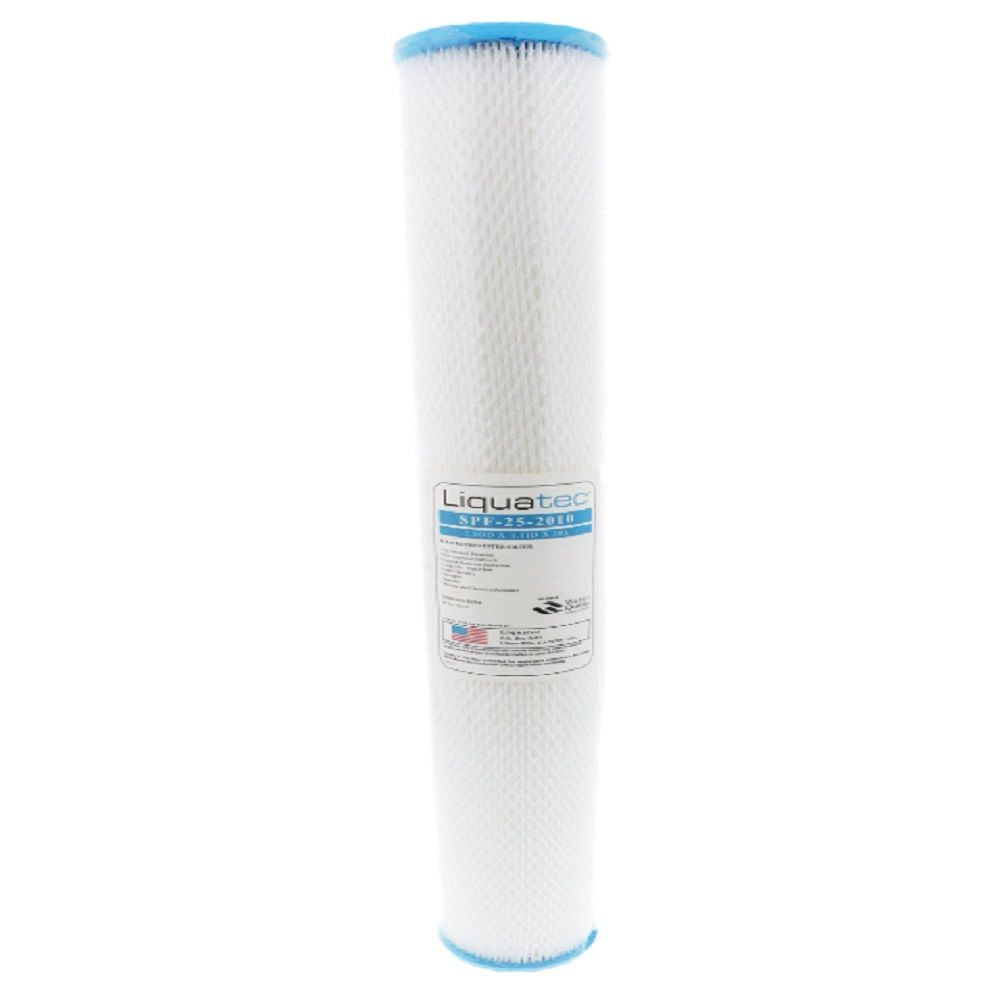

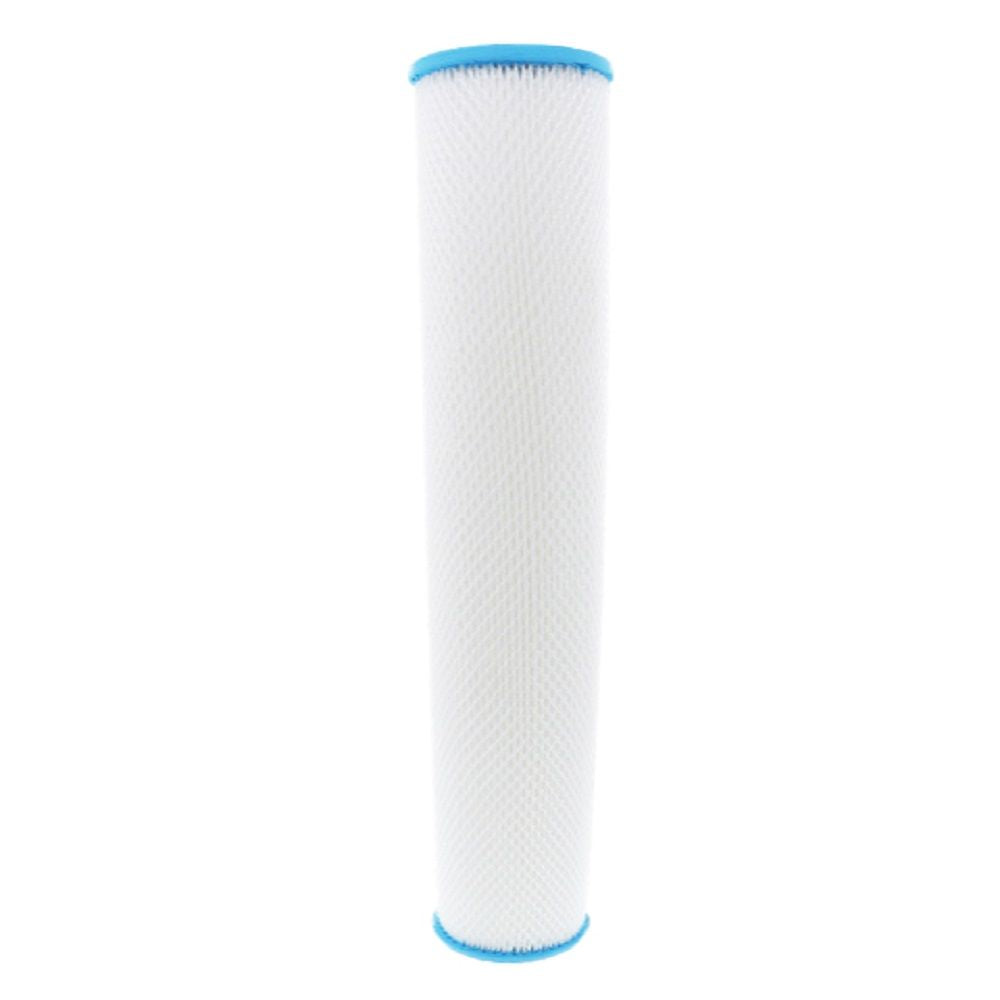

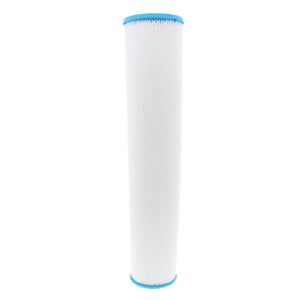

The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity. The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.
Features:
- Polyester media is chemical and bacteria resistant
- Cleanable (reusable) on cartridges 5 microns and up
- Pleated media has more surface area providing:
- Greater dirt holding capacity
- Lower pressure drop
- Extended filter life
- Pleated media has a polypropylene core for added strength
- Vinyl plastisol ends fuse components together into a unified end cap and gasket
Weight & Dimensions
Approx Length (Inches) | 20" |
Case Quantity | 20 |
Weight (lbs) | 1.2 |
Details
Capacity | As Needed |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-In |
Core Material | Polypropylene |
End Cap Type | Double Open Ended (DOE) |
Filter Application | Sediment/Dirt/Rust |
Filter Application (New!) | Sediment/Dirt/Rust |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 10 GPM |
Initial Pressure Drop | 1 PSI Differential |
Inner/Outer Wraps | Polypropylene |
Max Temp (°F) | 125 |
Media Type | Polyester |
Micron Rating | 10 µm |
Micron Rating (Nominal) | 10 µm |
Min Temp (°F) | 40 |
Netting | Polypropylene |
Outer Diameter | 2-3/4" |
Product Length | 20" |
Psid@Flow Rate | 1 psid @ 10 GPM |
Recommended Flow Rate | 10 GPM |
