Liquatec

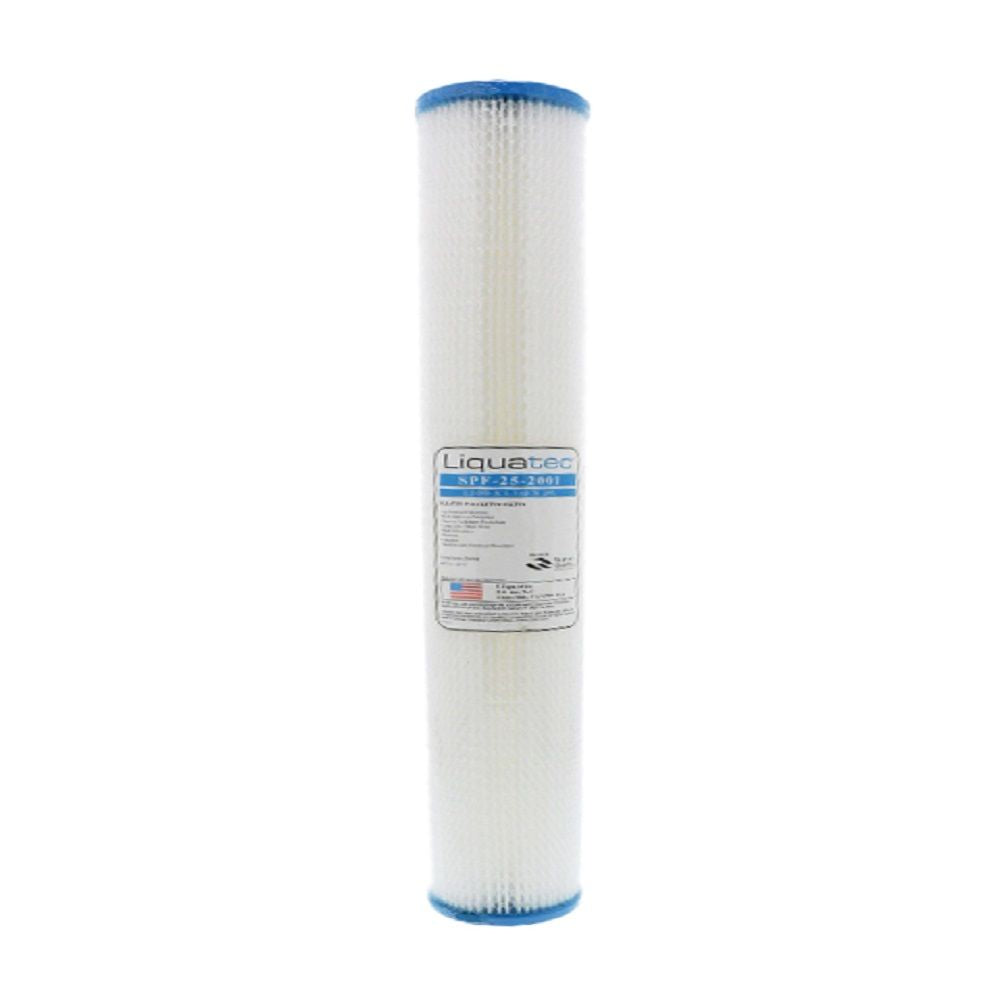

20" x 2-3/4" Liquatec SPF Pleated - 1 mic

Part Number: SPF-25-2001

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Neo-Pure PH-27200-01 20" High Efficiency Pleated Filter 1 micron as a substitute.

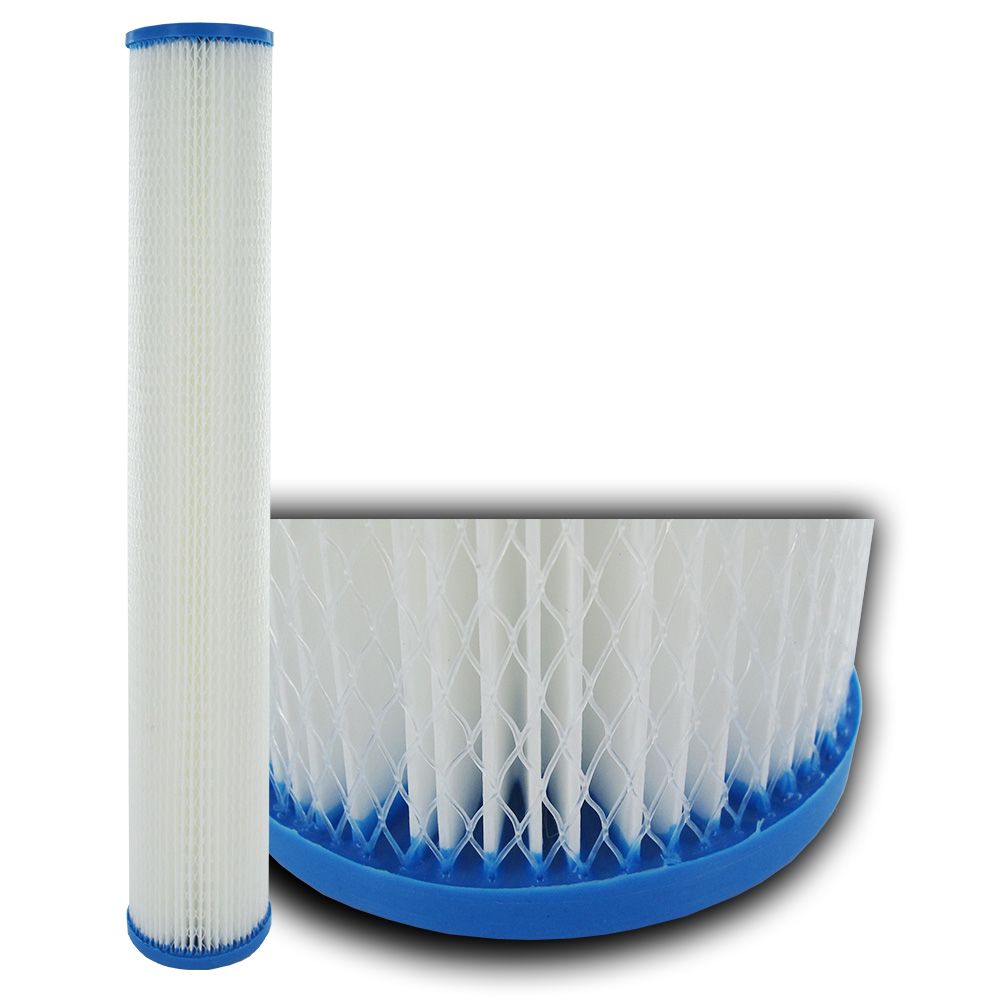

The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.
Specifications:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
  • Greater dirt holding capacity
  • Lower pressure drop
  • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket




Weight & Dimensions

Approx Length (Inches)

20"

Case Quantity

20

Weight (lbs)

1.2

Details

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

1 PSI Differential

Inner/Outer Wraps

Polypropylene

Max Temp (°F)

125

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Netting

Polypropylene

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Flow Rate

10 GPM

Media Type

Polyester

Micron Rating

1 µm

Product Length

20"


20"




The Liquatec SPF Series Polyester Pleated filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the pleated media creates more surface area for increased capacity.  The 100% polyester filter media creates additional savings with extended filter life, since cartridges 5 micron and up are cleanable.
Specifications:
  • Polyester media is chemical and bacteria resistant
  • Cleanable (reusable) on cartridges 5 microns and up
  • Pleated media has more surface area providing:
  • Greater dirt holding capacity
  • Lower pressure drop
  • Extended filter life
  • Pleated media has a polypropylene core for added strength
  • Vinyl plastisol ends fuse components together into a unified end cap and gasket



NOTE: This item is discontinued. We recommend the Neo-Pure PH-27200-01 20" High Efficiency Pleated Filter 1 micron as a substitute.
